JLS-22F Julux Air 22kw 30hp Energy Saving Screw Air Compressor

Name: JLS-22F Julux Air 22kw 30hp Energy Saving Screw Air Compressor
Brand: JULUX AIR
Availability: InStock

FOB Price

US$ 2,500 - 3,000 / Set

1 Set(Min. Order)

Port Fuzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Screw
Configuration	Stationary	Power Source	AC Power
Lubrication Style	Lubricated	Mute	Yes
Place of Origin	Fujian, China	Brand Name	JULUX AIR
Model Number	JLS-22F	Voltage	220V/380V/415V(customizable)
Dimension(LWH)	1050x780x1125mm	Weight	480KG
Certification	ISO9001-2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

JLS-22F Julux Air 22kw 30hp Energy Saving Screw Air Compressor

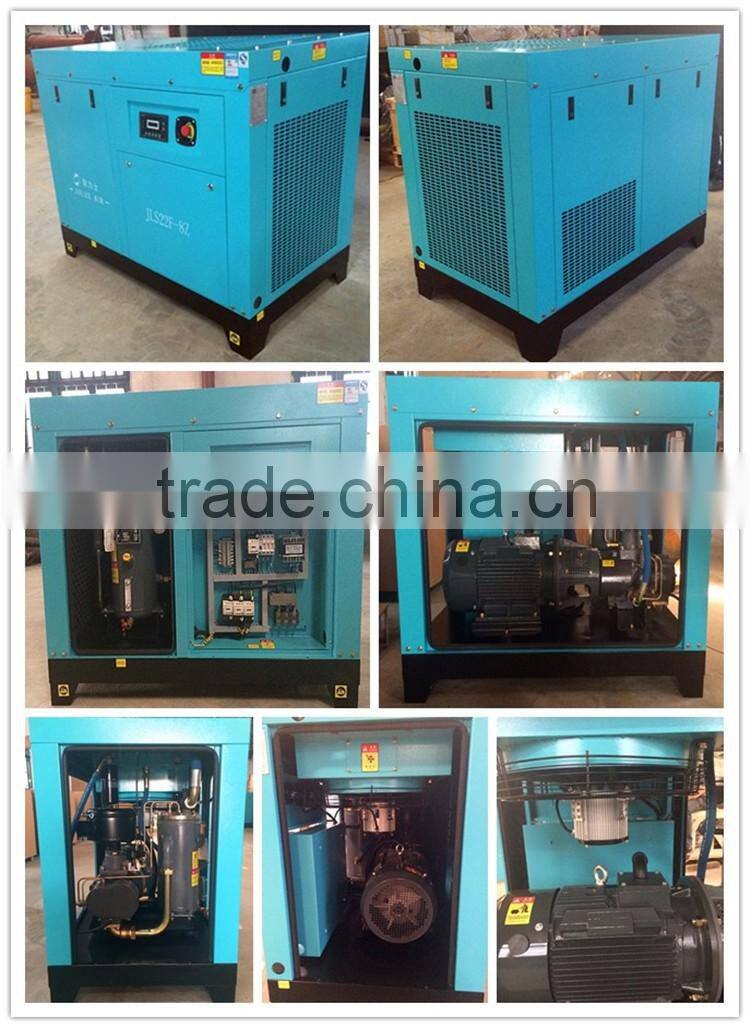

Product picture

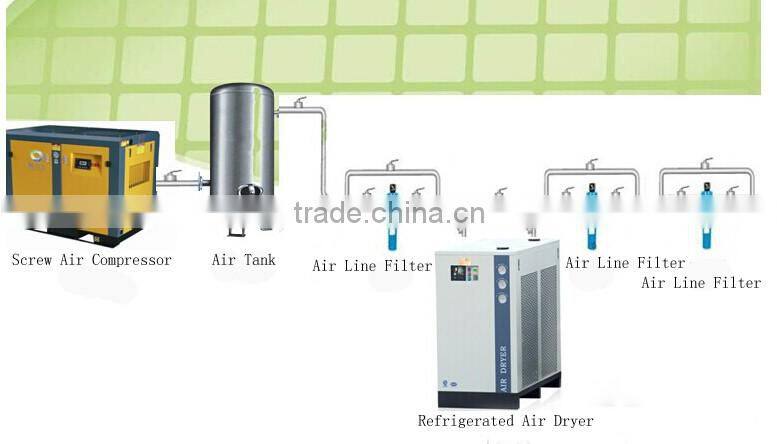

Air line system

Structure

Technical parameters sheet

Model			JLS-22F
Free Air Delivery /Discharge Pressuer(m3/min/Mpa)			3.95/0.7
			3.56/0.8
			3.12/1.0
			2.8/1.25
Electric Motor	Voltage/Frequency(V/Hz)		220V/ 380V/ 415V & 50HZ/ 60HZ
	Output(KW/HP)		22/30
	Motor speed(RPM)		2940
	Isulation Class		Class F
	Protection Class		IP 54
	Sarting Method		Y-ΔStarting / Soft starting/ Frequency conversion
Cooling Model			Air cooling
Discharge Temp(℃)			Air cooling≤ Ambient temperature+12℃; Water cooling≤38℃
Drive Method			Belt or Direct
Lubricanting Oil Capacity(L)			22
Noise(dB(A))			<66±2
Environment Temp(℃)			-5 to +45℃
Oil content of compressed air			< 2ppm
Dimension		Length(mm)	1050
		Width(mm)	780
		Height(mm)	1125
Air Outlet Pipe Diameter(inch)			G11/4"
Net Weight(kg)			480

More models

Part 1

Model

JLS-7.5F

JLS-11F

JLS -15F

JLS-18.5F

JLS-22 F/S

JLS-30 F/S

JLS-37 F/S

JLS-45 F/S

JLS-55 F/S

JLS-75 F/S

Free Air Delivery

(m³/min)
Discharge Pressuer

(Mpa)

1.4/0.7

2.03/0.7

2.6/0.7

3.2/0.7

3.95/0.7

5.25/0.7

6.82/0.7

8.03/0.7

10.8/0.7

14.1/0.7

1.3/0.8

1.81/0.8

2.4/0.8

2.92/0.8

3.8/0.8

5.06/0.8

6.46/0.8

7.61/0.8

10.2/0.8

13.3/0.8

1.1/1.0

1.51/1.0

2.0/1.0

2.65/1.0

3.2/1.0

4.53/1.0

5.83/1.0

7.0/1.0

9.0/1.0

11.6/1.0

1.0/1.25

1.2/1.25

1.7/1.25

2.1/1.25

2.8/1.25

3.9/1.25

5.06/1.25

6.1/1.25

8.4/1.25

10.0/1.25

Motor

Voltage/Frequency

V/Hz

220V/ 380V/ 415V & 50HZ/ 60HZ

Power

KW/HP

7.5/10

11./15

15/20

18.5/25

22/30

30/40

37/50

45/60

55/75

75/10

Motorspeed

RPM

2930

2940

2950

297

Sarting Method

Y-ΔStarting / Soft starting/ Frequency conversion

Cooling Mode

Air cooling

Air/water cooling

Discharge Temp

°C

Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C

Noise

dB(A)

<68±2

<70±2

<75 ±2

Oil content of compressed air

< 2ppm

Dimension

Length

750

945

1050

1120

1170

1220

1500

1950

Width

730

706

780

800

880

915

1150

1450

Height

840

1125

1200

1350

1450

1580

1500

Air Outlet Pipe Diameter

inch

G3/4

G1"

G1 1/4"

G1 1/2"

DN50

Cooling Water Pipe Diameter

m³/h

5.0

6.8

Net Weight

220

260

290

460

480

550

650

700

1180

1350

Part 2

Model

JLS-90F/S

JLS-110F/S

JLS-132F/S

JLS-160F/S

JLS-185F/S

JLS-200F/S

JLS-220F/S

JLS-250F/S

Free Air Delivery

(m³/min)
Discharge Pressuer

(Mpa)

17.2/0.7

21.6/0.7

25.6/0.7

30.0/0.7

34.2/0.7

38.6/0.7

42.8/0.7

45.0/0.7

16.5/0.8

20.6/0.8

24.0/0.8

29.0/0.8

33.0/0.8

37.4/0.8

40.0/0.8

43.1/0.8

15.0/1.0

19.0/1.0

22.0/1.0

26.2/1.0

30.0/1.0

34.0/1.0

36.5/1.0

39.5/1.0

13.2/1.25

17.5/1.25

19.0/1.25

24.5/1.25

28.0/1.25

32.0/1.25

34.0/1.25

36.3/1.25

Motor

Voltage/Prequency

V/Hz

220V/ 380V/ 415V & 50HZ/ 60HZ

Power

KW/HP

90/125

110/150

132/180

160/220

185/250

200/270

220/300

250/340

Motor speed

RPM

2970

2980

Sarting Method

Y-ΔStarting / Soft Starting/ Prequency conversion

Cooling Model

Air / water cooling

Discharge Temp

°C

Air cooling≤ Ambient temperature+12°C; Water cooling≤38°C

Noise

dB(A)

<75±2

<78±2

Oil content of compressed air

< 2ppm

Dimension

Length

2000

2300

2600

2800

Width

1450

1700

1750

2000

Height

1500

1610

1910

2000

Air Outlet Pipe Diameter

inch

DN50

DN65

DN80

DN100

Cooling Water Pipe Diameter

m³/h

8.0

10.0

12.0

14.5

16.8

18.0

20.0

23.0

Net Weight

1450

1950

2200

2650

3800

4100

4500

4550

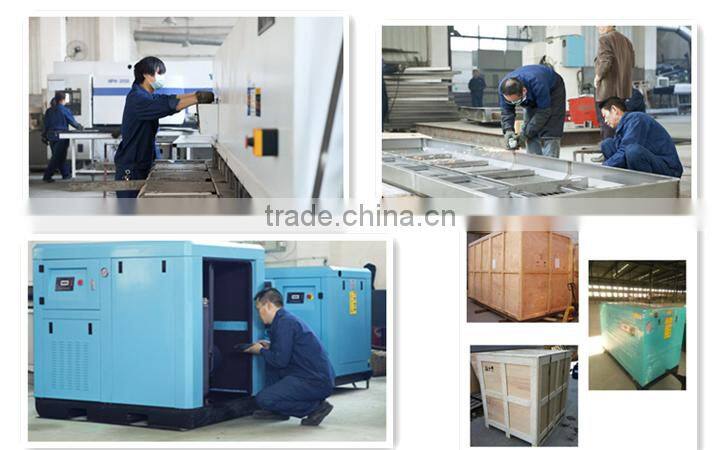

We are focus on details

Certification

Why Choose Us?

1. We supply good quality compressor with reasonable price.

2. We make the canopy by ourself, so we can produce the design according to your requirment easily.

3. We are professional because we only produce screw air compressor.

4. We are exactly manufacturer, we have our own export licence.

FAQ

Q1: How to choose a suitable air compressor?

1. How about your air delivery capacity ( Unit:CFM or M3/Min )?

2 What is your working pressure ( Unit:PSI, Bar or Mpa )?

3.What is your voltage ( V/Hz )?

4.Do you need any after processing ( Such as Air Tank, Filter and Air Dryer )?

Tell us the answer,we will offer scheme for you!

Q2: About general unit conversion:

1bar = 0.1Mpa = 14.5psi 1m³/min = 35.32cfm 1KW = 1.34HP

Q3: Are you factory or trade company?

We are factory. Our factory is located in Building 1, No.100 Wucuo Industry Park, Luozhou Town, Cangshan District, Fuzhou city, Fujian province, China.

Q4: Which trade term can you accept?

Available trade terms: FOB, CIF, CFR, EXW, etc.

Q5: How long will you take to arrange production?

We will delivery about 25 days.
