Home > Products > Direct Driven Screw Air Compressor > 15kw 20hp 2.6m3/min 7 Bar Super Silent Competitive Price Industrial Screw Air Compressor
15kw 20hp 2.6m3/min 7 Bar Super Silent Competitive Price Industrial Screw Air Compressor
- Fuzhou
- Credit Card
You May Like
-
JLS-55F Julux Air 55kw 75hp Energy Saving Screw Air Compressor
-
JLS-37F Julux Air 37kw 50hp Energy Saving Screw Air Compressor
-
JLS-15F Julux Air 15kw 20hp Energy Saving Screw Air Compressor
-
22 kw 220/380 V Used Industrial Portable Rotary ac 1.5 Ton Screw Air Compressor Price
-
22kw 30hp Air Cooled Most Competitive Price Screw Air Compressor For Sand Blasting
-
22kw 30hp 7-12.5 Bar Stationary Air Cooled Most Competitive Price Screw Air Compressor
Product Details
| Condition | New | Type | Other, Screw, cheap rotary screw air compressor | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Lubricated | Mute | Yes | |
| Place of Origin | Fujian, China | Brand Name | JULUX AIR | |
| Model Number | JLS -15F | Voltage | 220V/380V/415V(customizable) | |
| Dimension(L*W*H) | 945x706x1125 mm | Weight | 290KG | |
| Certification | ISO9001-2008 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
15kw 20hp 2.6m3/min 7 bar super silent competitive price industrial screw air compressor
Product picture
Air line system
Technical parameters sheet
| Model | JLS-15F | ||||
Free Air Delivery /Discharge Pressuer(m3/min/Mpa) | 2.6/0.7 | ||||
| 2.4/0.8 | |||||
| 2.0/1.0 | |||||
| 1.7/1.25 | |||||
| Electric Motor | Voltage/Frequency(V/Hz) | 220V/ 380V/ 415V & 50HZ/ 60HZ | |||
| Output(KW/HP) | 15/20 | ||||
| Motor speed(RPM) | 2930 | ||||
| Isulation Class | Class F | ||||
| Protection Class | IP 54 | ||||
| Sarting Method | Y-ΔStarting / Soft starting/ Frequency conversion | ||||
| Cooling Model | Air cooling | ||||
| Discharge Temp(℃) | Air cooling≤ Ambient temperature+12℃; Water cooling≤38℃ | ||||
| Drive Method | Belt or Direct | ||||
| Lubricanting Oil Capacity(L) | 16 | ||||
| Noise(dB(A)) | <66±2 | ||||
| Environment Temp(℃) | -5 to +45℃ | ||||
| Oil content of compressed air | < 2ppm | ||||
Dimension | Length(mm) | 945 | |||
| Width(mm) | 706 | ||||
| Height(mm) | 1125 | ||||
| Air Outlet Pipe Diameter(inch) | G1" | ||||
| Net Weight(kg) | 290 | ||||

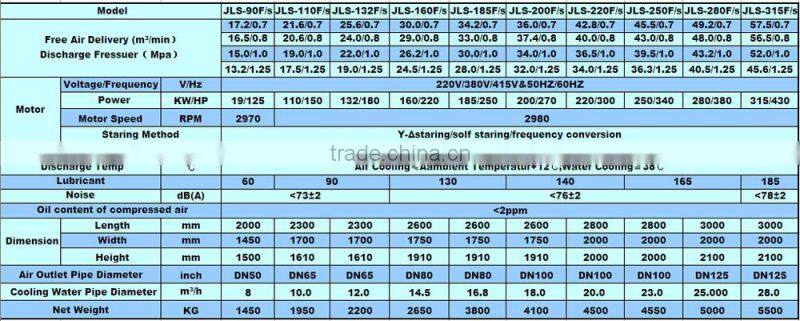

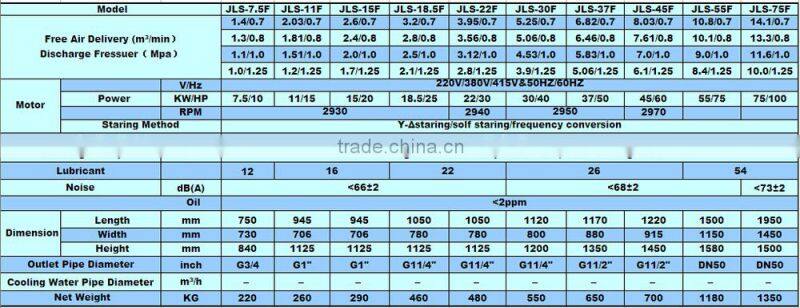

More models

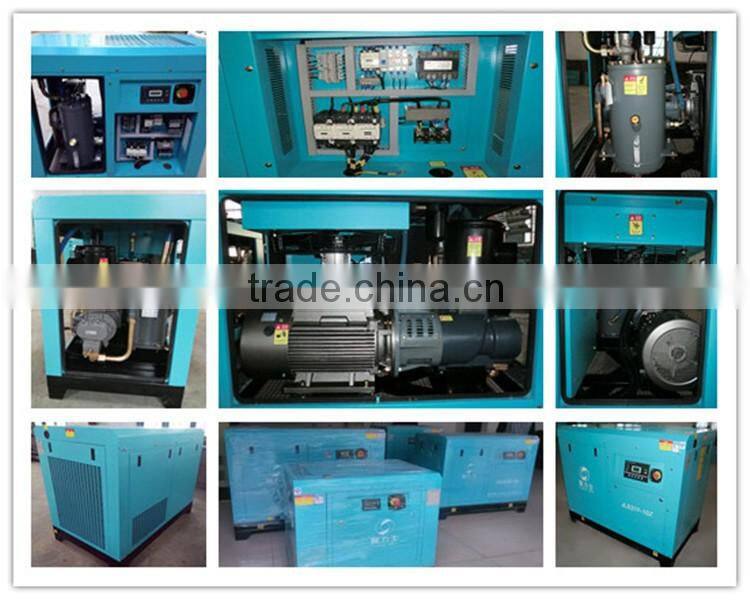

We are focus on every details
Certification

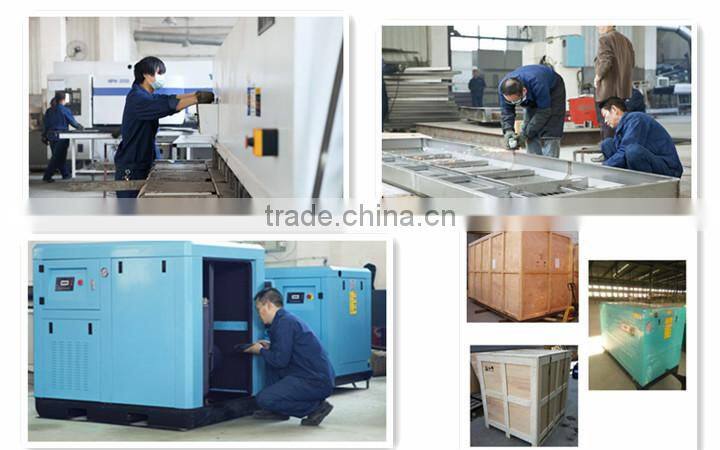

About us
Why Choose Us?
1. We supply good quality compressor with reasonable price.
2. We make the canopy by ourself, so we can produce the design according to your requirment easily.
3. We are professional because we only produce screw air compressor.
4. We are exactly manufacturer, we have our own export licence.
FAQ
Q1: How to choose a suitable air compressor?
1. How about your air delivery capacity ( Unit:CFM or M3/Min )?
2 What is your working pressure ( Unit:PSI, Bar or Mpa )?
3.What is your voltage ( V/Hz )?
4.Do you need any after processing ( Such as Air Tank, Filter and Air Dryer )?
Tell us the answer,we will offer scheme for you!
Q2: About general unit conversion:
1bar = 0.1Mpa = 14.5psi 1m³/min = 35.32cfm 1KW = 1.34HP
Q3: Are you factory or trade company?
We are factory. Our factory is located in Building 1, No.100 Wucuo Industry Park, Luozhou Town, Cangshan District, Fuzhou city, Fujian province, China.
Q4: Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, etc.
Q5: How long will you take to arrange production?
We will delivery about 25 days.
