CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW

CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-1
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-2
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-3
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-4
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-5
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW thumbnail-6
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-1
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-2

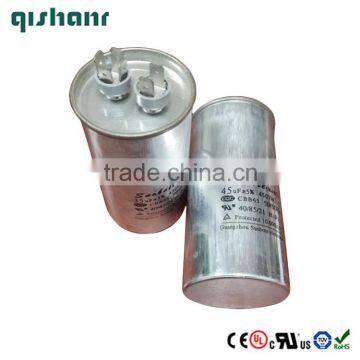

CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-3

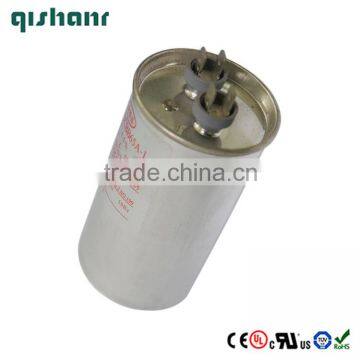

CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-4
CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-5

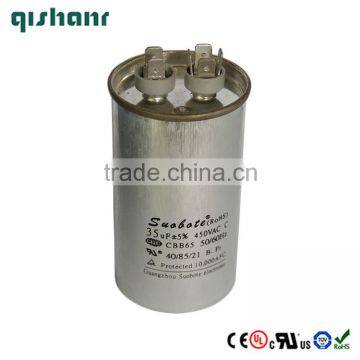

CBB65 450VAC 30uF 50/60Hz Air Conditioner Appliance Motor Run Capacitor NEW photo-6
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SUOBOTE
Model Number:
CBB65
Contact Supplier Request Quote Chat Now
Guangzhou Qilin Environmental Technology Firm
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name SUOBOTE
Model Number CBB65
Type Polypropylene Film Capacitor
Application Other, air-conditioners, refrigerators, generators, illuminating lamps
Package Type Surface Mount
Capacitance 20uF
Rated Voltage 450VAC 50/60Hz
Operating Temperature 40/70/21 40/85/21
Product Description

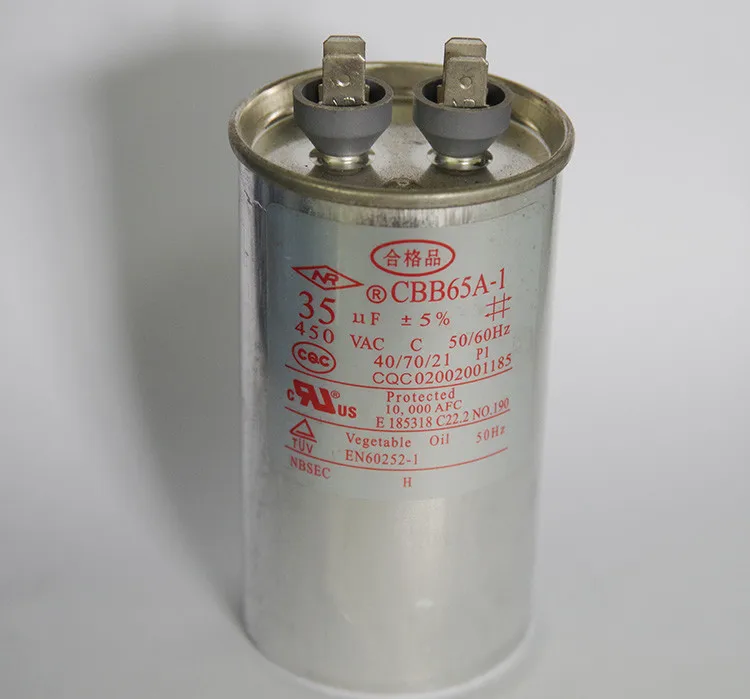

CBB65 Metallized polypropylene film dielectric ac capacitors (round)

1)The product has low loss, high insulation resistance, good self-healing properties;
2)Stable, resistant to impact current, overload capacity and other characteristics;
3)Is equipped with an internal explosion devices, use of safe and reliable3. Is equipped with an internal explosion devices, use of safe and reliable;
4)It is widely used for air-conditioners, refrigerators, generators, illuminating lamps, etc.

Technical Data

Technical data and performance indicators:

1)Detailed specification: GB/T3667.1-2005 ; IEC252;
2)Climatic category: 40/085/21 ; 40/070/21
3)Frequency: 50/60Hz ;
4)Capacitance tolerance: ± 5%;
5)Leads to the head and shell: ≥ 1000 MΩ;
6)Loss tangent: tg6≤ 0.002 （100Hz）
7)Test voltage: the first between the leads: 2 UR, 60s no breakdown, leads to the head and shell 2000 VAC, 60s no breakdown;
8)Security level: P2;
9)Certification: CQC, TUV, CE, UL.

Overall Size

Rated capacity
(uF)
Rated voltage (VAC)
250VAC~300VAC
400 VAC~500 VAC
Ø D*H
L
Ø D*H
L
5
40*55




16
40*55


16
10
40*55
40*65
15
40*65
40*75
20
40*65
40*65


18-20
25
40*75
45*90
30
40*75
45*100
35
40*75







18-20
50*85







18-20
40
40*75
50*100
45
40*85
50*110
50
40*75
50*110
60
40*85
50*125
69
40*100
55*110
70
40*100
55*125
80
40*100
55*135
90
40*100
55*135
100
4*125
55*135

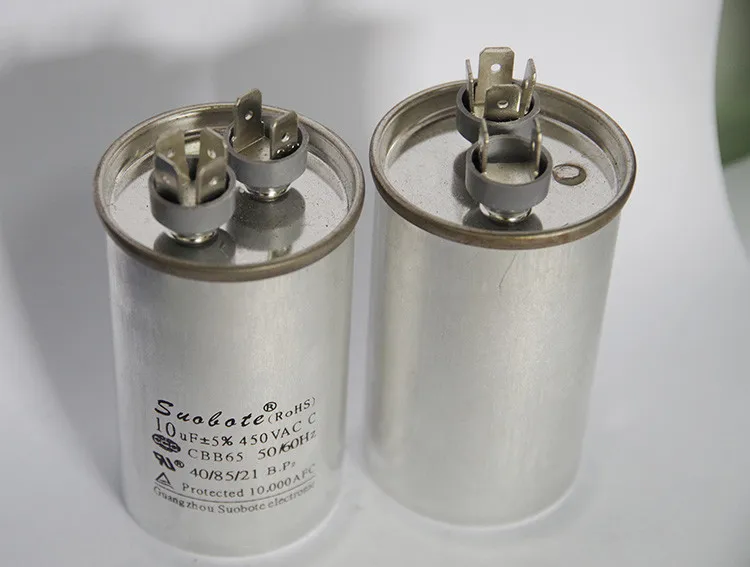

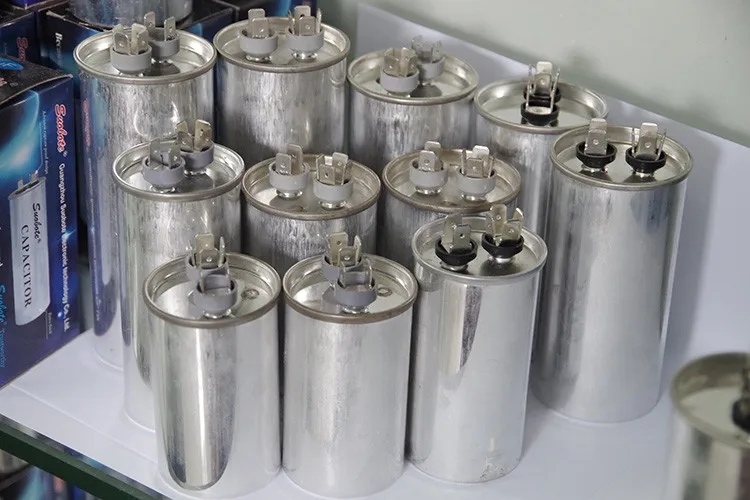

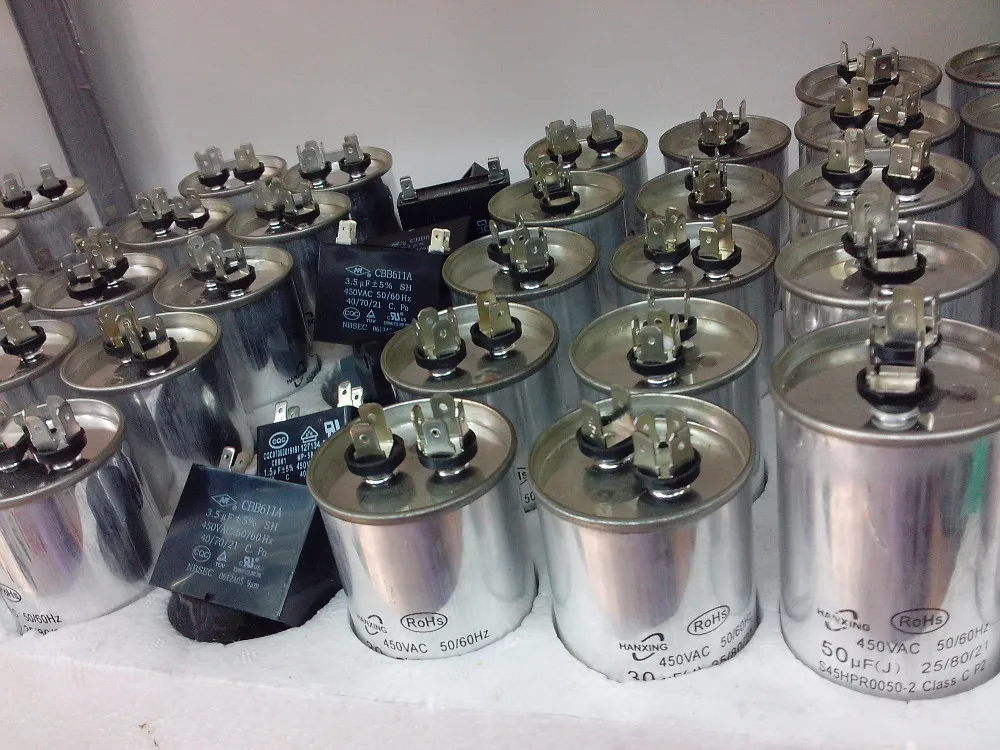

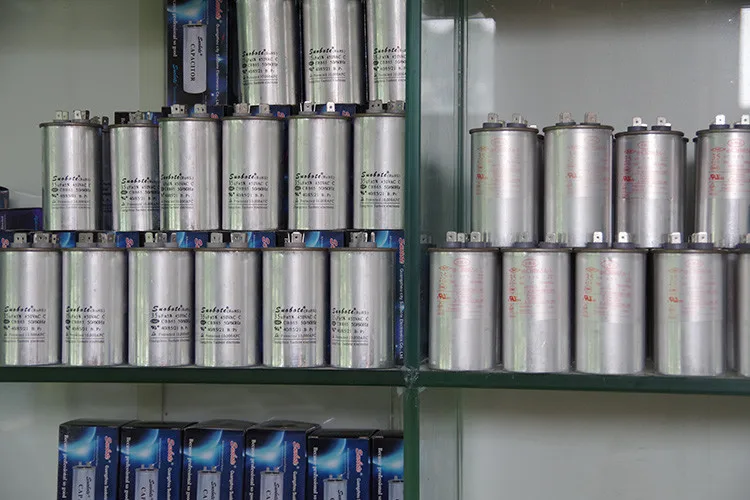

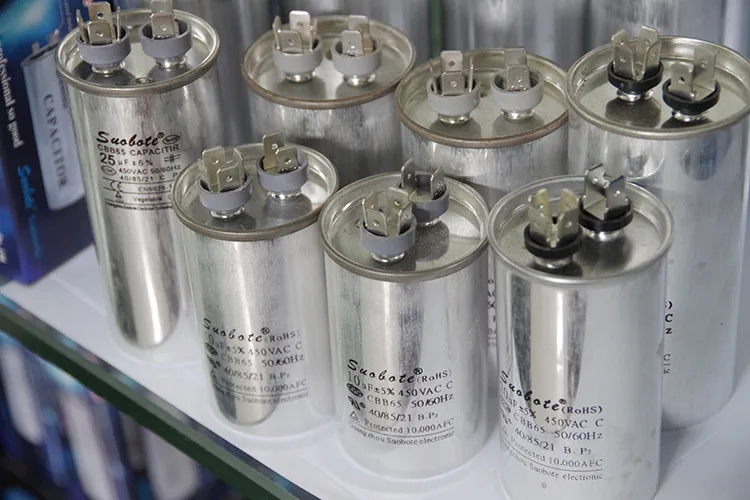

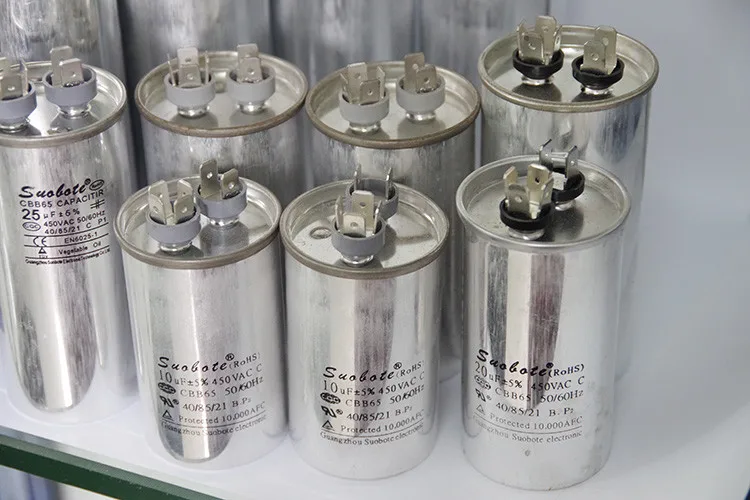

Detailed Images
