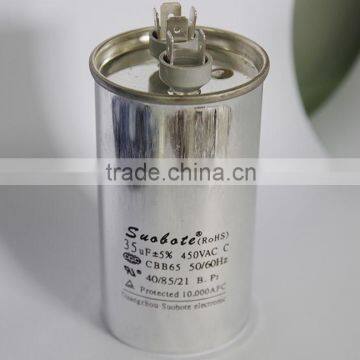

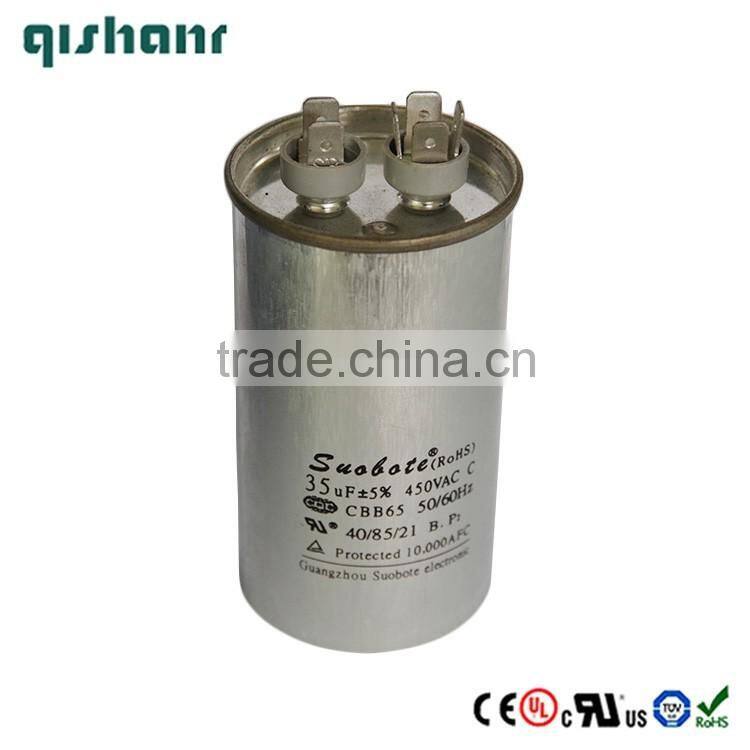

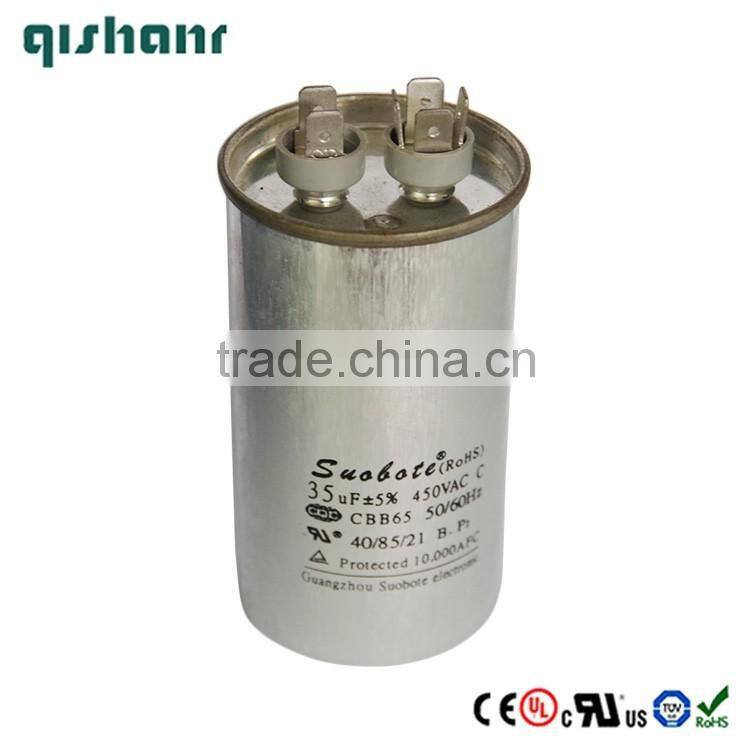

The Brilliant CBB65 450VAC 50/60Hz 35uF AC Air Condition Capacitor

1.The product has low loss, high insulation resistance, good self-healing properties

2.Stable, resistant to impact current, overload capacity and other characteristics

3.Is equipped with an internal explosion devices, use of safe and reliable

4.Is widely used in air conditioners, refrigerators, electrical

1. specification: GB/T3667, 1-2005 ; IEC252;

2. Climatic category: 40/085/21 ; 40/070/21

3. Frequency: 50/60Hz ;

4. Capacitance tolerance: ± 5%;

5. Leads to the head and shell: ≥ 1000 MΩ;

6. Loss tangent: tgϬ≤ 0.002 （100Hz）

7. Test voltage: the first between the leads: 2 UR, 60s no breakdown, leads to the head and shell 2000 VAC, 60s no breakdown;

8. Security level: P2;

9. To obtain certification: CQC, TUV, CE, UL.

Our company is a Trading Company, located in Guangdong, China(Mainland). It was established in 2012

and own 11 to 50 employees. The main Products are chiller tube cleaner,duct cleaner,boiler tube

cleaner,refrigeration compressor,hvacr. And turnover is US$1 million - US$2.5 million. Our main market

are South America, Southeast Asia, Africa, Mid East, North America.

Packing Details  : Capacitor CBB65 packed with standard export carton or customized.

Delivery Details : Shipped in 10 days after the deposit received.
