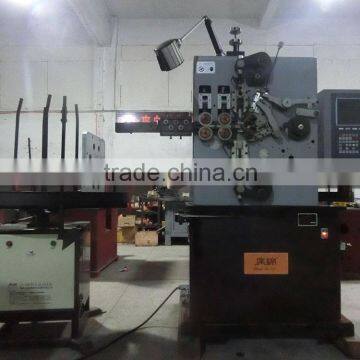

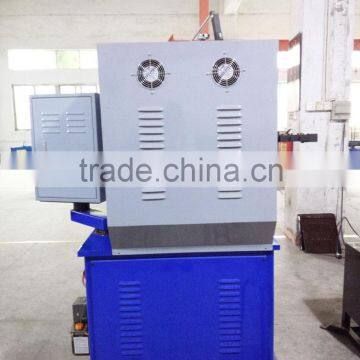

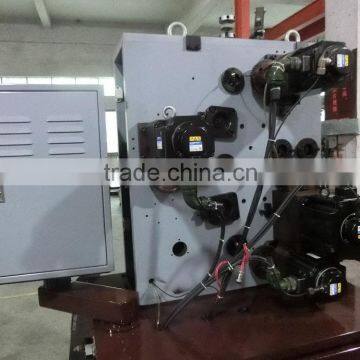

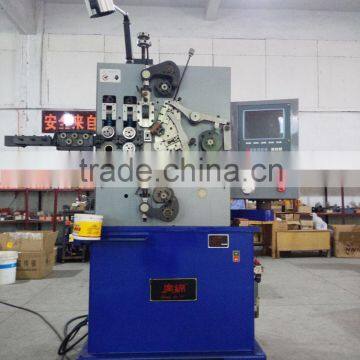

GJ-40B 4axis computer spring machine for buffer spring
Machine Description
1,The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2. Customers can upgrade the software system by RS232 communication controller port at any time.
3.Don’t need to stop the machine can modify the processing program
4. Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5,Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
6, ensure that the 100% Taiwan imported CNC system, superior quality
7, Can according to the customer request to match length measurement device
Technical Parameters
| Model | GJ-40B 4axis computer spring machine for buffer spring |
| Wire Size | Φ1.2- Φ4.0mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~120m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
5.5kw 2.7kw 2.7kw 2.7kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H) | 750*1150*1600mm |
| Weight | 1500kg |
Spring Samples
Packaging
The spring machine are packed in a very fir wood case, and the machines are protected by plastic film inside.
Service
1, Making samples for free after getting your order
2, 1 year warranty
3, Free training to your engineer
4, Lifetime maintenance
Place order to us
1, Show us what you need
2, Provide the suitable machine as per your requirement
3, Arrange production after 30% payment
4, Ship the goods after full payment
5, Following your machine until it reaches its destination
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
CERTIFICATE
Spring machines
