Home > Products > CNC spring coiling machine > GJ-60A Dongguan high speed CNC compression spring machine
GJ-60A Dongguan high speed CNC compression spring machine
- 50 Set / Sets per Month
- Shenzhen Port
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Guangjin | Model Number: | GJ-60A |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

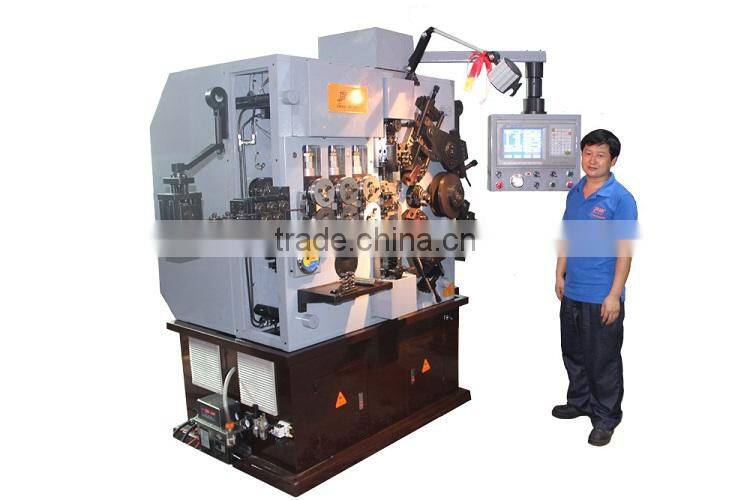

GJ-60A high speed compression spring machine
Features
1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
3, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
4, ensure that the 100% Taiwan imported, superior quality

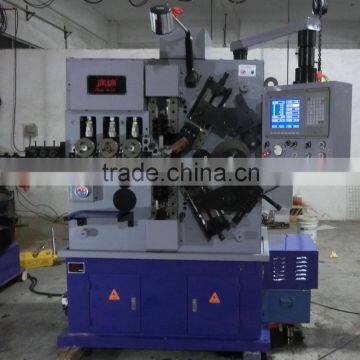

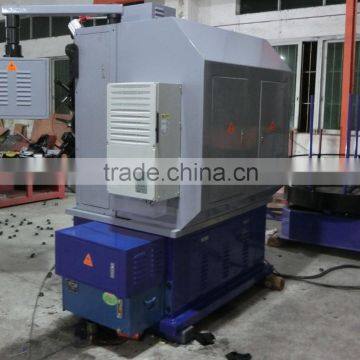

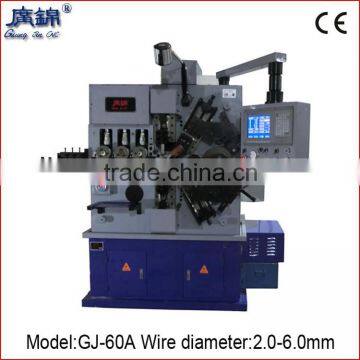

GJ-60A pictures
Technical Parameters
Machine | compression spring machine |
Model | GJ-60A |
Axis Count | 5 axis |
Wire Size Range | Φ2mm~φ6mm |
Max Feeding Length | Unlimited |
Wind direction | Right and Left Hand |
Max Feeding Speed | 150m/min |
Min Setting Value | 0.01mm |
Max Setting Value | 9999.99mm |
Outside Diameter | ≤φ120mm |
Min Cam Seting Value | 0.1° |
Max Cam Setting Value | 359.9° |
Wire Feed Servo Motor | 15kw |
Cutter servo motor | 4.5kw *2 |
Pitch Servo motor | 2.0kw |
Cam Motor | 4.5w |
Dimension(LxWxH) | 1300x1200x2100mm |
Weight | 5000kg |

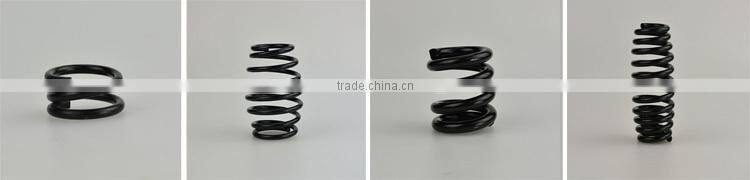

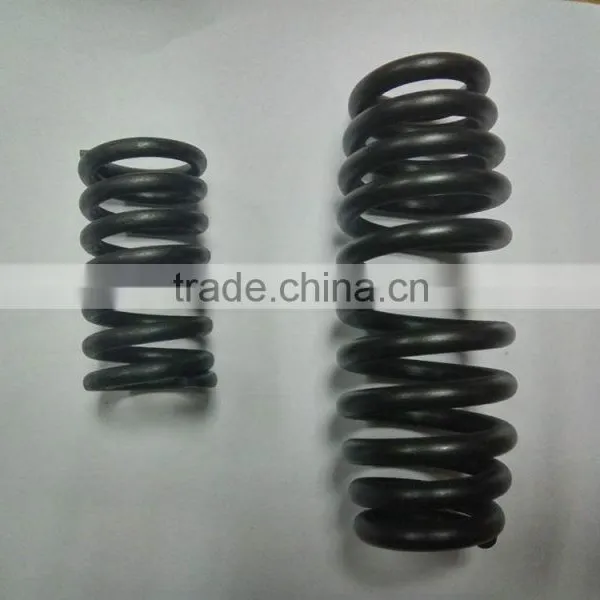

Samples
Place order to us
Our Advantage
1, 12 years' experience in this area
2, Experienced employee and international famous components make the machine high stable and accuracy.
3, We research and develop new machines or modify machines according to clients' products.
4, Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
EXHIBITION
CERTIFICATE

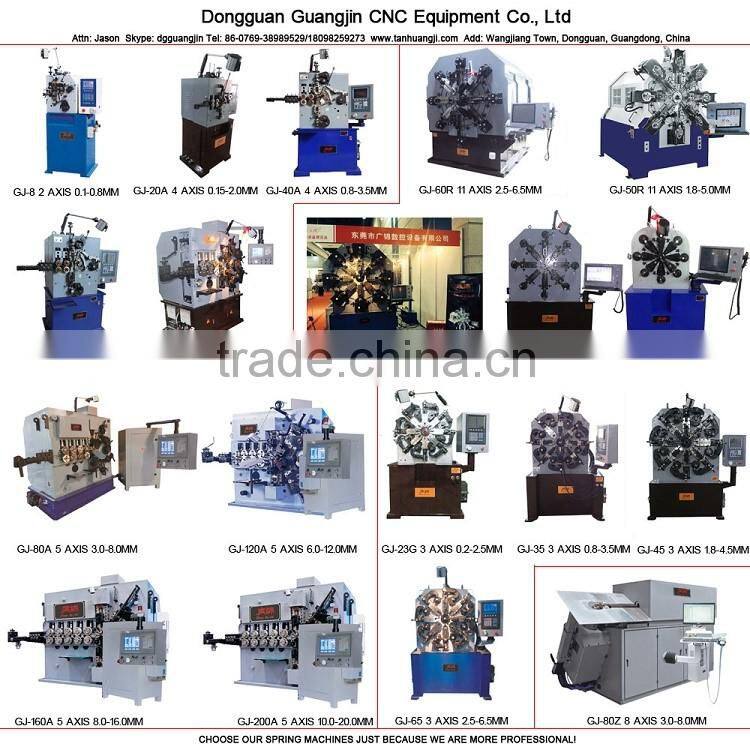

OUR SPRING MACHINES
Contact Us
- Dongguan Guang-Jin CNC Equipment Co., Ltd.
- Contact namePeter Lin
- Phone886-769-38989529
- Addressdafen Dongguan,Guangdong
