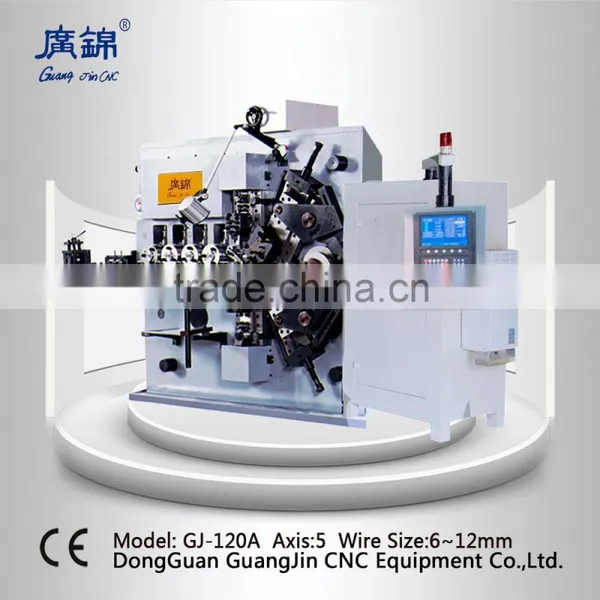

Help CenterGJ-120A 6mm-12mm CNC Spring Coiling Machine
Related Products
-
GJ-160A 8mm-16mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set -
GJ-200A 10mm-20mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set
-
China Spring Machine Manufacturer for Computer Keyboard Button SpringNegotiableMOQ: 1 Set
-
GJ-8 2axes 0.8mm CNC Compression Spring MachineUS$ 1 - 1,000,000MOQ: 1 Set
-
4axes Compression CNC Spring Coiling MachineUS$ 1 - 1,000,000MOQ: 1 Piece
Parameters
Model |
GJ-120A |
Axis Count |
5 axis |
Wire Size Range |
Φ0.15~ Φ2.0mm |
Max Feeding Length |
Unlimited |
Wind direction |
Right and Left Hand |
Max Feeding Speed |
0~150m/min |
Min Setting Value |
0.01mm |
Max Setting Value |
9999.99mm |
Outside Diameter |
≤150.00mm |
Cam Min Seting Value |
0.1° |
Cam Max Setting Value |
359.9° |
Wire Feed Servo Motor |
37kw |
Cutter servo motor |
7kw*2 |
Pitch Servo motor |
2.7kw |
Cam Motor |
7kw |
Dimension(LxWxH) |
2720x1820x2520mm |
Weight |
9500kg |
Features
1.The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improved greatly
2.Upgrade the software system by RS232 communication controller port at any time.
3.Don’t need to stop the machine can modify the processing program
4.Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5. Simple repetitive programming cooperates with the probe speed can be set for producing flat springs
6.Ensure that the 100% Taiwan imported CNC panel, superior quality
1. Making samples for free after getting your order
2. 1 year warranty
3. Free training to your engineer
4. Lifetime maintenance
1. 12 years' experience in this area
2. Experienced employee and international famous components make the machine high stable and accuracy.
3. We research and develop new machines or modify machines according to clients' products.
4. Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
