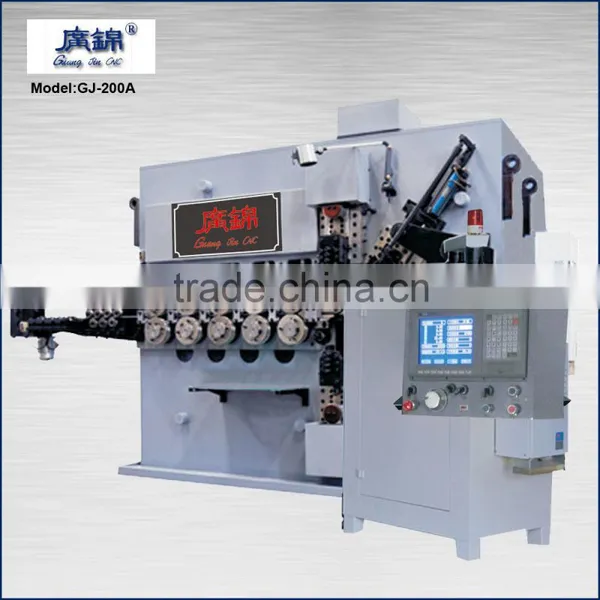

Help CenterGJ-200A 10mm-20mm CNC Spring Coiling Machine
Related Products
-
China Spring Machine Manufacturer for Computer Keyboard Button SpringNegotiableMOQ: 1 Set -
GJ-8 2axes 0.8mm CNC Compression Spring MachineUS$ 1 - 1,000,000MOQ: 1 Set
-
4axes Compression CNC Spring Coiling MachineUS$ 1 - 1,000,000MOQ: 1 Piece
-
0.8-3.5mm 4axis CNC Rotary Wire Spring Forming MachineUS$ 1 - 1,000,000MOQ: 1 Set
-
0.8-3.5mm CNC Spring Coiling MachineUS$ 1 - 1,000,000MOQ: 1 Set
can produce variety of compression spring
Parameters
Model |
GJ-200A |
Axis Count |
5 axis |
Wire Size Range |
Φ10mm~φ20mm |
Max Feeding Length |
Unlimited |
Wind direction |
Right and Left Hand |
Max Feeding Speed |
30m/min |
Min Setting Value |
0.01mm |
Max Setting Value |
9999.99mm |
Outside Diameter |
≤280.00mm |
Cam Min Seting Value |
0.1° |
Cam Max Setting Value |
359.9° |
Wire Feed Servo Motor |
55kw |
Cutter servo motor |
22kw |
Pitch Servo motor |
5.5kw |
Cam Motor |
22kw |
Wood Box Size |
3190*2280*2850 mm |
Electric Box Size |
1400*880*2100 mm |
Weight |
32500kg |
Features
1.The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improved greatly
2.Upgrade the software system by RS232 communication controller port at any time.
3.Don’t need to stop the machine can modify the processing program
4.Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5. Simple repetitive programming cooperates with the probe speed can be set for producing flat springs
6.Ensure that the 100% Taiwan imported CNC panel, superior quality
7.Advanced oil pressure lock core system, use air conditoner to take away the heat from cutting
1. Making samples for free after getting your order
2. 1 year warranty
3. Free training to your engineer
4. Lifetime maintenance
1. 12 years' experience in this area
2. Experienced employee and international famous components make the machine high stable and accuracy.
3. We research and develop new machines or modify machines according to clients' products.
4. Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
