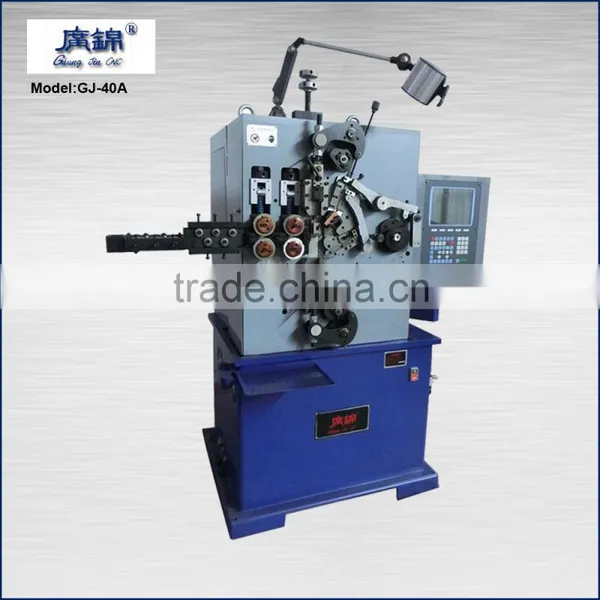

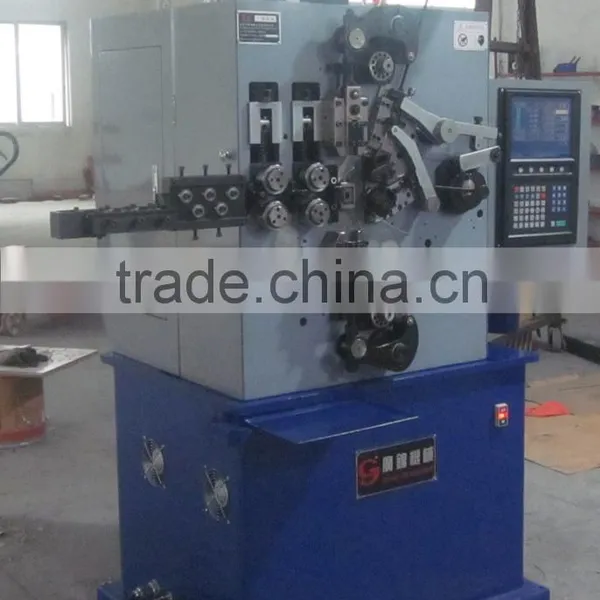

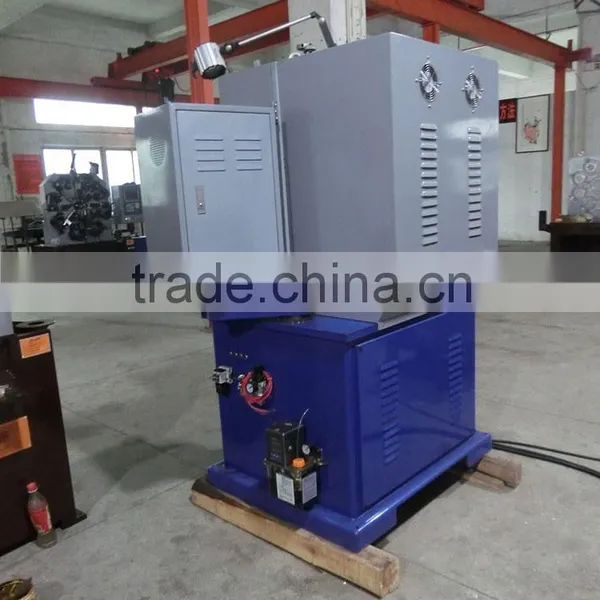

Help CenterGJ-40A 0.8mm-3.5mm 4 Axis CNC Compression Spring Machine
Related Products
-
GJ-40B 1.2mm-4mm 4 Axis CNC Compression Spring MachineNegotiableMOQ: 1 Set -
GJ-60A 2mm-6mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set
-
GJ-80A 3mm-8mm CNC Spring Coling MachineNegotiableMOQ: 1 Set
-
GJ-120A 6mm-12mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set
-
GJ-160A 8mm-16mm CNC Spring Coiling MachineNegotiableMOQ: 1 Set

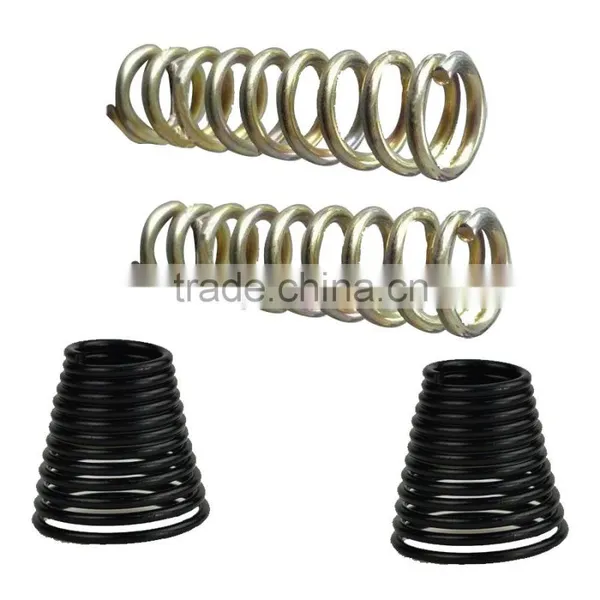

Compression Spring Making Machine, produce conic spring, contact spring, wave spring
Parameters
| Model | GJ-40A |
| Wire Size | Φ0.8- Φ3.5mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~120m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
4.5kw 2.0kw 2.0kw 2.0kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H)mm | 700*1100*1600 |
| Weight | 1300kg |
Features
1.The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improved greatly
2. Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
3. Simple repetitive programming cooperates with the probe speed can be set for producing flat springs
4.Ensure that the 100% Taiwan imported, superior quality
5.According to the customer request, choose length measurement device
1. Making samples for free after getting your order
2. 1 year warranty
3. Free training to your engineer
4. Lifetime maintenance
1. 12 years' experience in this area
2. Experienced employee and international famous components make the machine high stable and accuracy.
3. We research and develop new machines or modify machines according to clients' products.
4. Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
