Help CenterHigh Quality 4 Axis CNC Spring Coil Winding Machine
Related Products
-
GJ-40A 4 Axis Cnc Automatic Spring Roll MachineNegotiableMOQ: 1 Set -
GJ-120A Professional 12mm Computer Spring Roll MachineNegotiableMOQ: 1 Set
-
GJ-60A Dongguan High Speed CNC Pressure Spring MachineNegotiableMOQ: 1 Set
-
Dongguan Low Price 2 Axis Cnc Helical Coil Spring MachineUS$ 1 - 500,000MOQ: 1 Set
-
GJ-40B High Quality Automatic Spring CoilerNegotiableMOQ: 1 Set

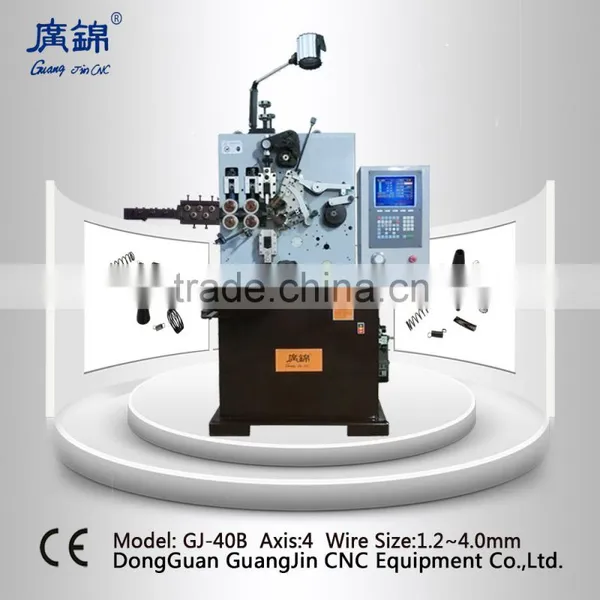

Description Of GJ-40B spring roll machine
1,The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2. Customers can upgrade the software system by RS232 communication controller port at any time.
3.Don’t need to stop the machine can modify the processing program
4. Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5,Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
6, ensure that the 100% Taiwan imported CNC system, superior quality
7, Can according to the customer request to match length measurement device

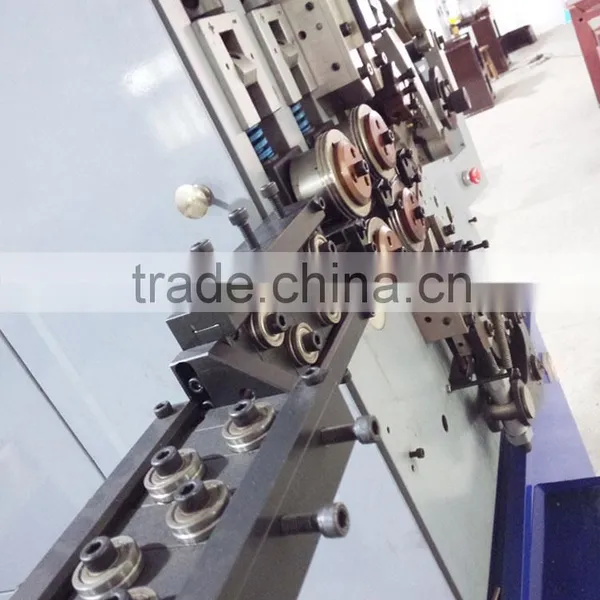

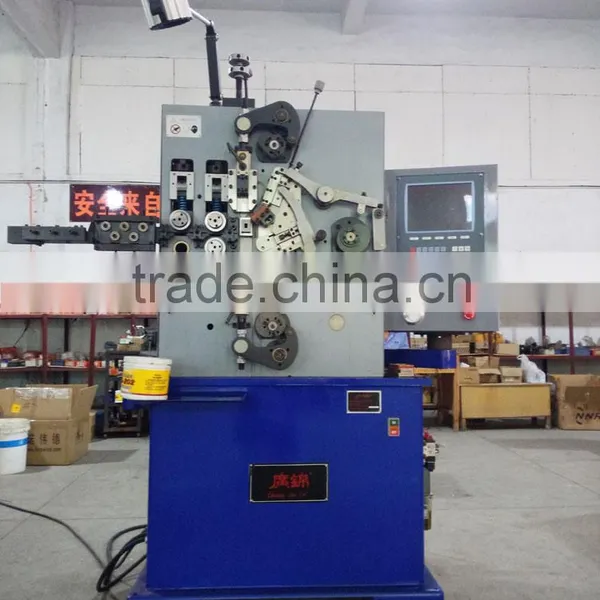

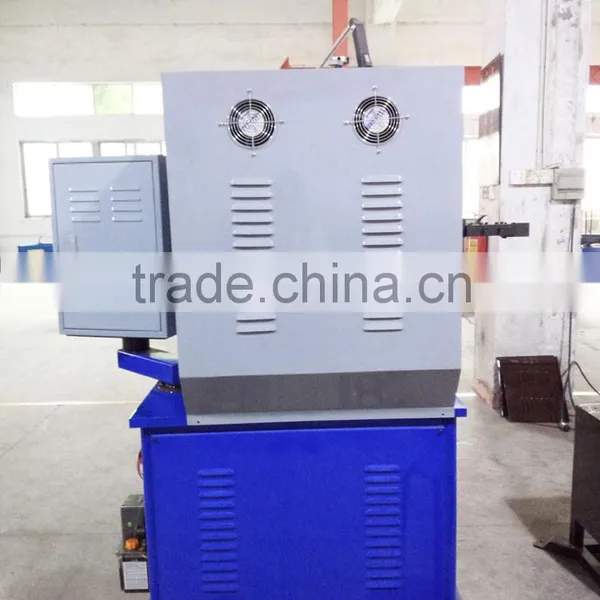

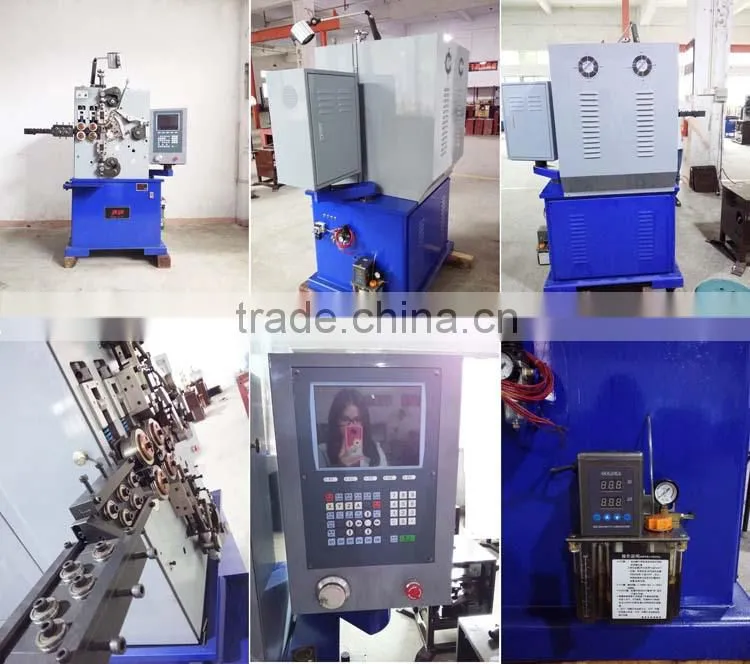

Pictures
Technical Parameters
| Model | GJ-40B spring roll machine |
| Wire Size | Φ1.2- Φ4.0mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~120m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|

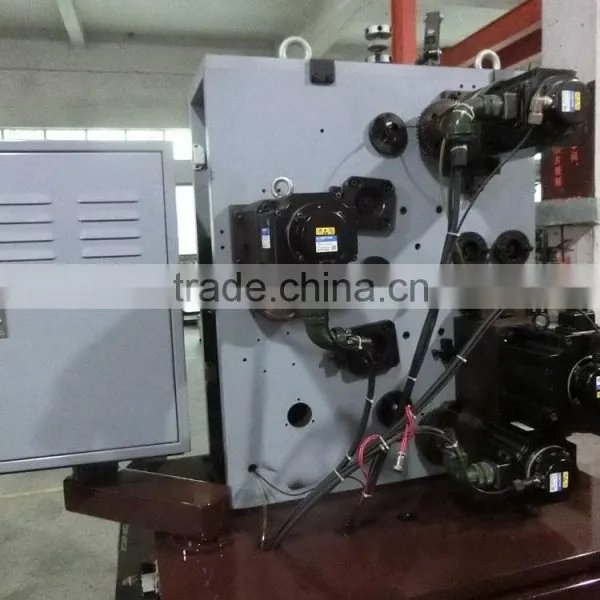

Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
5.5kw 2.7kw 2.7kw 2.7kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H) | 750*1150*1600mm |
| Weight | 1500kg |

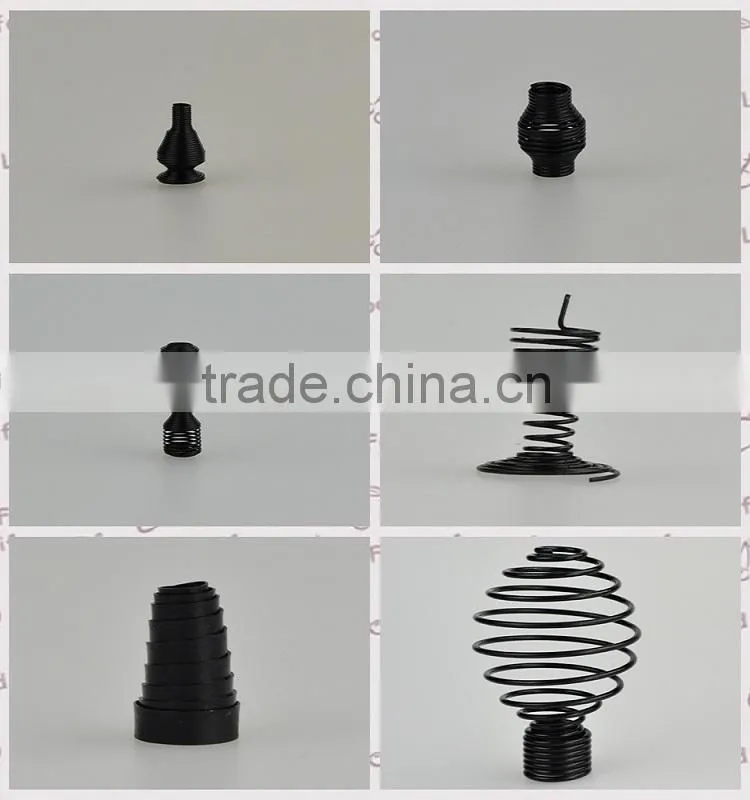

Spring Samples
Packaging
The spring machine are packed in a very fir wood case, and the machines are protected by plastic film inside.
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
