Help CenterGJ-40B High Quality Automatic Spring Coiler
Related Products
-
GJ-20A Cnc Automationc Spring Coiler for Slanted Spring Wave SpringNegotiableMOQ: 1 Set -
GJ-80A Dongguan Computer Compression Spring MachineNegotiableMOQ: 1 Set
-
GJ-40A 4 Axis Cnc Automatic Tower Spring MachineNegotiableMOQ: 1 Set
-
GJ-40A Cnc Spring Winding MachineNegotiableMOQ: 1 Set
-
GJ-20A China CNC Canted Spring MachineNegotiableMOQ: 1 Set
Description of Spring Coiler
1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2, Customers can upgrade the software system by RS232 communication controller port at any time.
3, Don’t need to stop the machine can modify the processing program
4, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
5, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
6, ensure that the 100% Taiwan imported CNC system, superior quality
7, Can according to the customer request to match length measurement device

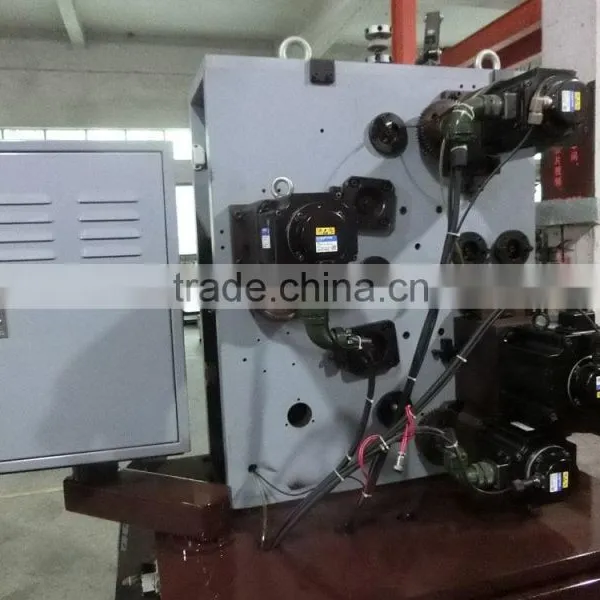

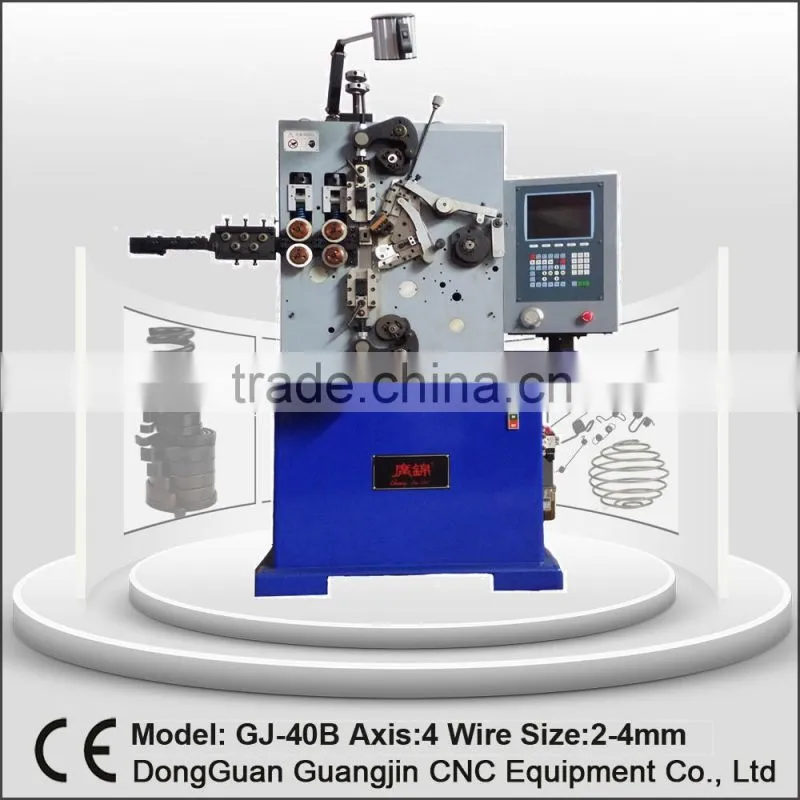

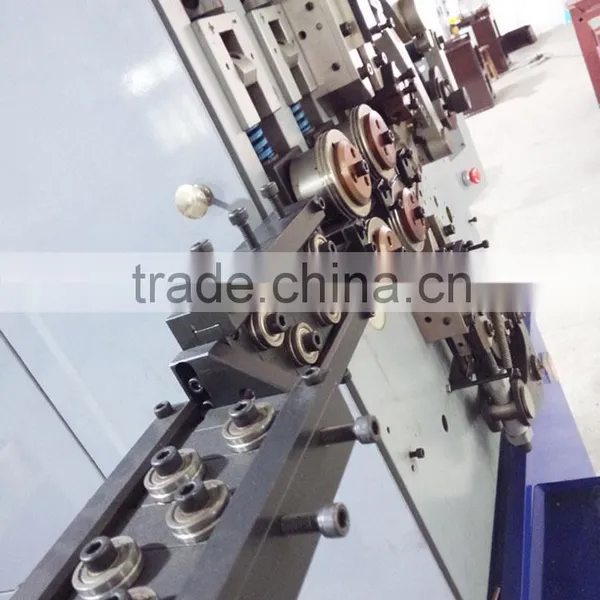

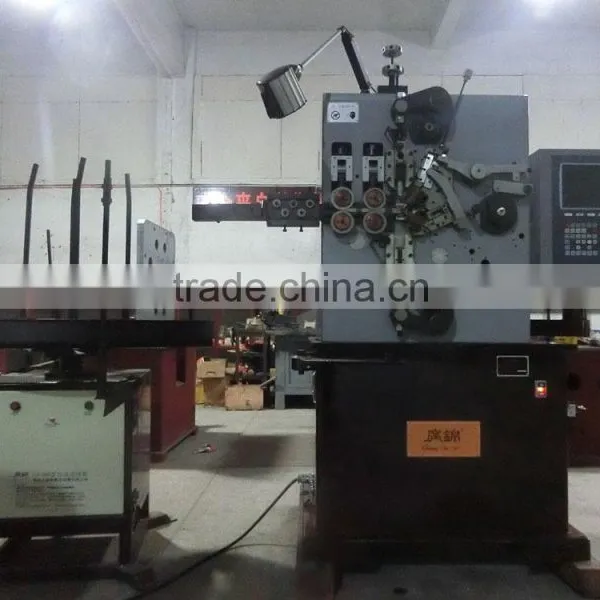

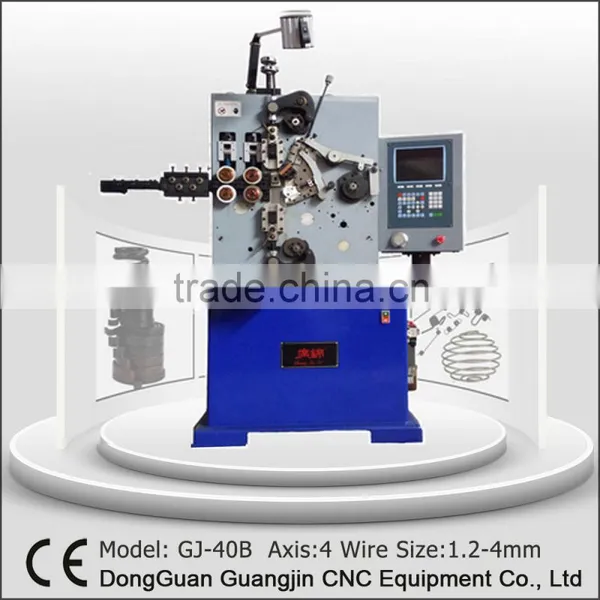

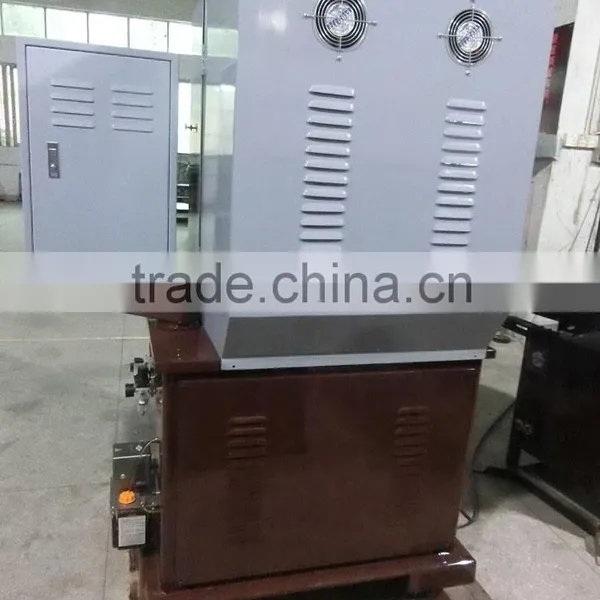

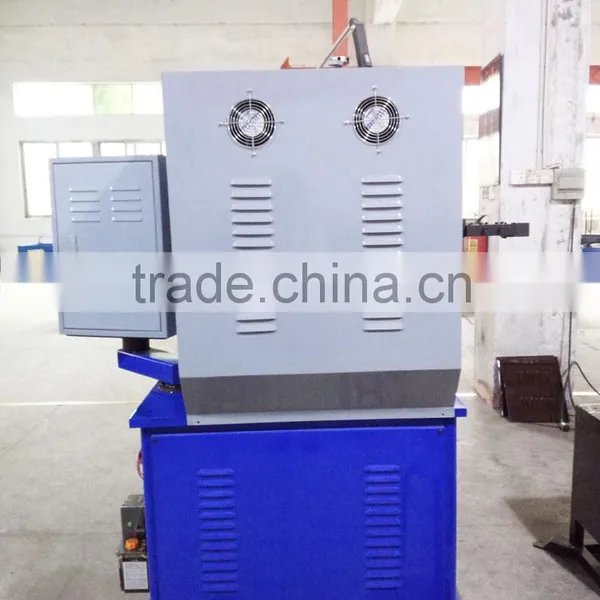

Machine pictures
Technical Parameters
| Product name | Spring coiler |
| Model | GJ-40B |
| Wire Size | Φ1.2- Φ4.0mm |
| Axis | 4 axis |
| Wind direction | Right and Left Hand |
| Feeding Length | ±0.1~±9999.99 |
| Wire feed speed | 0~120m/min |
| Cam Setting value | ±0.1°~±359.9° |
| Max Feeding length | Unlimited |
|
Wire feed servo motor Cutter servo motor Pitch servo motor Cam servo motor |
5.5kw 2.7kw 2.7kw 2.7kw |
| Power AC | 380v±10%V50HZ |
| Dimensions(L*W*H) | 750*1150*1600mm |
| Weight | 1500kg |

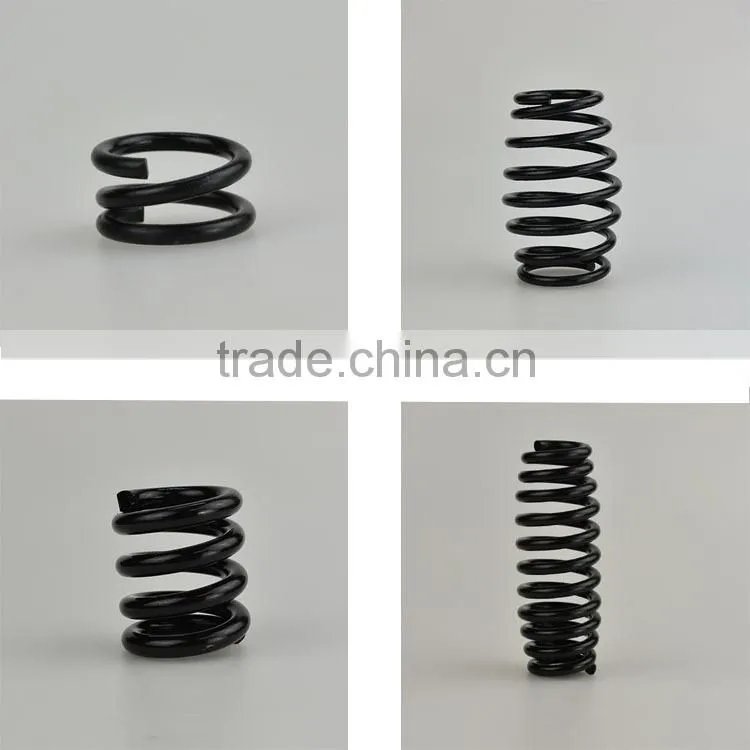

Spring Samples
Our Advantage
1, 12 years' experience in this area
2, Experienced employee and international famous components make the machine high stable and accuracy.
3, We research and develop new machines or modify machines according to clients' products.
4, Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
Service
1, Making samples for free after getting your order
2, 1 year warranty
3, Free training to your engineer
4, Lifetime maintenance
Place order to us
1, Show us what you need
2, Provide the suitable machine as per your requirement
3, Arrange production after 30% payment
4, Ship the goods after full payment
5, Following your machine until it reaches its destination
Package
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
