GJ-80A 8mm 5 axis cnc compression spring machine
- 100 Set / Sets per Month
- Shenzhen Port
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GuangJin | Model Number: | GJ-80A |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Compressin spring machine features
1, The hardware system highly integrated,so that failure rate is reduced to a minimum and the stability is improving greatly.
2, Don’t need to stop the machine can use hand- shaking wheel at anytime to change the speed of the machine
3, Simple repetitive programming cooperates with the probe speed can be set for producing flat springs etc., manifold cycles
4, Ensure that the 100% Taiwan imported CNC system, superior quality

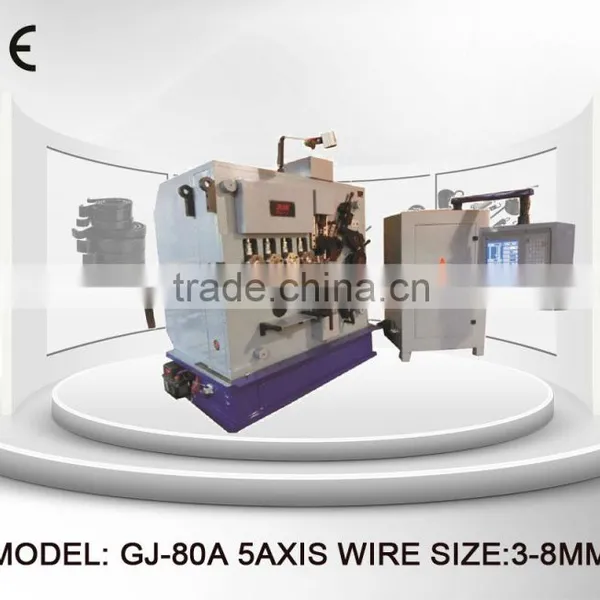

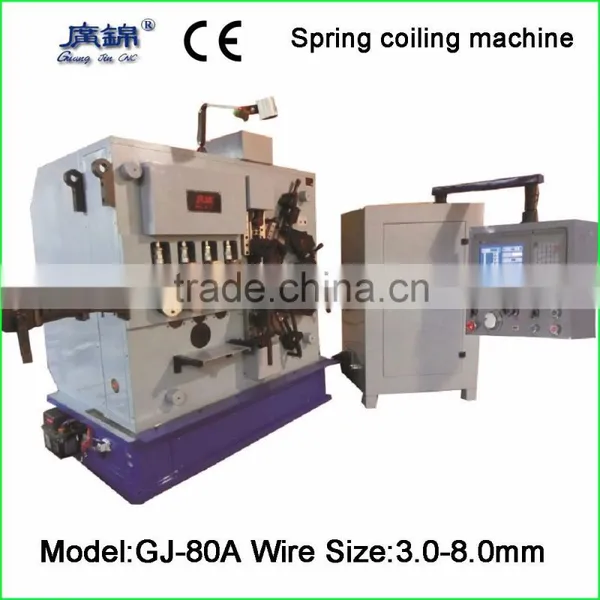

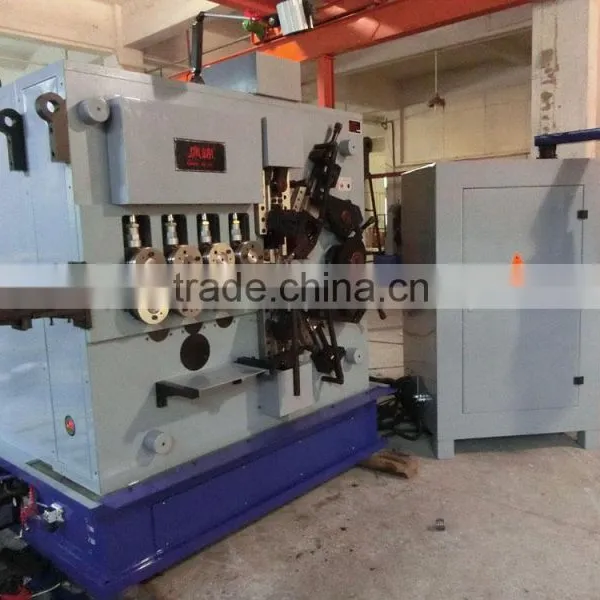

Machine picture
Technical Parameters
Model | GJ-80A |
Axis Count | 5 axis |
Wire Size Range | Φ3mm~Φ8mm |
Max Feeding Length | Unlimited |
Wind direction | Right and Left Hand |
Max Feeding Speed | 95m/min |
Min Setting Value | 0.01mm |
Max Setting Value | 9999.99mm |
Outside Diameter | ≤φ130mm |
Cam Min Seting Value | 0.1° |
Cam Max Setting Value | 359.9° |
Wire Feed Servo Motor | 30kw |
Cutter servo motor | 5.5kw*2 |
Pitch Servo motor | 2.7kw |
Cam Motor | 5.5w |
Dimension(LxWxH) | 1300x1850x2250mm |
Weight | 7500kg |
Our Advantages
1, 12 years' experience in this area
2, Experienced employee and international famous components make the machine high stable and accuracy.
3, We research and develop new machines or modify machines according to clients' products.
4, Get trusted by famous company, Midea, TK, etc. And, our machines art exported to more than 10 countries.
Service
1, Making samples for free after getting your order
2, 1 year warranty
3, Free training to your engineer
4, Lifetime maintenance
Packaging
The spring machine are packed in a very fir wood case, and the machines are protected by plastic film inside.
Company profile
Dongguan city guang jin CNC equipment co., LTD Is engaged in the computer spring machine, compression spring machine, professional production, research and development, design, sales, service as one of the famous high-tech enterprises in guangdong province, product marketing in Europe and southeast Asia and other countries and regions,deeply domestic and foreign customers favor!"Guang jin" can be the development and manufacture according to customer's personalized needs of different specifications of the models.
OUR CERTIFICATES
Contact Us
- Dongguan Guang-Jin CNC Equipment Co., Ltd.
- Contact namePeter Lin
- Phone886-769-38989529
- Addressdafen Dongguan,Guangdong
