1.Application:
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
2.Working Principle:

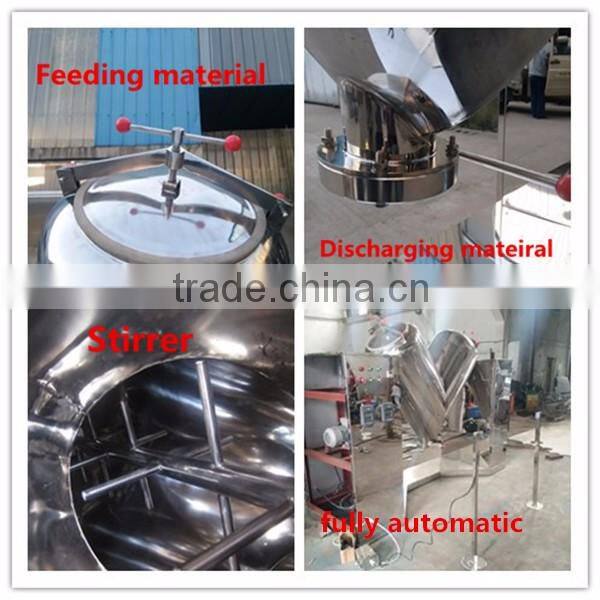

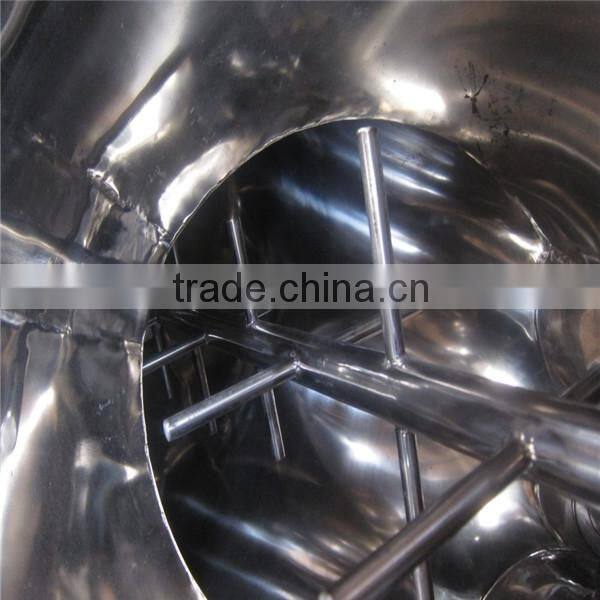

the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It’s high efficient.
| VI Series Forced Stirring Mixer | |||||||||
| Technical Data | Total Volume | Max loading volume | Max loading capacity | Mixing Time | Motor Power(KW) | Drum Speed | Stirring speed (rpm) | Machine Size(L*W*H)mm | Weight(kg) |
| VI-180 | 180L | 80L | 80kg | 0-99min | 1.1×1.1 | 12r/min | 500r/min | 1950×650×1750 | 380 |
| VI-300 | 300L | 120L | 80kg | 0-99min | 1.1×2.2 | 12r/min | 500r/min | 2100×650×1850 | 450 |
| VI-500 | 500L | 200L | 80kg | 0-99min | 3×2.2 | 12r/min | 500r/min | 2700×800×2050 | 480 |
| VI-1000 | 1000L | 400L | 80kg | 0-99min | 5.5×2.2 | 10r/min | 500r/min | 3000×1050×2450 | 950 |
| VI-1500 | 1500L | 600L | 80kgL | 0-99min | 7.5×3 | 10r/min | 500r/min | 3600×1100×3100 | 1020 |
| VI-2000 | 2000L | 850L | 80kg | 0-99min | 7.5×4 | 10r/min | 350r/min | 4215×1280×3100 | 2000 |
| VI-2500 | 2500L | 1200L | 80kg | 0-99min | 11×4 | 8r/min | 350r/min | 4260×1280×3200 | 2040 |
| VI-3000 | 3000L | 1500L | 80kg | 0-99min | 11×5.5 | 8r/min | 350r/min | 4400×1300×3300 | 2500 |
| VI-4000 | 4000L | 1800L | 80kg | 0-99min | 15×5.5 | 6r/min | 300r/min | 4800×1080×4200 | 3000 |
| VI-5000 | 5000L | 2200L | 80kg | 0-99min | 15×7.5 | 5r/min | 300r/min | 5656×1300×4380 | 3500 |
4.Feature:
This series of mixer, made by stainless steel, is in unique structure, high efficient, easy operation, widely use and small occupation.

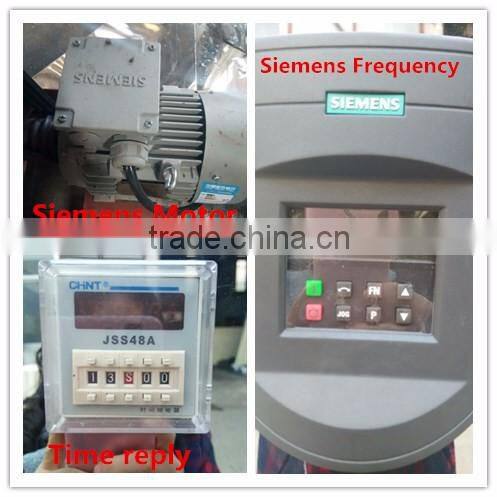

Omron safety device
wooden packing
1) Professional advice and rich experience help to choose machine.
2) Lifelong maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4) Any problem before or after delivery, you could find and talk with us anytime.
5) Video / CD of test running and installation, Maunal book, tool box sent with machine.
1. How many kinds material you want to mix , what are they?
2. What capacity you expect ? (kg/time)
3.How much is the density of the material ?
4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
5.Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
