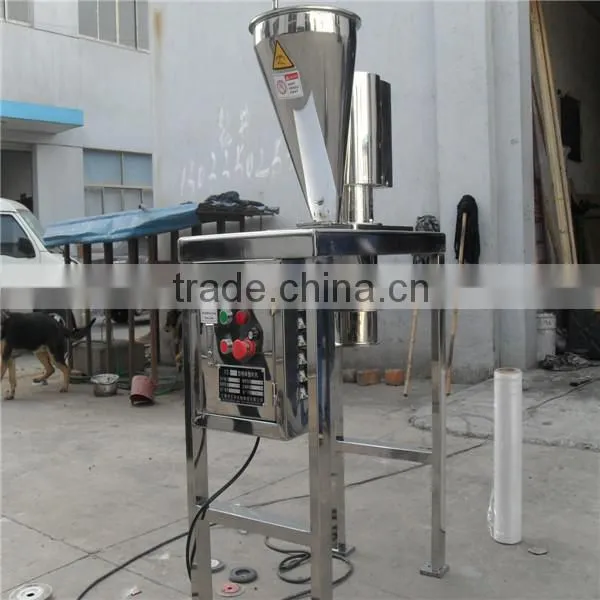

Conical Powder Mill
US$ 2,500 - 2,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, cone mill
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for conical powder mill
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Product Type
Other, cone mill
Place of Origin
Jiangsu, China
Brand Name
WP
Model Number
FZB-150
Voltage
380V
Power(W)
1.1kw
Dimension(L*W*H)
810*445*1345mm
Weight
200kg
Certification
ISO9000 CE
After-sales Service Provided
Engineers available to service machinery overseas
conical powder mill
Product Description
Main Application:
Pharmacy:raw material grinding,wet process of granules,dry material granulation.For those tables not in requirement,they can recycled according to the size of particles.Foodstuff:for the reuse of biscuits.Others:for the grinding and granulation of coarse materials,block materials and agglomerated materials.
Working Principle:

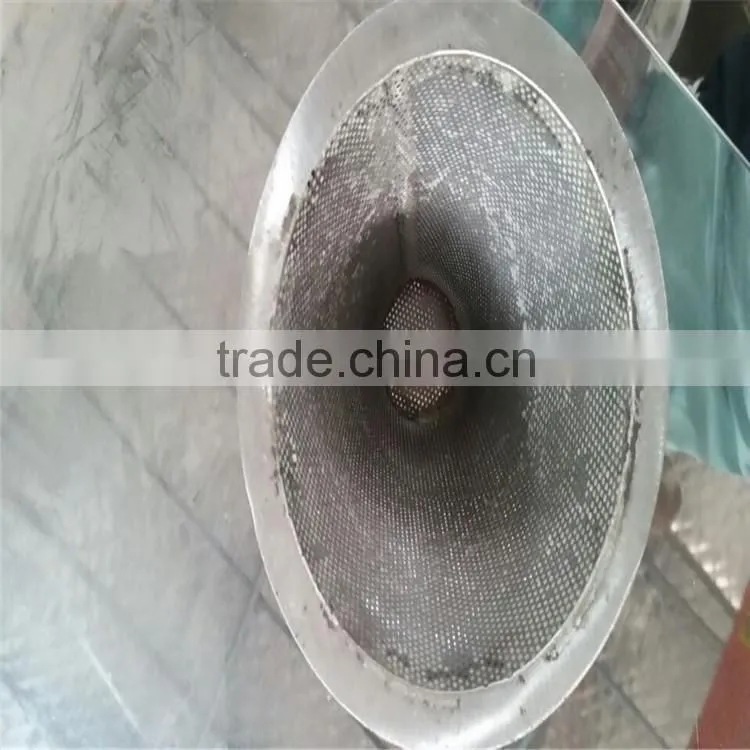

Raw materials entering the feeding gate will be fall into coneshaped working chamber and era sheared by rotary knifes and mesh surface.The material is cut into small particles and released from the sieve.The granule size is decided by the distance of mesh size,rotary knifes and sieve as well as the rotary knife speed.
Technology
| FZB Series Granulator | |||||
| Model | 150B | 300B | 450B | 700B | 1000B |
| Capacity(kg/h) | 15-150 | 30-300 | 45-450 | 70-700 | 100-1000 |
| Size(mesh) | 6-80 | ||||
| transfer base temperature increase(℃) | <30 | ||||
| speed control range(rpm) | Single speed:2800rpm Or frequency control of motor speed 300-3600rpm | ||||
| motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 5.5 |
| height of discharge gate from floor(mm) | 650 | 650 | 690 | 690 | 720 |
| Overall size(L×W×H) | 810×445×1345 | 850×480×1400 | 920×445×1430 | 1000×500×1530 | 1100×560×1785 |
