Conical Mill

Conical Mill photo-1
Conical Mill photo-2

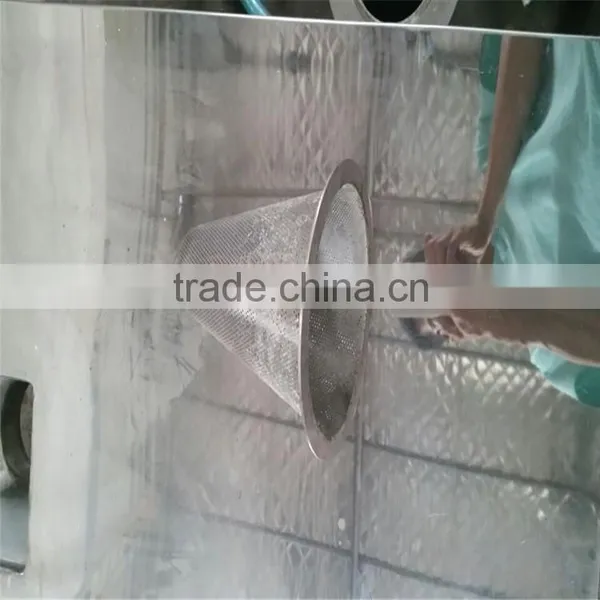

Conical Mill photo-3
US$ 2,580 - 2,880 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, cone mill
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for conical mill
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, cone mill
Place of Origin Jiangsu, China
Brand Name WP
Model Number FZB-150B
Voltage 380V
Power(W) 1.1kw
Dimension(L*W*H) 810*445*1345mm
Weight 200kg
Certification ISO9000 CE
After-sales Service Provided Engineers available to service machinery overseas

conical mill



Product Description

 Pharmacy:raw material grinding,wet process of granules,dry material granulation.For those tables not in requirement,they can recycled according to the size of particles.Foodstuff:for the reuse of biscuits.Others:for the grinding and granulation of coarse materials,block materials and agglomerated materials.



Working Principle:



Raw materials entering the feeding gate will be fall into coneshaped working chamber and era sheared by rotary knifes and mesh surface.The material is cut into small particles and released from the sieve.The granule size is decided by the distance of mesh size,rotary knifes and sieve as well as the rotary knife speed.



Technology





FZB Series Granulator
Model 150B 300B 450B 700B 1000B
Capacity(kg/h) 15-150 30-300 45-450 70-700 100-1000
Size(mesh) 6-80
transfer base temperature increase(℃) <30
speed control range(rpm) Single speed:2800rpm Or frequency control of motor speed 300-3600rpm
motor power(kw) 1.1 1.5 2.2 3 5.5
height of discharge gate from floor(mm) 650 650 690 690 720
Overall size(L×W×H) 810×445×1345 850×480×1400 920×445×1430 1000×500×1530 1100×560×1785

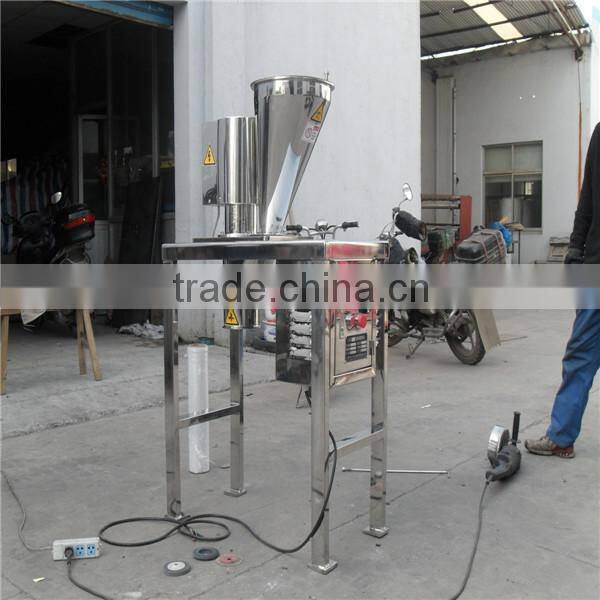

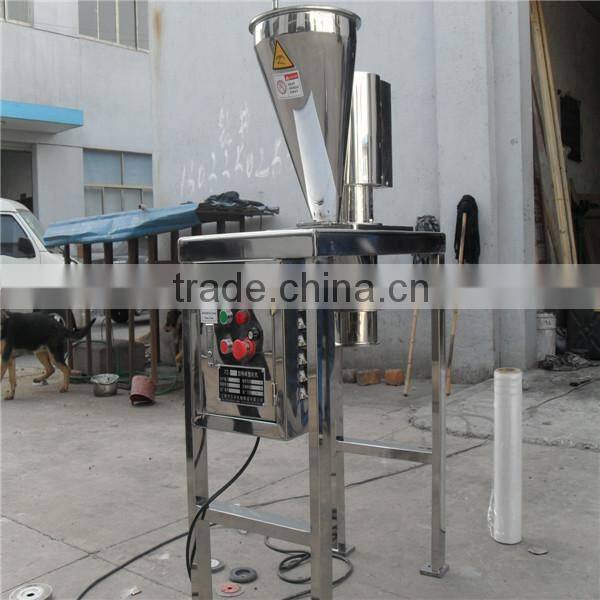

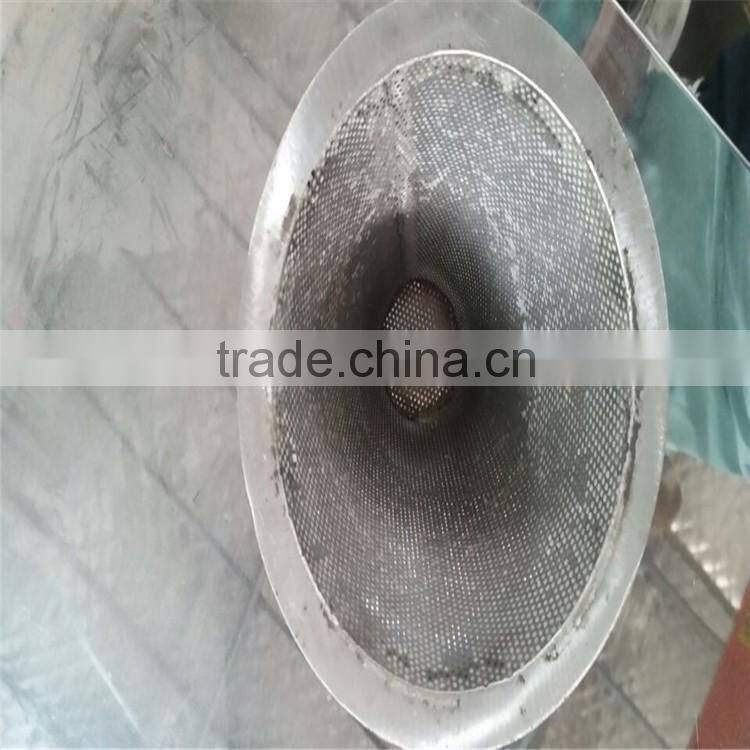

Detailed Images



conical millconical mill

 conical mill

Packaging & Shipping

 wooden packing

 conical mill



Our Services



one year guarantee for whole machine

24 hours technical support by email

calling or door-to-door service

user manual and detailed video/CD





Company Information







FAQ



Q:How to choose a right granulator?

A:Pls tell me capacity per hour and how many meshes will you choose.And tell me raw material.



Certifications

 conical mill
