2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin

2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin photo-1
2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin photo-2
2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin photo-3
2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin photo-4
2016 Hot p6 Led Screen Outdoor Rgb Full Color for Advertising Led Board With Aluminum Rental Led Cabinet Super Thin photo-5
US$ 900 - 1,400 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JC
Model Number:
JC-FSO-PH6MM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JC
Model Number JC-FSO-PH6MM
Usage Outdoor
Tube Chip Color Other, 2016 hot p6 led outdoor rgb full color for advertising led board
Display Function Graphics
Pixels Other, 2016 hot p6 led outdoor rgb full color for advertising led board
Screen Dimension 960mmx960mm

2016 HOT P6 LED screen outdoor RGB full color for advertising board with aluminum rental led cabinet super thin









Product features

1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.

2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.

3.Easy maintenance:
Can fix the single point to save the maintenance cost.

4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well

5.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.









Product Remarks

1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.









Product Application Case

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.









Product of our service
1. Enquiry response time: within 12hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Brilliant Opto can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display.









Product Parameter


The Technical Parameters of  p6 led screen Dip 3 in 1
The specifications of modules
Items Parameter
Product Model  P6 Full Color Led Module
Module size 192mm*96mm
 Pixel pitch  6mm
 Pixel density   27777dots/m2
Pixel configuration RGB 3 in 1
 Module resolution 32dots(W)*16dots(H)
Module maximum power consumption 20W
 Module Thickness 2.7CM
Module Weight 0.4kg
Driving method Constant Current Driving
Scanning method 1/8 scan
Interface HUB75B
Brightness   ≥7000cd/m2
The specifications of cabinets
Cabinet size 768mm x 768mm
 Module quantity 32pcs
 Power supply 5V/40A  5V/60A
Cabinet resolution   128*128dots
 Optimal viewing distance 5M ~ 50M
Optimal viewing angle 160°(W) 120°(H)
 RHWorking temperature (Work :-40 degree~ +60 degree )
  System operating humility 10%-95%
The specifications of power supplier
Operating Voltage AC220V±10%
 Average power consumption 350W/H
 Maximum power consumption ≤600W/ m2
 Electric current  ≤20mA(single LED)
The specifications of control card
Control Panels  Pentium4 or above
Operating system  WIN98/2000/NT/XP
Control model Synchronization with PC
The specifications of the main technical parameters
 Driving device Constant Current Driving
 Refresh rate ≥2200HZ
 Grey scale RGB Each 256, can display 16.7M colors)
MTBF ≥9000hours
Power switch Automatic Switch
Display Mode 800*600/1024*768/1280*900









Product Picture

2016 hot p6 led screen outdoor rgb full color for advertising led board with aluminum rental led cabinet super thin

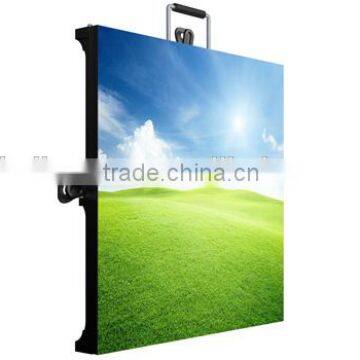

Product Cabinet

















Enterprice Authentication

2016 hot p6 led screen outdoor rgb full color for advertising led board with aluminum rental led cabinet super thin






Product packing case

2016 hot p6 led screen outdoor rgb full color for advertising led board with aluminum rental led cabinet super thin2016 hot p6 led screen outdoor rgb full color for advertising led board with aluminum rental led cabinet super thin













 Products Note

The above prices are just for your reference, as you know the led display screen is designated products,different size and functions, prices are different, so before you pay for the order, better talk with our sales and get the exactly quote,
will change the prices for you according to the final quotation.
