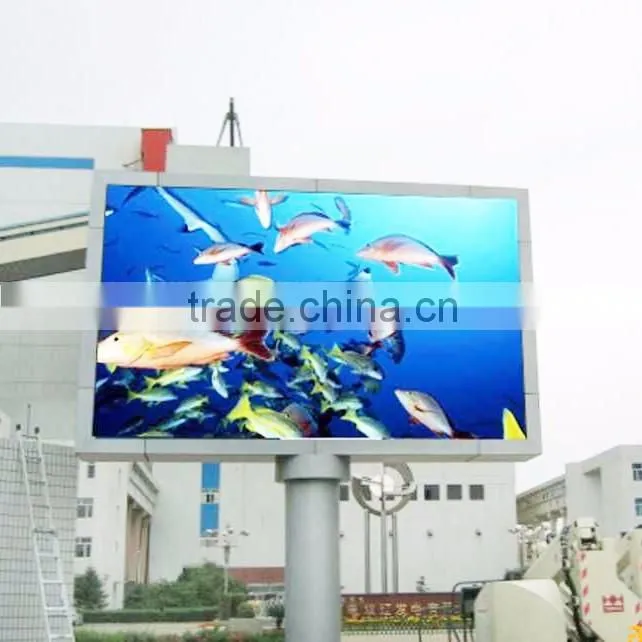

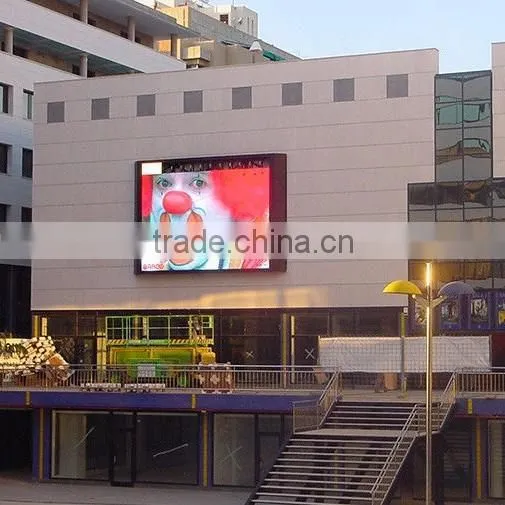

Outdoor P5mm led video wall,Waterproof SMD IP65 led display screen
1.SMD LED with Best Color Uniformity and High Brightness.
2.High Refresh Rate and High Grey Grade with Reliable Driving IC.
3.Best Power Supply of Meanwell PSU of CE,UL Approved.
4.Waterproof Outdoor IP65 LED Cabinet Can be Customized accroding to your LED Display Size.
P5mm Outdoor LED Display Features:

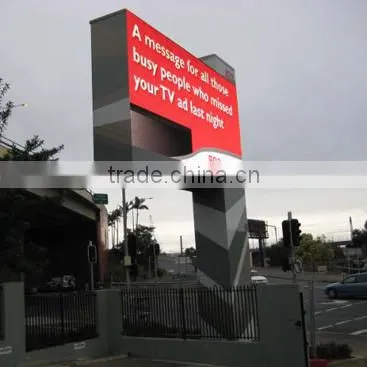

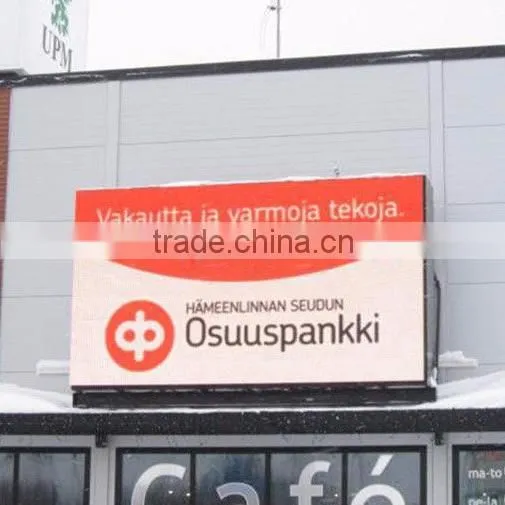

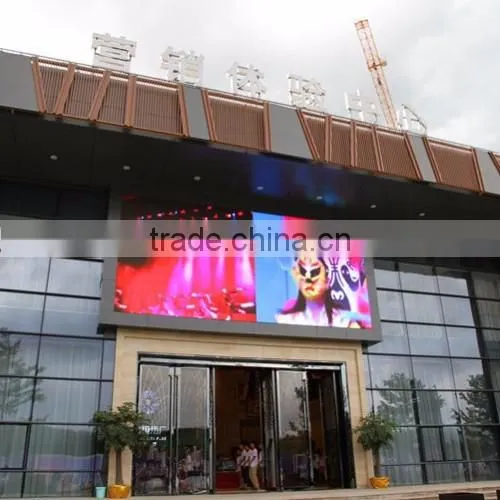

1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. Firstclass LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, fullon sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 6500-nit brightness(for outdoor full color(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Description |
Technical parameter |
|

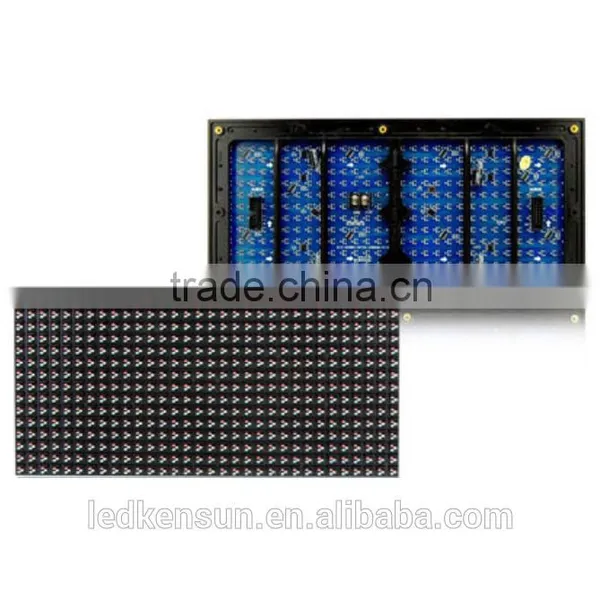

LED Module |
Module size |
160*160mm |
Pixel pitch |
5mm |
|
Pixel density |
40,000 dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Led specification |
SMD2727 |
|
Pixel resolution |
W:32dots*H:32dots |
|
Power System |
Working voltage |
DC9-36V |
Average power consumption |
400W/m2 |
|
Max. Power consumption |
≤800W/m2 |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/8 scan |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥300Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness white balance |
More than 6500 cd/m2 |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
960*320 |
|
Communication distance |
Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM |
|
Software |
Linsn LED Control System and LEDStudio |
|
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
1. Pre-sales service:
a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
2. After-sales service:
a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
d) Under normal use and storage, Our Company will be responsible for the equipments.
Repair Service for LED Display Lifelong time
