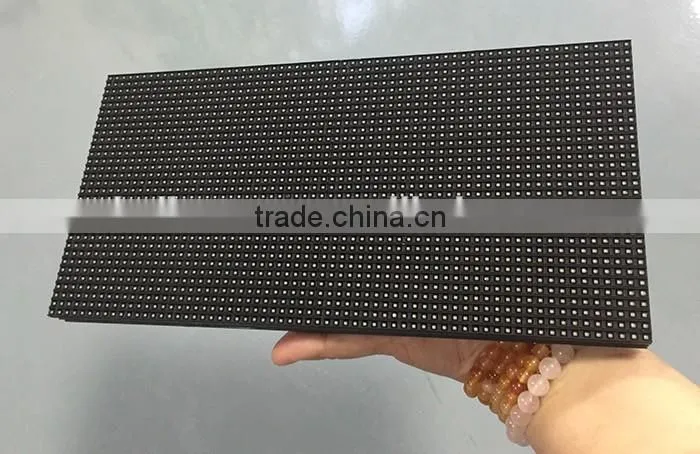

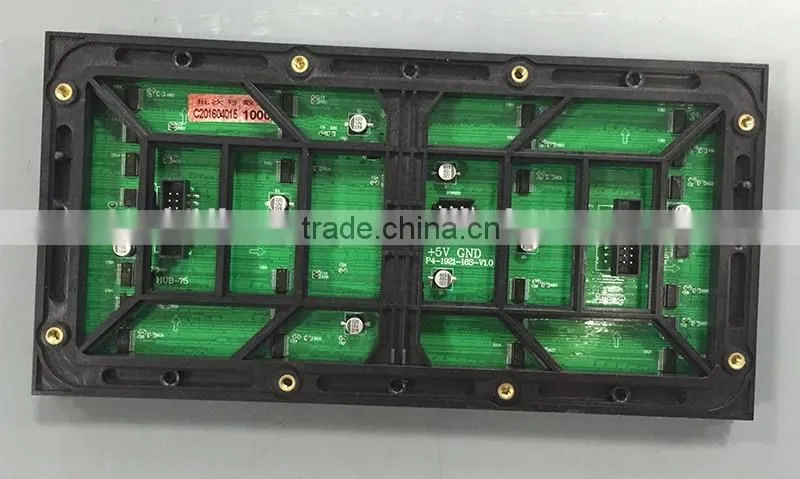

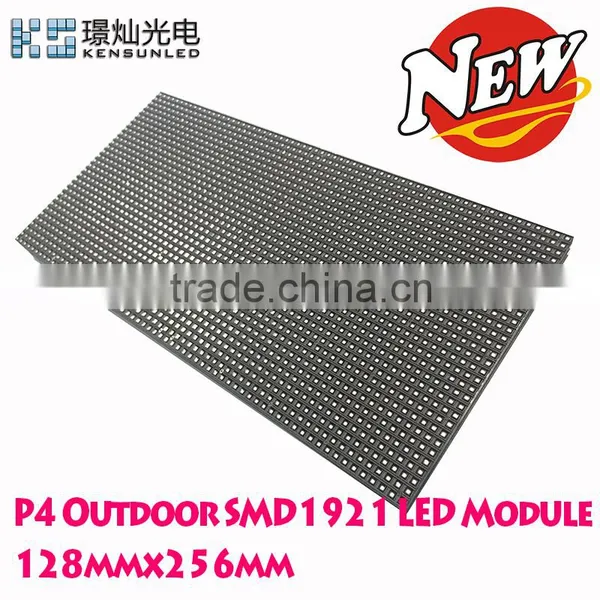

Free shipping P4 Outdoor SMD1921 3in1 Full Color Led Display Module - high brightness, high refresh, high performance
1) SMD led encapsultion with wide view angle to 120 degree, and short view distance
2) Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle
3) High definition, smooth and good quality vision
4) Dot to dot maintain, easy and quick maintenance, save maintenance cost
5) High brightness up to 5000cd/sq.m
6) Can be assembled with cabinets or on rackes with magnet.

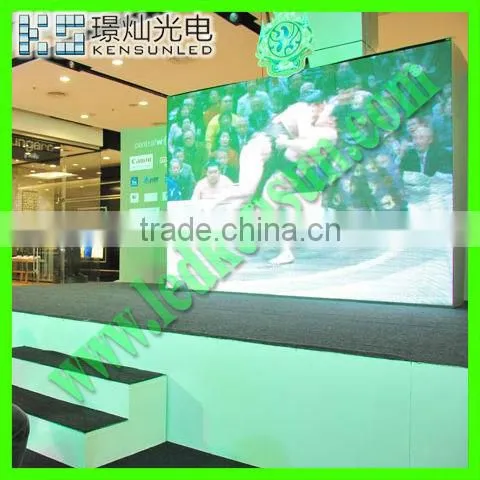

1. Wide application: it can be used for any rental application of stage show: such as main screen, side screen, floor screen, arc screen stage design etc.
2. Easy and Fast: for both installation and dismantling, without any tools, it takes only 10 seconds to assembly, hanging, pile up and fix installation available.
3. Front maintenance module structure design, modules can be installed and dismantled from front side, any cabinet within this screen is free of assembly and dismantling.
4. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.
5. Cabinet and modules hollow are designed for great heat dissipation performance, high transparency, and high wind resistance level.
6. Both indoor and outdoor series are compatible, outdoor SMD and DIP screen with IP65 weatherproof level, so it can be used normally in rainy days.
7. Floor led screen can bear 1 ton weight, IP65 weatherproof level.
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 4.0 |
| Pixel Density | Dots/sq.m | 62500 |
| Pixel Configuration | SMD1921 | |
| Module Resolution | dots | 32×64 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 140/120 |
| Brightness | nits | ≥6500 |
| Gray Scale | Bit | 687Million |
| IP Rating | 65 | |
| Power Consumption(Max/Avg) | W/sq.m | 800/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics | ||
| Cabinet Size(W×H×D) | mm | 1024x1024 |
| Cabinet Material | Iron | |
| Cabinet Weight | Kg | 15kgs |
| Module Size(W×H) | mm | 128×256 |
| Environment | ||
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity | 10%~90% | |
| Driving Mode | 1/8 Scan | |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km | |
