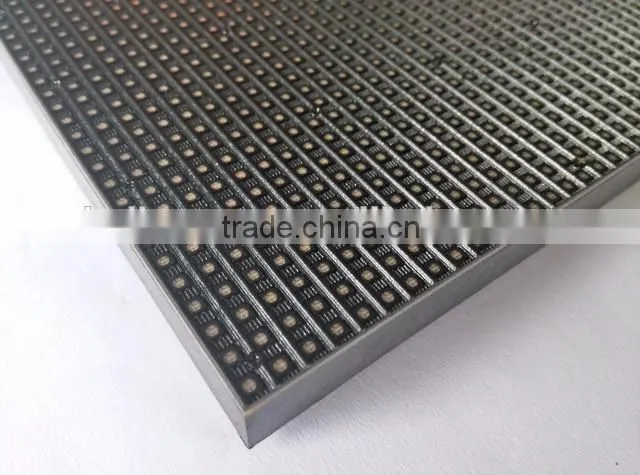

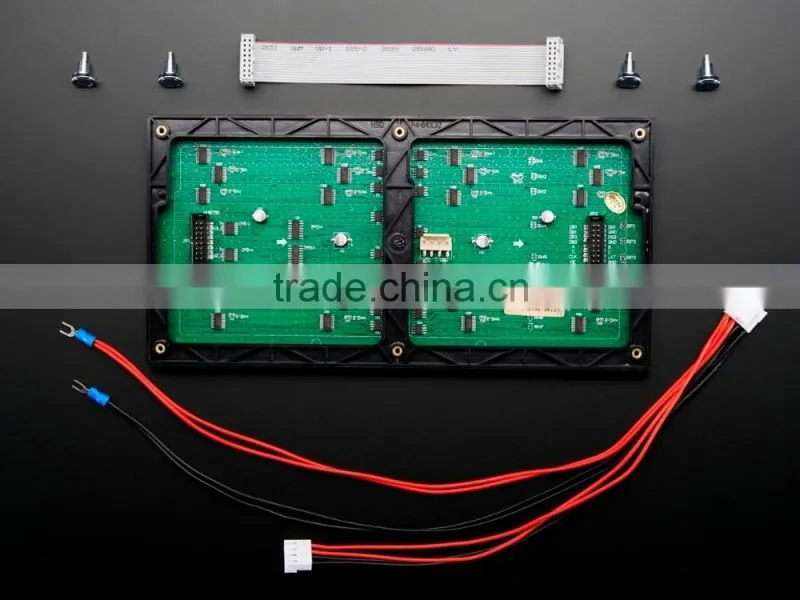

p6 32x32 RGB LED Matrix panel led display module 2 pcs p6 16x32 to 1 pcs 32x32 led panel indoor p3 p4 p5 p6 led display screen
1, High resolution at 27777pixels/;
2, Cost effective;
2, LED Chips: Epistar;
3, LED Source: SMD3528
4, Module: 192mm x 96mm;
5, Cabinet: 768mm x 768mm x 85cm;
6, Hanging up on truss and standing on floor;
1, P6 indoor full color LED display is widely used for large size indoor LED screens project as its cost is being less than before;
2, P6 full color indoor LED video screens is of high contrast ratio at 4000:1 to show a clear and vivid image;
3, Easy handling: With ultra light weight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
4, Ultra slim: P6 indoor full color LED display is designed at 90mm thickness;
5, Fast and easy assembly: 4 set fast lockers equipped on each LED cabinet for seamless connection between cabinets;
6, Noiseless fans equipped.

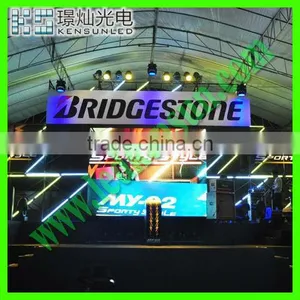

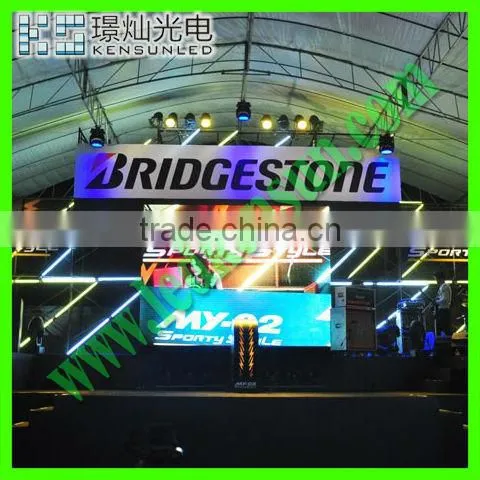

Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
| LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD3528 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 32 x 16 |
| Module pixel | 512 |
| Module size (mm) | 192 x 96 |
| LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 768 x 768 x 85 |
| Cabinet resolution (pixels) | 128 x 128 |
| Cabinet pixels (pixels) | 16384 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 19kg |
| LED DISPLAY SPECIFICATION | |
| Pixel density(pixel/m2) | 27777 |
| Brightness(cd/m2) | ≥15000 (adjustable) |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥5m |
| Communication distance(m) |
<100meter by Internet Cable(without Relay; Multi mode fiber cable < 500m; Single mode fiber cable < 20km |
| Display work method | 1/10 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method |
Intellective control technology , test-itself technology , correct technology, Synchronization Control |
| Input signal |
DVI (S-VIDEO, CVBS, ,DP,HDMI,VGA, PAL/NTSC, etc.through Video processor converting ) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature(ºC) | -20~+60 |
| Stored temperature (ºC) | -30~+80 |
| Operation humidity(RH) | 0-95% |
| Display Lifetime(hours) |
10 years or more( natural environment) 100000 hours( ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47~63HZ |
| Out of controlled dot |
≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wave length are both >10% depart to the normal one) |
