HD Concert Show Stage Led Display P3 P4 P5 P6 Rent Video Wall Displays
| Led Module: | P3 P4 P5 | MOQ: | 1 Square Meter |
|---|---|---|---|
| Warranty: | 3 Years | Driving IC:: | MBI5124/MBI5020 |
Display feature :
Light Weight : Each cabinet 576 x 576mm , only 8.5Kgs. and so on.

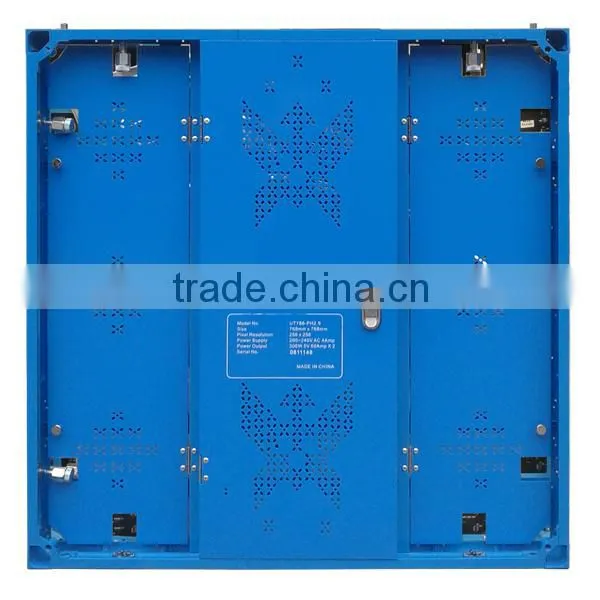

Thin Cabinet : Die-casting aluminum cabinet , only 5.5 / 6cm at the edge.

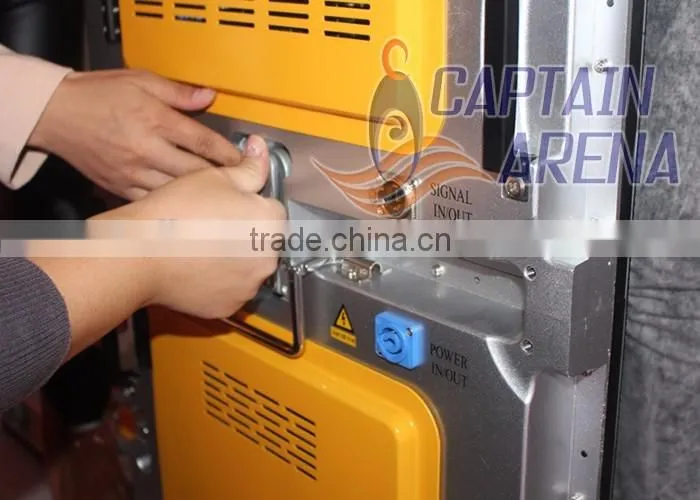

Easy & Fast Installation : Fast locking device in four sides . It takes only dozens of seconds to assemble one cabinet by pushing the handle 90 degree. It is fast and precise assembling.

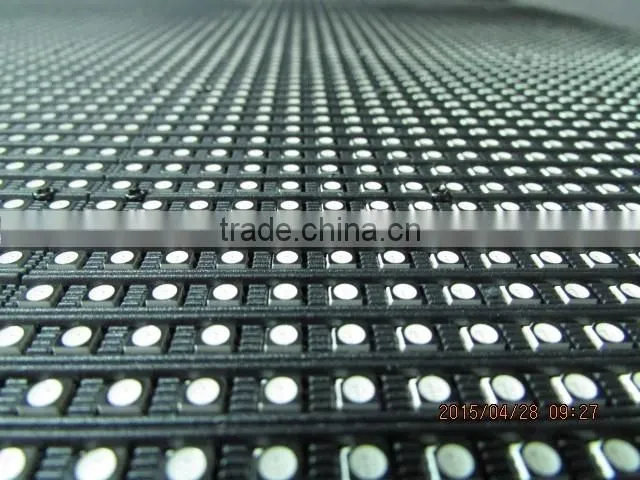

High Quality : Use the high quality SMD , High resolution.
Long lifespan , can reach more than 100,000 hours, while the power consumption is lower than one tenth of lamp or neon ;
Rich indoor full color LED display board engineering experience both in domestic and international market.
Perfect Display Effect :
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
Attractive Factory Price :
We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable.
Auto equipment :
Jingcan LED factory has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.
|
Easy Assembly P3 P4 P5 P6 Rental LED display stage backdrop movable stage hanging techincal parameters | ||
| Unit Module | Item | parameter |
| Model | P3 - 16S | |
| Module size | 192mm x 96mm | |
| Pixel Pitch | 3mm | |
| Pixel Density | 111111dots / m2 | |
| Pixel Configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Module Resolution | 64dots(W)*32dots(H) | |
| Max power consumption | 18w | |
| Module Thickness | 14.75mm(without magnet) 26.63mm (with magnet ) | |
| Module Weight | 0.16kg | |
| Driving Method | Constant Current Driving | |
| Scan Method | 1 / 16scan | |
| Interface Way | HUB75-A | |
| Brightness | ≥ 1500cd / m2 | |
| Unit Module | dimension | 576mm x 576mm |
| Quantity of Module | 18 | |
| Thermal discharge | fan 2pcs | |
| Power supply Mode | 5V / 40A* 3pcs | |
| Pixel per cabinet | 192mm x192mm | |
| Thickness | 85mm | |
| Optimal Viewing Distance | 3M - 20M | |
| Optimal Viewing angle | 160°(W)120°(H) | |
| Enviroment Temperature | Storage :-35℃-+85℃ work :-20℃-+50℃ |
|
| Power | Relative Humidity | 10 % - 95 % |
| Operating Voltage | AC220V ± 10 % | |
| Average power consumption | 180W / H | |
| Max power Consumption | ≤ 360W / m2 | |
| Current | ≤ 20mA (Single LED ) | |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98 / 2000 / NT / XP | |
| Control Mode | Synchronization with PC | |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥ 400HZ | |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor | |
| MTBF | ≥ 9000hours | |
| Power Switch | Automatic Switch | |
| Display Mode | 800 x 600 / 1024 x 768 | |
1. Pre-sales service:
a) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
b) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
2. After-sales service:
a) Service principles: response in time, solve problems as soon as possible and ensure the use.
b) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
c) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
d) Under normal use and storage, Our Company will be responsible for the equipments.
Repair Service for LED Display Lifelong time
