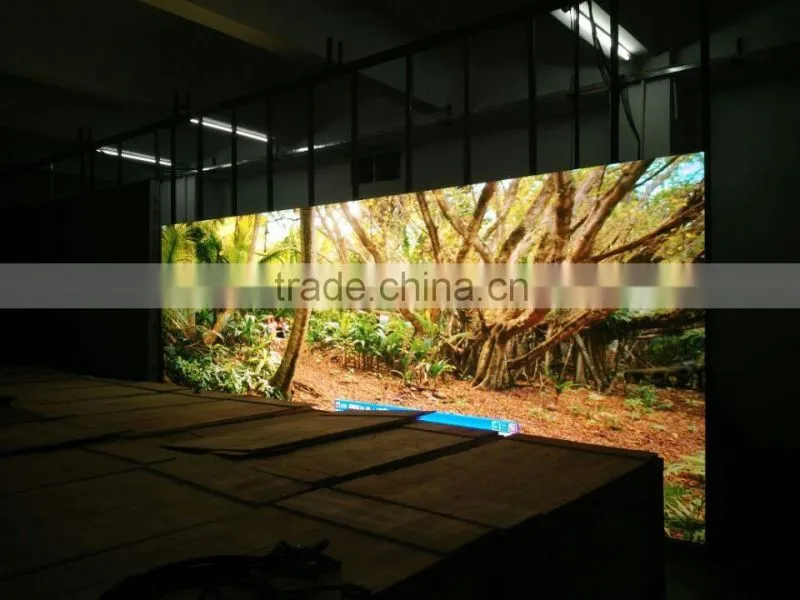

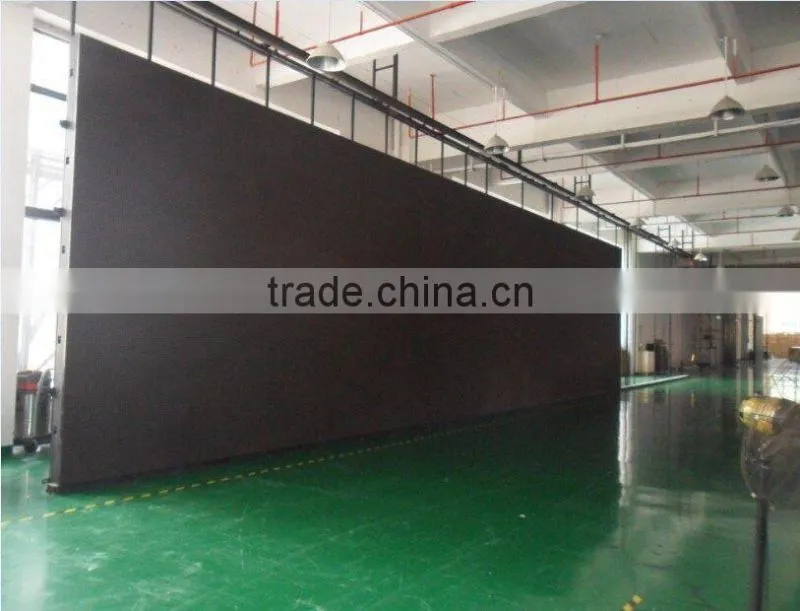

P4 indoor led video wall display
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display we provide?
We have indoor/outdoor/led curtain/mobile LED /rental LED display /LED stage/LED Dance Floor/Irregular LED display for you choose.
3. What about the lead time for order?
Always: 3-20 days, as your order quantity, sometimes we have stock, can delivery within 5 days
4.How about the warranty ?
We have two years warranty.
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd like to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
Description |
Technical parameter |
|
Unit module |
Module size |
128*128mm |
Pixel pitch |
4mm |
|
Pixel density |
62500dots/sqm |
|
Pixel configuration |
1R1G1B |
|
Led specification |
smd2121 |
|
Pixel resolution |
W64:dots*H:32dots |
|
Cabinet |
Dimension |
512mm*512mm*90mm |
Quantities of module |
16pcs |
|
Power supply |
3pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
10kg |
|
Best viewing distance |
4-150m |
|
Temperature |
Storage: -35°C~+85°C |
|
Working: -35°C~+85°C | ||
Thickness |
12cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. | ||
Power |
Working voltage |
AC220V/110V±10% |
Average power consumption |
300-400W |
|
Max. Power consumption |
≤1000W/sqm |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/16scanning |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 8000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
|
