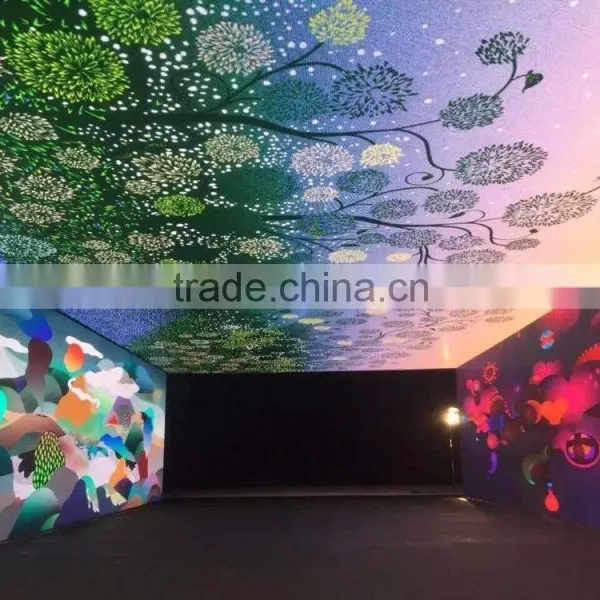

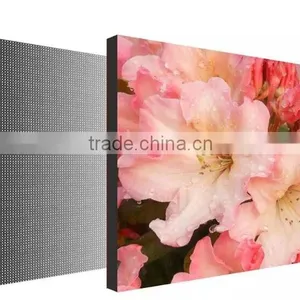

P1.667 indoor video SMD led display small pixel pitch screen with die casting aluminum cabinet
More Flexible Matching:With an aspect ratio of 8:9, panels are easy to be pieced together to play standard 4:3 and 16:9 videos.
Seamlessness: Die-casting aluminum panel, high-precision design and CNC processing minimize the error within 0.05mm.
Long lifespan:
Low-voltage power supply with high-efficiency causes little temperature rise, which helps to prolong the life of LED display in stable use.
Perfect Image: No flicker, no brightline or darkline ensures the LED display to take on more perfect image.
Industrialized Production: Patented technology, independent die sinking, precise welding and automatic processing all take the lead in LED industry.
Color Uniformity: The LED display would present uniform color at all times with low power consumption and low temperature rise.
No Blackout during Use: Reliable communication-level power supply and rational power distribution system lead to stable and safe operation.
No Black Screen during Use: Constituted by loop transmission, intelligent switch, anti-hacker security and fault alarm, the most reliable data transmission mode is incorporated internally.
Safe Maintenance: It supports hot swapping, which is more safe and convenient for maintenance personnel.
Item |
Specification |
|
module |
Led type |
SMD 3 IN 1 |
Pixel pitch (mm) |
1.667 |
|
Module resolution (W X H) |
120*180 |
|
Module dimension (mm) |
200(W)*300(H) |
|
Module weight (kg) |
0.4 |
|
Module power consumption (W) |
70 |
|
cabinet |
Module quantity(W×H) |
2 ×1 |
Cabinet resolution (W×H) |
240× 180 |
|
Cabinet dimension (mm) |
400(W) ×300(H)×66(D) |
|
Cabinet area (m2) |
0.12 |
|
Cabinet weight (kg) |
4.6 |
|
Pixel density (dot/m2) |
360000 |
|
Cabinet flatness (mm) |
≤ 0.2 |
|
Maintenance |
Back Access |
|
Cabinet material |
Die- casting Aluminum |
|
Optical parameters |
Single-point brightness correction |
available |
Single-point color correction |
available |
|
Brightness (nits) |
≥1000 (color temperature 6500K) |
|
Color temperature (K) |
3200 —9300 adjustable |
|
Viewing angle (Horizontal/Vertical) |
160 drgree /160 drgree |
|
Luminous point center distance deviation |
<3% |
|
Color uniformity |
≥ 97% |
|
Contrast ratio |
4000:1 |
|
Electrical parameters |
Max power consumption |
150 W/cabinet ; 1200 W/m2 |
Average power consumption |
35 W/cabinet; 300 W/m2 |
|
Voltage range |
AC90~264V, 47-63 (Hz) |
|
Security Features |
GB4943/EN60950 |
|
Processing performance |
Frame Rate (Hz) |
50/60 Hz |
Drive mode |
Constant Current Driver, 1/30 scanning |
|
Gray levels |
16384 |
|
Refresh rate (Hz) |
≥2000 |
|
processing |
16 bit |
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
Video playback capability |
2K, 4K Ultra-high-definition video |
|
Use parameter |
Life time (hrs) |
50,000H |
Operating temperature / humidity |
-10 – 40 Celsius/ 10%-80%RH (non-condensing) |
|
Storage temperature / humidity |
-20 – 60 Celsius / 10%-85%RH (non-condensing) |
|
Certification |
CCC, TUV-CE, ETL, etc |
|
