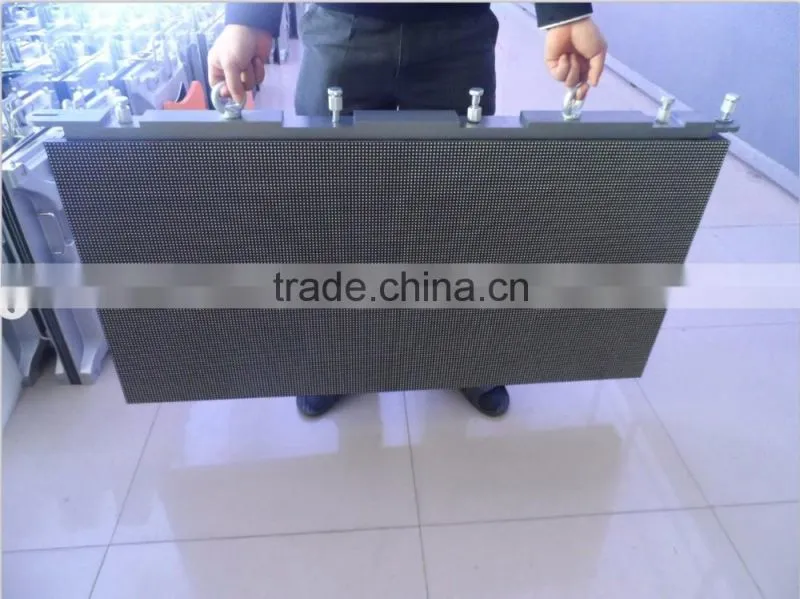

SMD3528 RGB P4mm Indoor led screen display for advertising using
1. Budget friendly product, ideal for basic rental and fixed installations.
2. Extremely close view distances and wide view angles.
3. Silent operation, little heat generated (no fans).
4. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
5. Lightweight and seamless, precision extruded aluminum section structure.
6. Real white, brilliant colors, breathtaking grayscale.
P4 indoor advertising LED screens, with very high refresh rate over 2880Hz, showing very good advertising performance, express your brand to the customer much better .
Applications:
Commercial Advertising, Stadium Perimeter, Mobile Media, Night Club, Business Establishments, Bank, Stock Exchange Centers, Bus Station, Studio, Shopping Malls, Supermarket, Railways, Airports, Harbors, etc;
Competitive Advantage:
1. High refresh rate up to 2880Hz;
2. Cost effective solution with good quality;
3. Green power consumption;
4. Life span over 100,100 hours;
5. Customized solution with professional technical team.
Pixel configuration |
SMD2020 1R1G1B 3 in 1 |
|
LEDs configuration |
Red:wave length: 625~630nm;300-400mcd |
|
Pixel pitch(mm) |
4 |
|
Pixel density |
62500 |
|
Calibrated brightness(cd/sqm,nit) |
2500 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10% |
|
Color temperature |
3,500° -9,500° K(adjustable) |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
Horizontal: 160° (80° off center); Vertical: 160° (80° off center) |
|
Readability viewing angle |
Horizontal/ Vertical: 170° (85° off center) |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>800 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP54 backside |
|
LED Drive |
Constant-current drive |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30-65' |
|
Storage temperature(Celsius degree) |
-35-70' |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Servicing |
Front and back serving optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 V AC single phase(50-60Hz) |
|
Maximum power consumption(W/SQM) |
900 |
|
Average power consumption(W/SQM) |
360 |
|
Screen operation mode(scan/static) |
1/16 |
|
Module configuration |
Length |
32 |
Height |
32 |
|
Module dimensions(mm) |
Length |
128 |
Height |
128 |
|

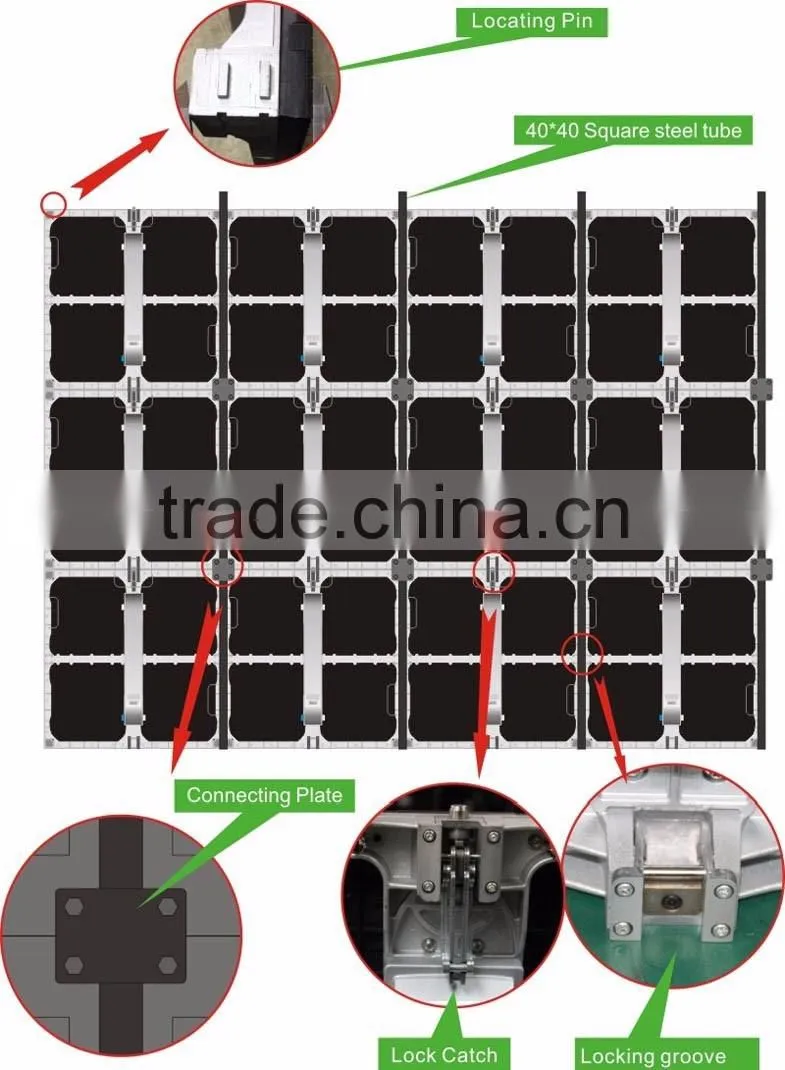

Cabinet configuration |
Length |
4 |
Height |
4 |
|
Cabinet dimensions(mm) |
Length |
512 |
Height |
512 |
|
Width |
170 |
|
Screen configuration |
Length |
4 |
Height |
3 |
|
Screen dimensions(m) |
Length |
2.0480 |
Height |
1.5360 |
|
Screen Size |
SQM |
3.1457 |
Recommend Optimal Viewing Distance: Minimum & Maximum |
Min |
2 |
Max |
54 |
|
Resolution ratio(dots/pixels) |
Length |
512 |
Height |
384 |
|
Aspect Ratio(L:H) |
1.33333 |
|
Packaging configuration |
2 standard cabinets in a packing case(1 cabinet in 1 packing case when the unit cabinet is more than 1.5SQM) |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing quantities |
6 |
|
Packing volume(CBM) |
1 |
|
Packing Dimensions(mm) |
Length |
617 |
Height |
717 |
|
Width |
520 |
|
Packing weight(KG) |
net |
118 |
gross |
159 |
|
