Full color LED display module P6 SMD RGB high resolution Indoor 1/16 scan 192*192mm 32*32 pixel LED Video Wall Screen
Company information
Shenzhen Jingcan Opto-Tec Co.,Ltd, which is professional indoor and outdoor full color LED screen manufacturer. You also can check more products on
Product application
1.Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2.Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
Our features and advantages:
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well
5.Price
No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.Protection of your sales area,ideas of design and all your private information
3.Top quality+reasonable price+responsible after service=successful & win
Trade terms
1. Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port:Shenzhen,mainland China
4. MOQ:1PC
Parameter
Description |
Technical parameter |
|
Unit module |
Module size |
192*192mm |
Pixel pitch |
6mm |
|
Pixel density |
27777dots/sqm |
|
Pixel configuration |
1R1G1B |
|
Led specification |
DIP236 |
|
Pixel resolution |
W32:dots*H:32dots |
|
Cabinet |
Dimension |
576mm*576mm*80mm |
Quantities of module |
18pcs |
|
Power supply |
3pcs |
|
Thermal discharge |
Fan*2pcs |
|
Total weight |
12kg |
|
Best viewing distance |
6-150m |
|
Temperature |
Storage: -35°C~+85°C |
|
Working: -35°C~+85°C | ||
Thickness |
12cm can adjustable |
|
Remarks: cabinet size can changed, upon project need. | ||
Power |
Working voltage |
AC220V/110V±10% |
Average power consumption |
300-400W |
|
Max. Power consumption |
≤1000W/sqm |
|
Current |
≤20mA(single LED) |
|
Control system |
CPU |
Pentium4 or above |
Operating system |
WIN98/2000/NT/XP |
|
Control method |
Synchronization |
|
Main technical parameter |
Driving device |
1/16scanning |
Drive type |
Constant Current driver IC |
|
Refresh frequency |
≥400Hz |
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
|
Brightness of white balance |
More than 8000cd/sqm |
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
|
Operating ambient humidity |
10%--95% |
|
Video signal |
PAL/NTSC |
|
Control system |
DVI display card+full color controller card |
|
MTBF |
≥10,000hours |
|
Life span |
≥100,000hours |
|
Flatness |
Tolerance of interpixel ≤0.3mm |
|
Tolerance of modules clearance≤0.6mm | ||
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Software |
LED media player |
|

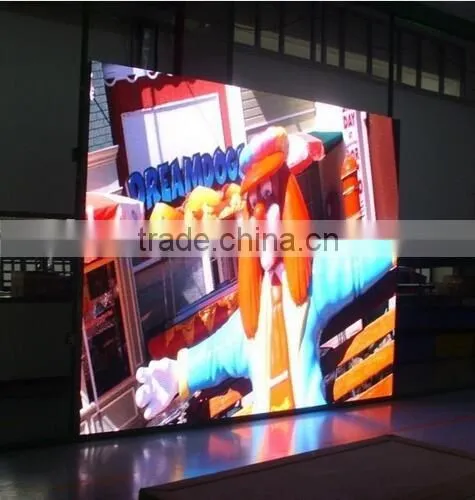

Product Picture
Packing case

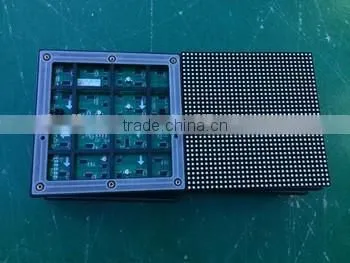

product module
Certification
