P16 RGB outdoor led wall smd new design display screens
1) Stable quality:Opto + Silan chipset;
2) High brightness:>8000 nits;
3) Scan driver:1/4 current;
4) Module size(L*W):256*256m;

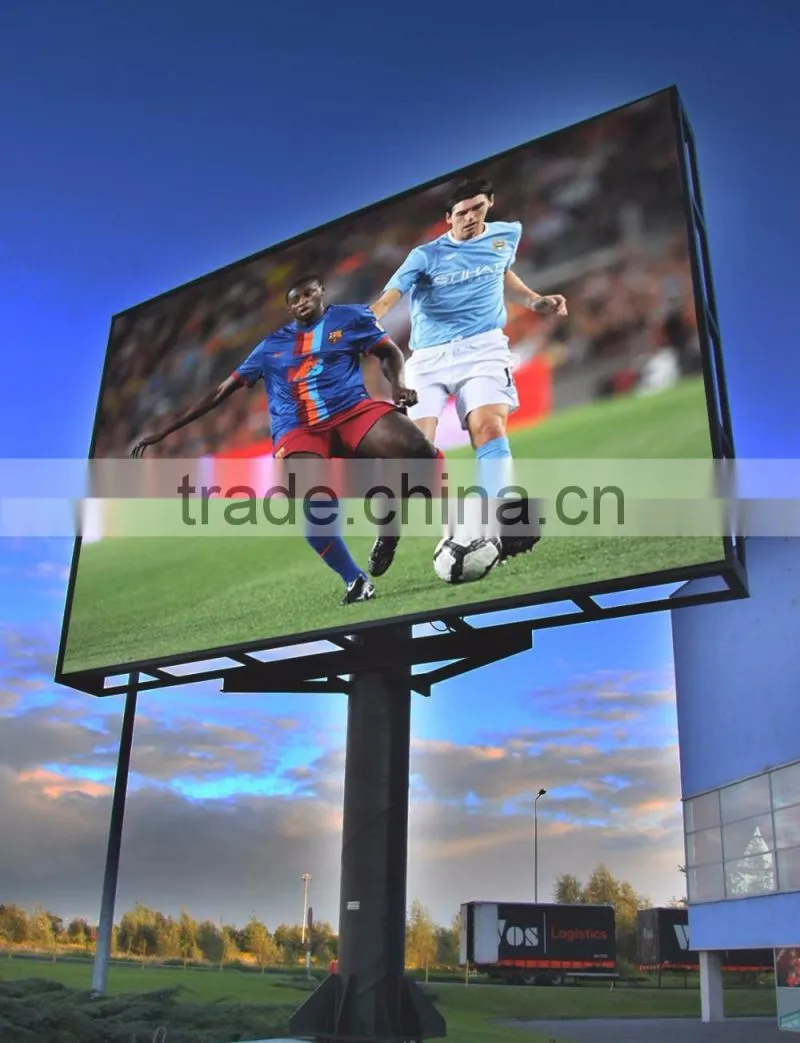

16mm pixel pitch,2R1G1B,3906 dots/sqm,P16 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P16 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc

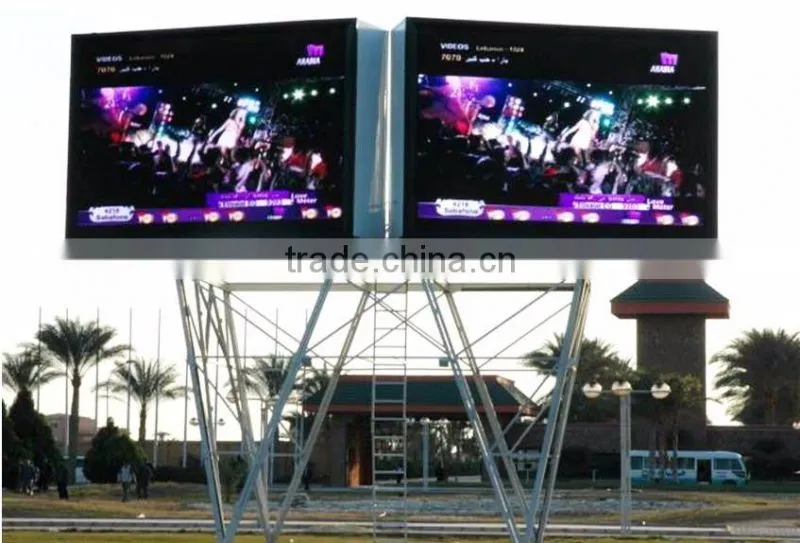

LED Display Screen Installation Structure:
Hanging ,floor type,push-in- type,wall mounting type,brace type,pillar base...
Competitive Advantages:
1) Stable quality and fast Response;
2) Short delivery,effective production;
3) Sample order,trial order be acceptable;
4) Good communication;
5) 2 years warranty;
Pixel configuration |
DIP546 2R1G1B |
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
Pixel pitch(mm) |
16 |
|
Pixel density(dots/sqm) |
3906 |
|
Calibrated brightness(cd/sqm,nit) |
8500 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
V60/H120 |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1500 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP43 back side |
|
LED Drive |
Constant-current |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
Storage temperature(Celsius degree) |
-35 ~ 70 |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Service |
Front and back service optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 VAC single phase(50-60Hz) |
|
Maximum power consumption(W/sqm) |
850 |
|
Average power consumption(W/sqm) |
400 |
|
Screen operation mode(scan/static) |
Static |
|
Module configuration(Pixels quantities of the module) |
Length |
16 |
|
Height |
16 |
Module dimensions(mm) |
Length |
256 |
|
Height |
256 |
Cabinet configuration |
Length |
64 |
|
Height |
48 |
Cabinet dimensions(mm) |
Length |
1024 |
|
Height |
768 |
|
Width |
120 (+30~35mm module) |
Aspect Ratio(L:H) |
4:3 or 16:9 |
|
Packaging configuration |
1~4 standard cabinets in a packing case |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing weight(KG) |
net |
50KG/m2 |
|
gross |
55KG/m2 |
