Shenzhen factory p5mm full color hd small led video screen rental led screen
1. Horizontal and vertical 120 degree Plus larger viewing angle than taxi LCD screens;

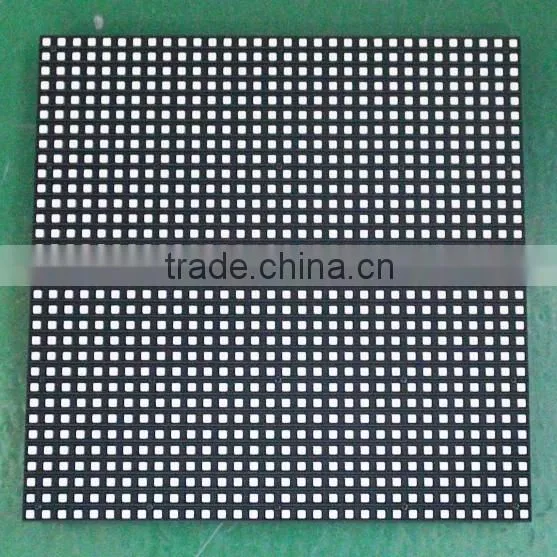

2. Standard PH5 module, W 32 x H 32 dots, W 6.3 x H 6.3 inch, 1/8 scanning, 12 modules on each sides;
3. Color temperature 3200-9300 k adjustable;
4. Less than 50LB (22kg) each set, ultra-thin and light weight design;
5. FCC/CE/TUV/ETL/RoHS certificated, both Europe and North America are satisfied;
6. It has a long lifetime of 100000 hours;
7. It can work under -40F–140F (-40-60℃) /5%-95%RH(non-condensing);
8. DC9-36V large scale of input voltage, typical value: DC12V/24V.
1. IP65 and Seamless Connection
New design, suitable for outdoor & indoor live show, brightness adjustable facing the sunshine directly, waterproof IP65. neither flick nor color blocks. Die casting aluminum cabinet size 640mm*640mm, seamless connection, 0.1mm gapline between 2 cabinets.
2. Quick and Easy Installation in 5 Seconds
Fast lock for quick and easy installation. Maximum support 50pcs hanging in a collum. Fast locks design, cabinets can be easily assemblied in 5 seconds.
3. Support All Media Format and Display Mode
Support all media format, also support DVI/HDMI/3G/HD/SD/SDI display mode, applicable for TV program, VCD/DVD and live show. Smart mode available (optional) to monitor the overall working hours and temperature of each cabinet. Hotplug in power supply.
4. Cost Saving for Installation and Maintenance
Dual-maintenance, fanless, noiseless, low power comsumption.Vertical / Horizontal viewing angle 140 degree.
R chip (wavelength range: 620-630nm, 5nm) |
Brightness range: 500-900mcd |
|
G chip (wavelength range: 460-470nm, 4nm) |
Brightness range: 1200-1500mcd |
|
B chip (Wavelength range: 520-530nm, 4nm) |
Brightness range: 300-450mcd |
|
Module |
Led configuration |
SMD 3 IN 1: SMD2525/SMD3528 |
Pixel pitch (mm) |
5mm(0.2 inch) |
|
Module resolution (W X H) |
W 32 x H 32 dots |
|
Module dimension(W x H inch) |
W 6.3 x H 6.3 x D 0.67 inch |
|
Cabinet |
Module quantity(W × H) |
W 6 × H 2, per side |
Cabinet resolution(W × H) |
W 192 × 64 dots, per side |
|
Cabinet dimension(W x H inch) |
W 37.80 x H 12.60 inch per side |
|
Cabinet surface area(sq.ft) |
3.31 sq.ft / (0.31sq.m) per side |
|
Physical pixel density(dots/sq.ft) |
3716dots/sq.ft(40000dots/) |
|
Brightness |
≥465CD/sq.ft (5000CD/) |
|
Cabinet flatness(inch) |
≤0.08inch (0.2mm) |
|
Maintenance |
Back-maintained |
|
Cabinet material |
Aluminum |
|
Cabinet weight |
≤48.5lb (22kg) |
|
Optical parameters |
Single-point brightness correction |
available |
Single-point color correction |
available |
|
Color temperature(K) |
3200—9300 adjustable |
|
Horizontal viewing angle |
120° |
|
Viewing angle (Vertical) |
120° |
|
Brightness Uniformity |
<3% |
|
Color uniformity |
≥97% |
|
Contrast ratio |
5000:1 |
|
Electrical parameters |
Max power consumption |
580W per unit of taxi led screen |
Average power consumption |
180-240W per unit of taxi screen |
|
Power supply |
DC9-36V |
|
Security Features |
GB4943/EN60950 |
|
Drive mode |
Constant Current Driver, 1/8 scan |
|
Gray scale level |
10 bit |
|
Refresh rate(Hz) |
≥960 |
|
Processing |
≥14 bit |
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
Use parameter |
Life time(hrs) |
100,000 hours |
Operating temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
Storage temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
Certification |
CCC/FCC/TUV/CE/ETL |
|
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
