Sports Outdoor Full Color LED Display Advertising Panel P16 mm 400 W/SQM IP65 1R1G1B
1) Stable quality:Opto + Silan chipset;
2) High brightness:>6500 nits;
3) Scan driver:static current;
4) Module size(L*W):256*256m;
16mm pixel pitch,1R1G1B,3906 dots/sqm,P16 Outdoor Full Color LED Display Screen creates high brightness and energy saving,display variable video resources,animations,messages to attract attention. We can see P16 Outdoor Full Color LED Display Screen in many occasions,like Sports,advertising,traffic,entertainment,stage,events,stations,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc.
Applications Occasions:
Sports,advertising,traffic,entertainment,stage,events,stadium,train station,bus station,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, etc
Pixel configuration |
DIP346 1R1G1B |
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
Pixel pitch(mm) |
16 |
|
Pixel density(dots/sqm) |
3906 |
|
Calibrated brightness(cd/sqm,nit) |
8500 nits(adjustable) |
|
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
|
Contrast ratio |
4,500:1 |
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
View angle(degree)(50% brightness) |
V60/H120 |
|
Color capability |
4.4 trillion |
|
Refresh rate(Hz) |
>1500 Hz |
|
Frame frequency(Hz) |
>60 Hz |
|
Interface port |
DVI interface(DVI connector) |
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
Protection grade |
IP65 front side/IP43 back side |
|
LED Drive |
Constant-current |
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
Signal transmission direction |
Horizontal |
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
Storage temperature(Celsius degree) |
-35 ~ 70 |
|
Operation humidity(RH) |
0-95% |
|
Operation humidity(RH) |
0-99% |
|
Service |
Front and back service optional |
|
Control mode |
Synchronous & asynchronous available |
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
Power |
120/240 VAC single phase(50-60Hz) |
|
Maximum power consumption(W/sqm) |
850 |
|
Average power consumption(W/sqm) |
400 |
|
Screen operation mode(scan/static) |
Static |
|
Module configuration(Pixels quantities of the module) |
Length |
16 |
|
Height |
16 |
Module dimensions(mm) |
Length |
256 |
|
Height |
256 |
Cabinet configuration |
Length |
64 |
|
Height |
48 |
Cabinet dimensions(mm) |
Length |
1024 |
|
Height |
768 |
|
Width |
120 (+30~35mm module) |
Aspect Ratio(L:H) |
4:3 or 16:9 |
|
Packaging configuration |
1~4 standard cabinets in a packing case |
|
Packing material |
Wooden case/carton/flight case(optional) |
|
Packing weight(KG) |
net |
50KG/m2 |
|
gross |
55KG/m2 |

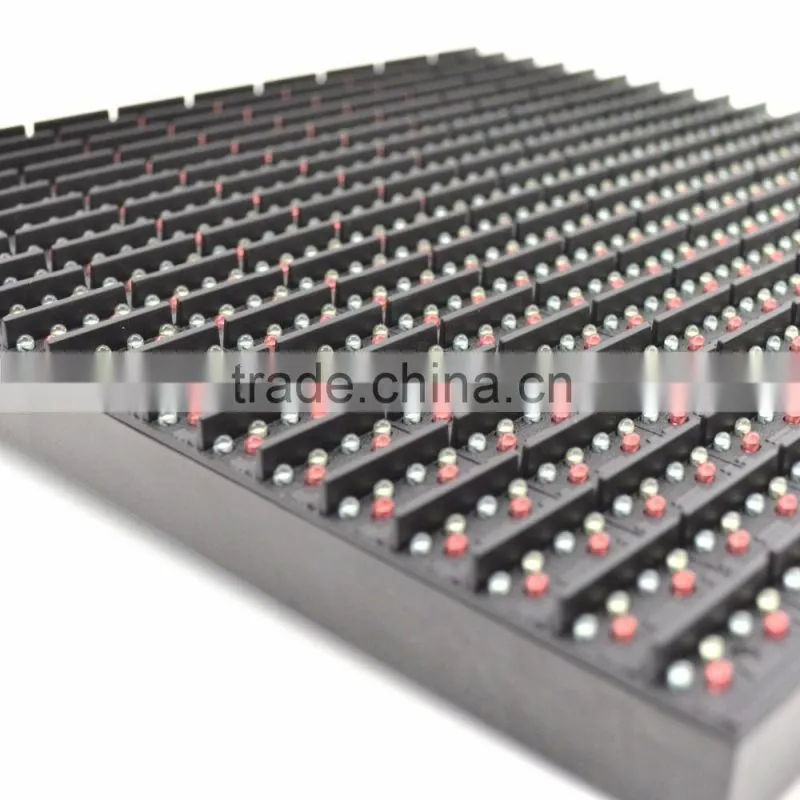

LED module Photo:

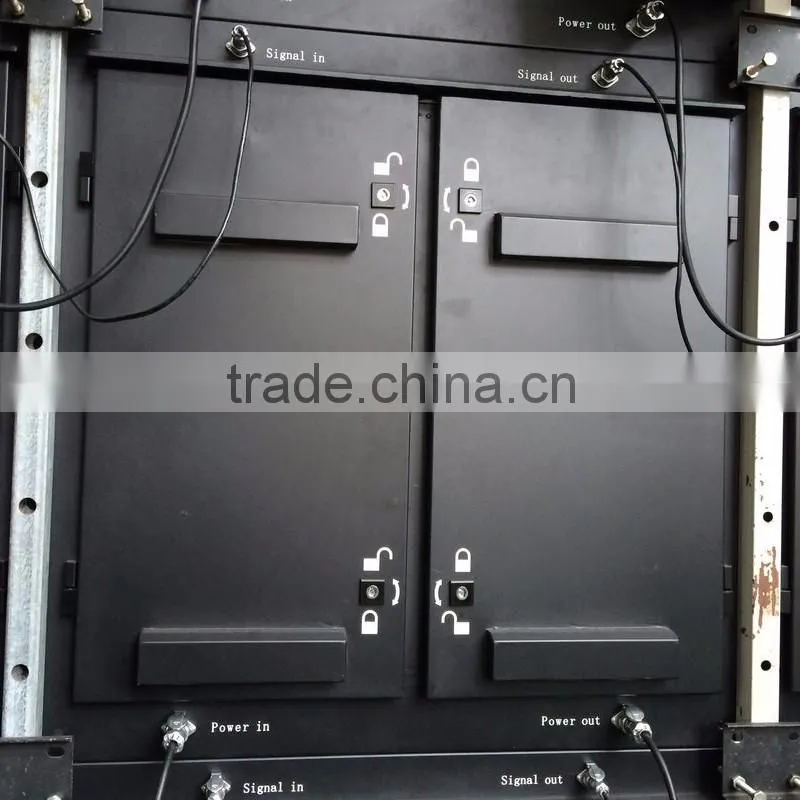

LED cabinet Photo:

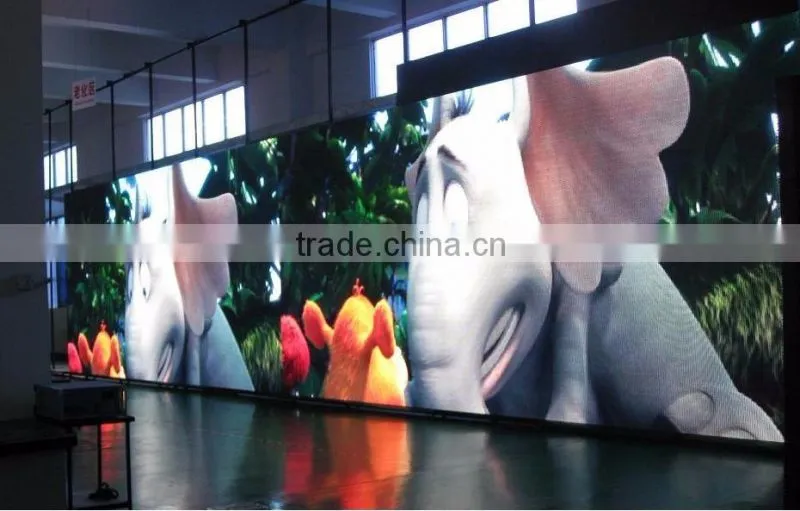

LED screen lighting effect:

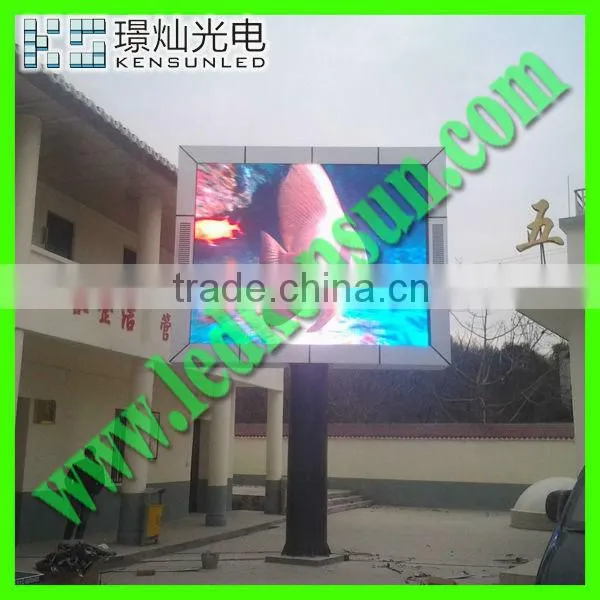

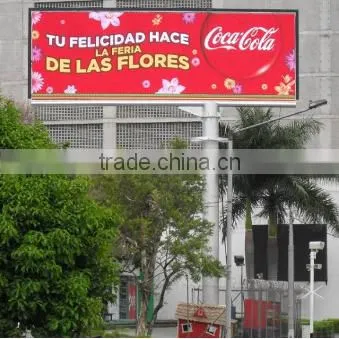

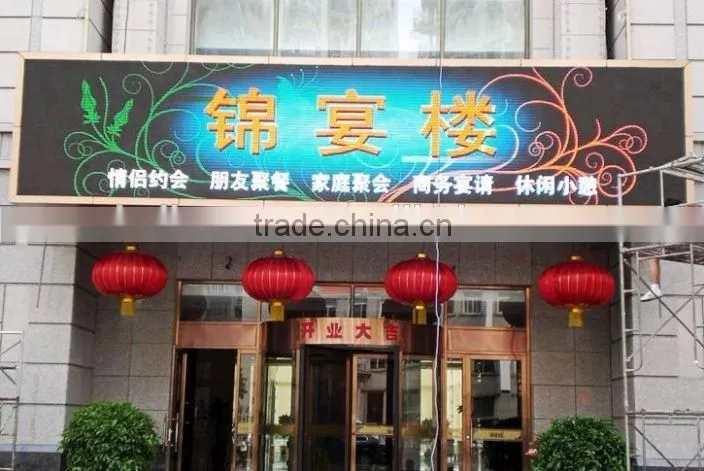

LED application effect:
Usually, there are three tyeps of package design.
Firstly, we pack the LED display in the paper carton.
Secondly, we will pack the LED display in the flight case if customer request for frequent movement.
Thirdly, the favorable package method is wooden case package because of its lower cost and instant usage.
