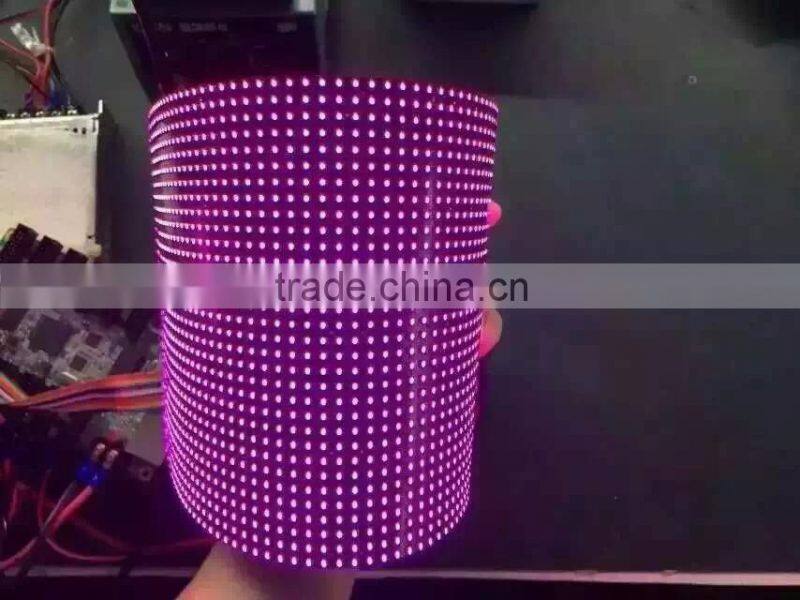

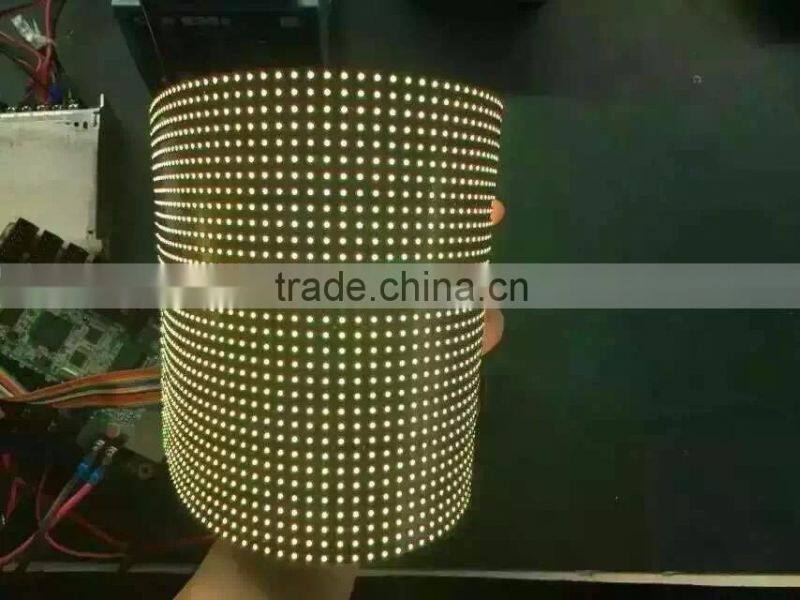

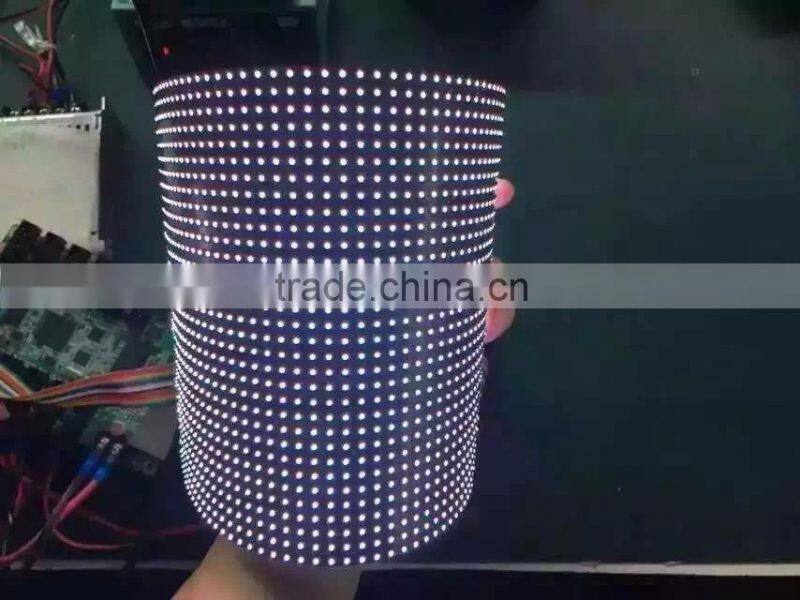

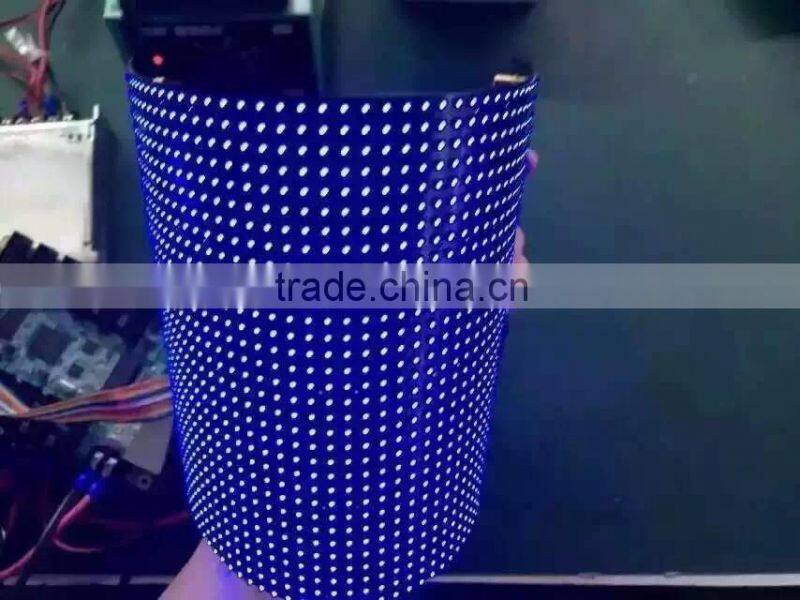

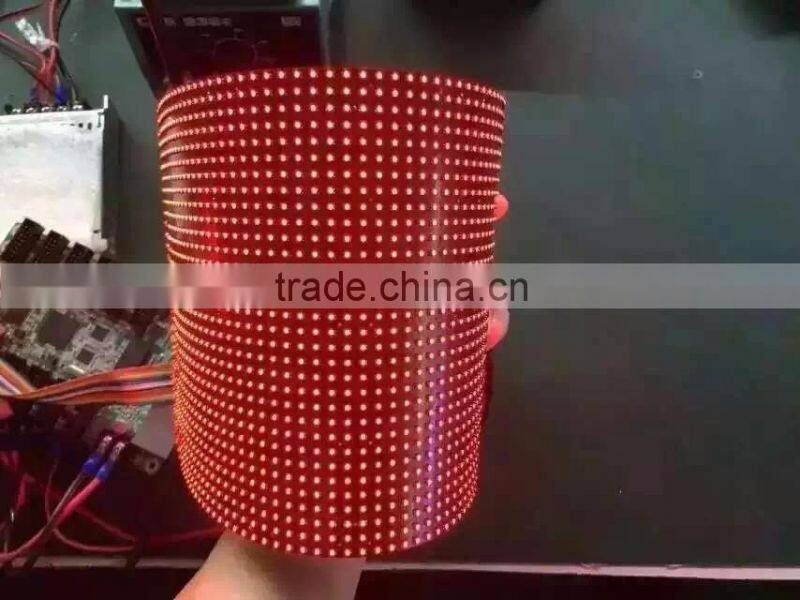

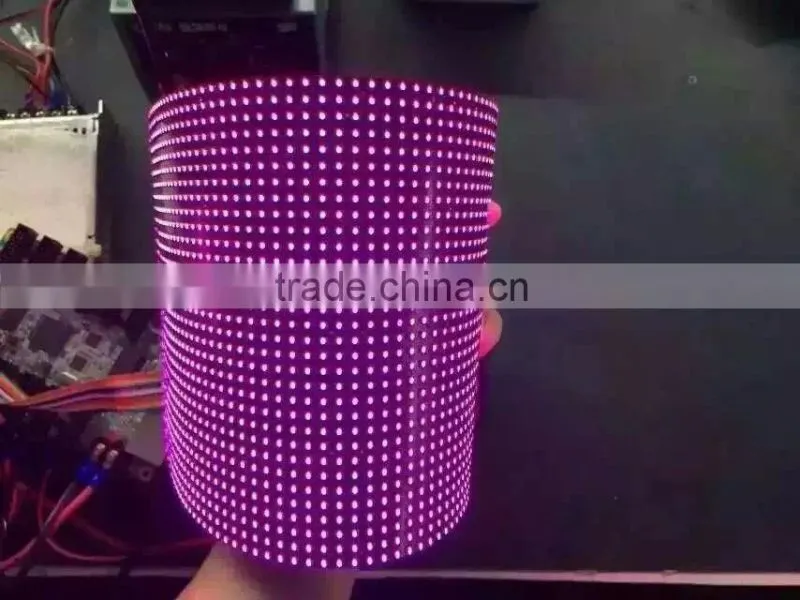

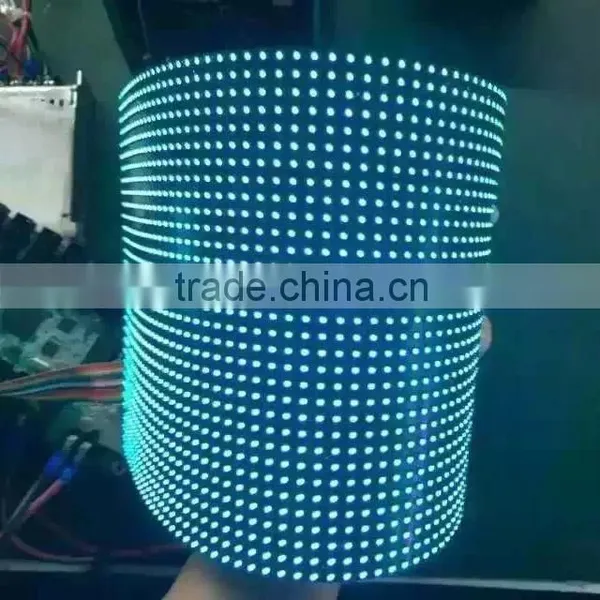

P10mm SMD 3in1 Flexible led screen panel led modules
1. CE RoHS certificate
2. 36 months warranty and Life long free tech-support
3. Excellent contrast ratio, high resolution/high definition
4. Perect uniformity and no mosaic
5. Light weight and easy to install
6. Available models:P4, P5, P6 P7.62, P8, P10, 12, ect.
Commercial advertising, Stadium perimeter, mobile media, night club, entertainment events, business establishments, such as banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, etc;

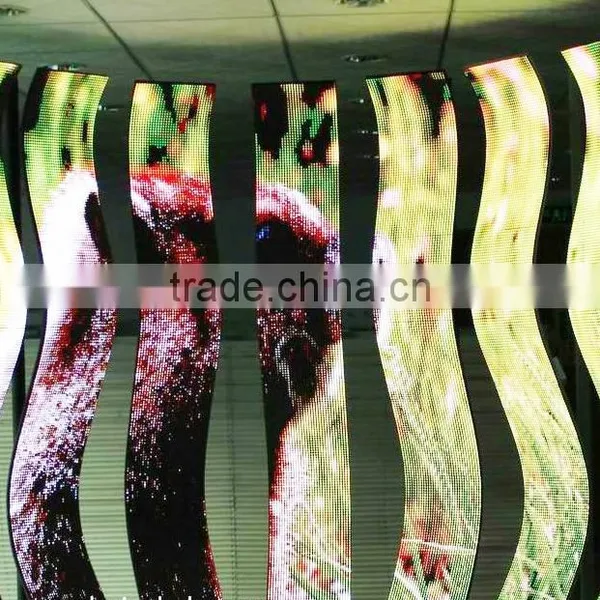

1 soft LED display (perfect for rental advertising)
Super thin ( easy to delivery, operation, and display)
Super light ( good for advertising outdoor, indoor, best moving advertiisng)
Collapsible ( you can not image such a big LED display could put in you car)

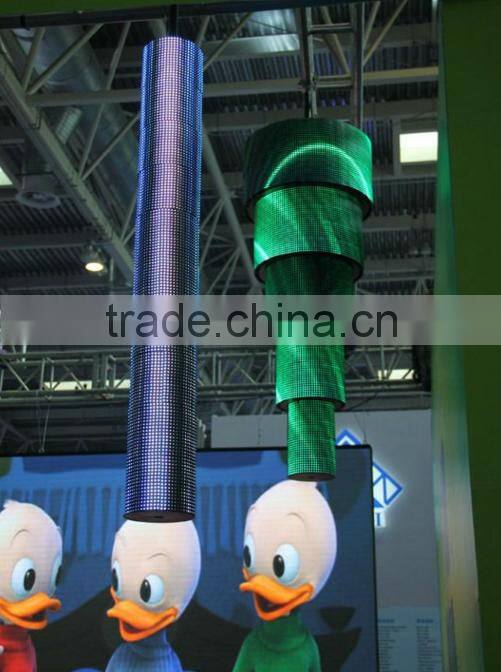

2 Arc LED display (perfect for fixed display)
Reliable quality ( long lifetime as 100, 000hours )
Unbeliveable effect ( even P4 LED display is also available, it need high skilled operation)
360 degree viewing ( no matter where you are, Your Uocolor LED display could give your best display effect)
High brightness+ contrast ( can you image your indoor LED display could bright as outdoor LED display? Uocolor could
Flexible LED is our dominant product, not only for the advertiising, our LED also could display the best effect for the stadium and shopping center, for get the widely viewing and best display effect
This is a sample design for your reference.
Terms of price: FOB Shenzhen
Terms of payment: 30% T/T as deposite
Lead time: 20 days after receiving the deposite
Certificate: CE and RoHS
Warranty: Two years
Colour temperature |
5000~9000 k |
Pixel structure |
SMD 1R1G1B |
Pixel pitch |
10mm |
Pixel density |
10, 000 dots |
Luminance |
2, 500cd |
Module dimension |
320mm(W) * 160mm(H) |
Module resolution |
32 pixel(W) * 16 pixel mm(H) |
Cabinet dimension |
1280 * 960mm |
Cabinet resolution |
128 * 96 |
Cabinet area |
1.229 sq. meter |
Optimal visual distance |
>10m |
Visual angel |
110 / 50 degree (H/V) |
Max power consumption |
≤1200w |
Average power consumption |
450W |
Brightness adjustment |
Adjust according to the environment |
brightness software (0%-100%adjustable) | |
Gray scale |
point by point 4096 gray grade levels of |
each color, 16 bits γ correction available | |
Drive mode |
1/4 dynamic scan, constant current |
Frame frequency |
≥60HZ |
Refresh frequency |
≥1000HZ |
Input voltage |
AC 90~260 volts |
Operation temperature |
- 40℃~ +65℃ |
Operation humidity |
10%~90% |
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
Control system |
DVI card + master control card + receiver card |
MTBF |
>5000 hrs |
Life span (50% brightness) |
100, 000 hrs |
Malfunction dot rate |
1/10000 |
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
Cabinet material |
Epoxy paint coated, aluminum / iron |
Application: |
Rental / Permanent installation available |
