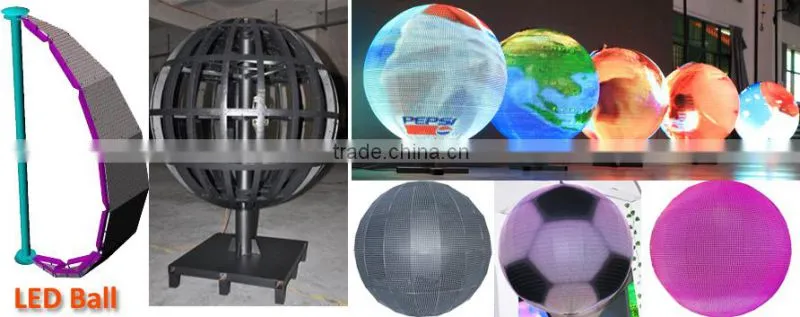

JINGCAN audio video p6 indoor LED BALL DISPLAY
Quick Details
1. JINGCAN p6 indoor full color led display size:192mm*96mm
2. Brightness:1500cd/sqm
3. Pixel density:27777dots/sqm
4. Average Power:185w/sqm
5. IP rate: IP67 full waterproof
6. Design life:100000hours
Feature and Advantage
1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system
2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system
3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof your LED display screen's investment.
4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Our service
1.Your inquiry related to our products or price will be replied in 24hrs
2.OEM&ODM,any your customized lightings we can help you to design and put into product
3.Distributoership are offered for your unique design and some our current models
4.Protection of your sales area,ideas of design and all your private information
5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win
6. Export countries : Peru, Mexico, Colombia, Turkey, US, UK, etc.
Trade Terms
1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery
2.Shipping freight are quoted under your requests
3.Shipping port: Shenzhen, Mainland China
4.MOQ:1sqm
5.Delivery time: 10-15days after receive pre-payment
LED Screen Parameter
Name |
Technology Specifications |
Physical Index |
Pixel: 6mm |
Color: Red+Green+Blue | |
Pixel Configuration: 1R1G1B | |
Pixel density: 27778dots/sqm | |
LED Type : SMD3528 | |
Module |
Panel pixel(dots): 98000dots |
Modul size: irregular | |
Screen |
Viewing: 360° |
Storage Temperature: -40°C~~+65°C | |
Operated temperature:-40°C~~+60°C | |
Humidity:10%-95% | |
Screen thickness:cabinet thickness 12cm(Front Maintenance) | |
Protection: IP31 | |
Power Supply |
Power: AC220Vor 380V |
Max power consumption: 1200W/sqm average 500W/ sqm | |
Control System |
Computer: DELL V230 or similar computer |
Operating System: WIN7/2000/XP | |
Display Card: DVI | |
Control mode:synchronization control | |
Refresh frequency:≥2000Hz | |
Grey/Color:16K,4K(Optional)/16.7M colors | |
Calibrate Brightness:256level adjust | |
Control System Adopts:DVI+Master card+ Internet line | |
Main Specifications |
Driver: Constant current |
Driver Mode: 1/8 scan | |
Frame Frequency:≥60Hz | |
Brightness: ≥2000cd/sqm | |
Accepting Signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc | |
MTBF: ≥1000hours; Life-span: 100,000hours | |
Level Up Degree: pixel≤0.5mm;module<1mm | |
Uniformity: pixel and module uniformity brightness | |
Malfunction Dot Rate: <0.0001 | |
Switch Power Load: 5V / 40A | |
Computer Display Mode: 1024×768 | |
Control Distance: internet line : 100m; single mode fiber: 20km; multi mode fiber: 500m |
LED Control system diagram
LED display certificates
p6 indoor full color led display Working factory:
Applications:
Send Inquiry to This Supplier
