P5 Outdoor Advertising LED Display Board Price

P5 Outdoor Advertising LED Display Board Price thumbnail-1
P5 Outdoor Advertising LED Display Board Price thumbnail-2
P5 Outdoor Advertising LED Display Board Price thumbnail-3
P5 Outdoor Advertising LED Display Board Price thumbnail-4
P5 Outdoor Advertising LED Display Board Price photo-1

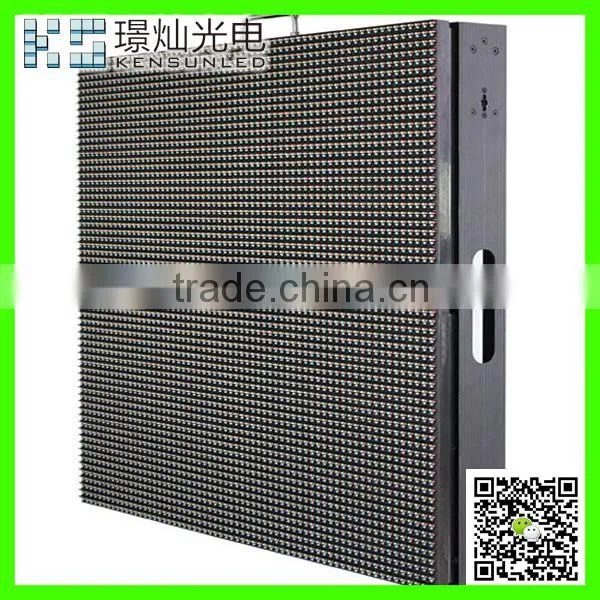

P5 Outdoor Advertising LED Display Board Price photo-2

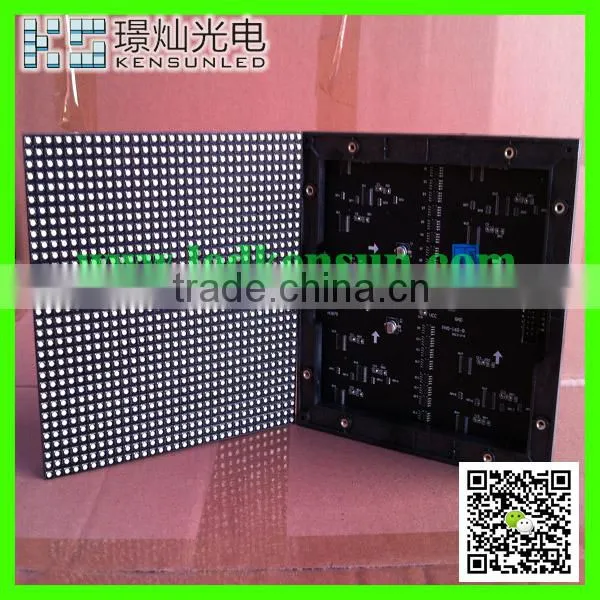

P5 Outdoor Advertising LED Display Board Price photo-3
P5 Outdoor Advertising LED Display Board Price photo-4
US$ 1,560 - 1,985 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JC
Model Number:
JC-FSO-PH5MM
Contact Supplier Request Quote Chat Now
Shenzhen Jingcan Opto-Tec Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JC
Model Number JC-FSO-PH5MM
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, 5mm
Screen Dimension 5m*3m

P5 outdoor advertising LED display board price

Feature and Advantage

1.P5 outdoor advertising LED display board price

2.led display board use First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.led display board has Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4.led display board   has Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Has CE Certificantion with Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.



Our service





1.Your inquiry related to our products or price will be replied in 24hrs

2.OEM&ODM,any your customized lightings we can help you to design and put into product

3.Distributoership are offered for your unique design and some our current models

4.Protection of your sales area,ideas of design and all your private information

5.Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6. Export countries :  Peru,  Mexico, Colombia, Turkey, US, UK, etc.



Trade Terms



1.Payment: T/T 35% as deposits before production, T/T 65% balance before delivery

2.Shipping freight are quoted under your requests

3.Shipping port: Shenzhen, Mainland China

4.MOQ:1sqm p7.62 one line english led message signboard

5.Delivery time: 10-15days after receive pre-payment



LED Screen Parameter



Technical DataModel PH5
Pixel Pitch 5mm
Physical Density(pixels/m²) 40000
LED Shape & Size SMD3 in 1
LED Arrangement 1R1G1B
Module Size(mm) 160×160
Module Resolution 32*32
Drive Mode Dynamic 1/8 Duty Constant Current
Brightness ≥6500cd/m²
Contrast(cd/m²) ≥2000:1
View Angle, 50% Brightness 140°/140°
Minimum View Distance 5m
Grey Scale 10bits/1024levels
Color Capacity 1.07billion
Maximum Power Consumption 860W/m²
Ave.Power Consumption 280W/m²
Operation Power Source AC90-260V 50-60HZ
Frame Frequency 60-85HZ
Refresh Rate 240-1000HZ
Brightness Adjustment 0-100% 8 levels automatic
Gamma Correction -5.0-5.0
Correction Scale Level 16bits
Color Temperature 5000-9300K
Brightness Correction Pixels, Module, Cabinet Correction
Input Source Support Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature -40°C - 65°C
Operating Humidity 10-90%RH
Operating Life Span 100,000Hours
MTBF 5000 Hours
Protection Ratings IP31
Out of Control Rate 0.01%

 P5 outdoor advertising LED display board price
