Help CenterWhole Good Price Stone Double Roll Crusher
Related Products

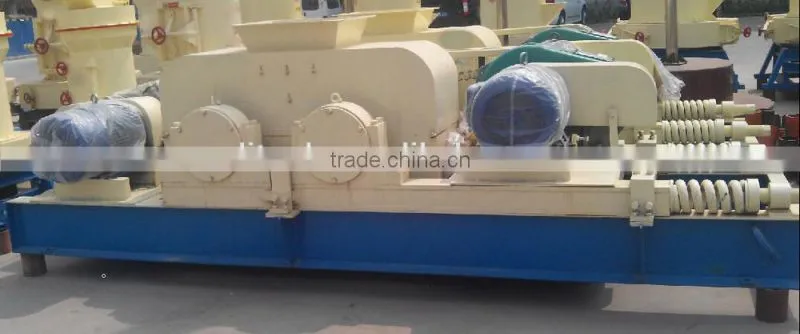

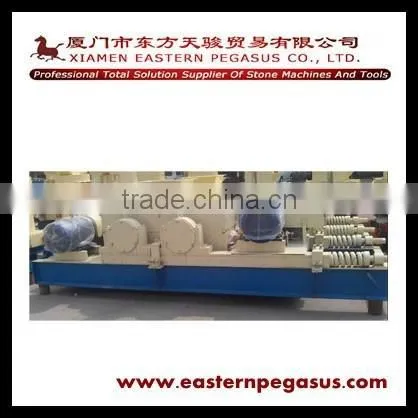

Stone crushing machine roll crusher
The main structure of the gear drives have a fixed roll and active roll, drive shaft, body, chassis, housings, long gear casing and other components, the machine power is spread by the triangle on the motor pulley, then through a pair of intermediate deceleration gear so that rotation of the fixed roller, again with the fixed roll the other end of a long gear drive active roll, the two roll into the relative motion of the extruded material.
| Model | 2PG400 × 250 | 2PG610 × 400 | 2PG700 × 400 | |
| Roller diameter (mm) | 400 | 610 | 700 | |
| Roller length (mm) | 250 | 400 | 400 | |
| The maximum feed size (mm) | ≤ 25 | ≤ 85 | ≤ 100 | |
| Size of outputting feed (mm) | 2-8 | 0.5-30 | 0.5-30 | |
| Production capacity (t / h) | 5-10 | 13-40 | 10-100 | |
| Number of rollers | 2 | 2 | 2 | |
| Roller speed (r / min.) | 180 | 75 | 95 | |
| Total weight (t) | 2.2 | 5.9 | 9.8 | |
| Machine dimensions (L × W × H) (mm) | 1 215×834× 830 | 3700×1600×1100 | 4300 × 1200×1200 | |
| Supporting motor | Power (kw) | 5.5 × 2 | 15 × 2 | 30 × 2 |
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
