TJ-S 150 Stone machine, stone hydraulic press machine, stone splitting machine
Technical datas
Saw-cut face stone splitting and stamping machine.
With this machine, you can split the big size stone into smaller cubic stone, also with different types of modls, it can get many shapes of paving stone.
| MODEL | TJ-S150 | |
| overall diamension | MM | 1950*1650*1900 |
| Weight | T | 1.5 |
| Power | KW | 7.5 |
| Voltage | V | 380 |
| Frequency | HZ | 50 |
| Flow Rate | L | 41 |
| Pressure | T | 100 |
| Biade feeding speed | CM/S | 5 |
| Maximum Trip | MM | 300*600 |
| Minimum Trip | MM | 30 *60 |
| Output Hour | m2 | 20 |
| Hydraulic Oil Grade | 46# | |
| Oil Tank Capacity | KG | 110 |
| Applicable Moulds | Splitting Mould Stamping Mould |
These machines can stamps for pavements in granite and marble, produce excellent floor tiles and external wall tiles with different shapes according to the size of your stone!

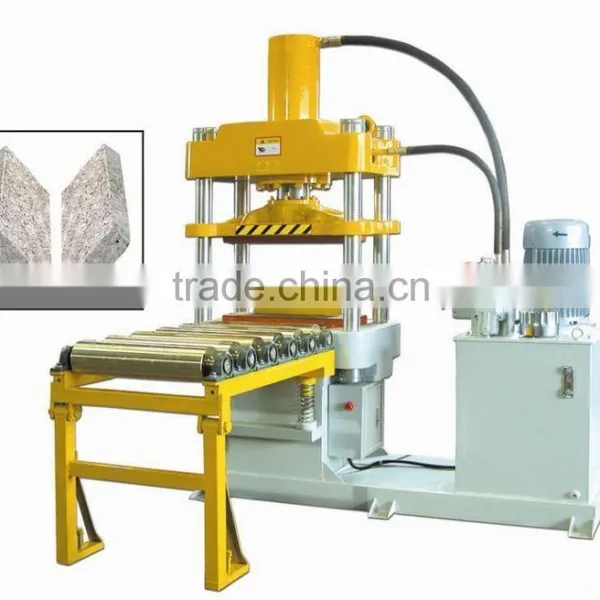

Machine photos gets different sizes and kinds of stone splitter.
TJ-S40/50 Abnormal stone hydraulic pressing machine
TJ-S72/74/85 Multi-functional stone splitting machine
TJ-S90/95/200/240 Stone splitting machine
TJ-S100/150 Multi-functional stone splitting machine.

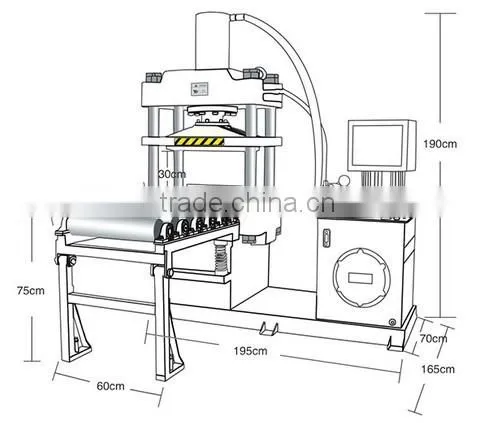

Splitting hydraulic machine overall drawing:
Machine wokring photos for reference:
The block before cutting.
Cut first stone out.

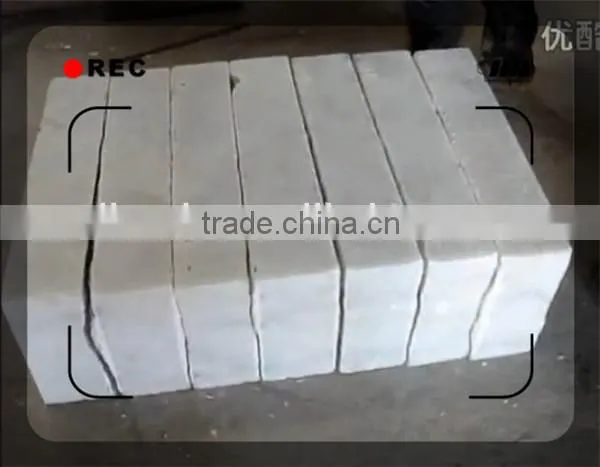

After Cutting.
Final product photos for reference:
Exhibition:
We have attended many fairs since the year of 2006, Xiamen stone fair, Russia stone fair, Turkey stone fair, India stone fair, Brazil stone fair, Vietnam stone fair, etc.
Welcome to come and visit our booth next time.
Company location
Xiamen, China, it is a beautiful city for living and working.
Sales Territory
We have sent the products to over 75 different countries till now. Please check whether your country is one of them.
Contact way
Please always feel free to contact us anytime, we will reply you soon.
