Different series double blade cutter mining equipment
- 50 Set / Sets per Month
- Xiamen port
- T/T Credit Card
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Place of Origin: | Fujian, China | Brand Name: | TIAN JUN | Model Number: | TJSN Double Blade Stone Cutter |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2015 TJSN Double Blade Stone Cutter structural characteristic, marble machines for sale .
The double blade cutting machine is a modification of original double-blade mining machine.the rising and failing of main spindle is controlled by the hydraulic pressure of the oil cylinder,with four cylinders as the guide rail.the main advantages are small gap,a little wear,no vibration,stable structure and high cutting precision,the service life of cutter head is increased.
The cylindrical guide rail is fully sealed to ensure that the guide rail is pollution-free and the machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.it is a mine quarrying machine with significantly increased comprehensive benefits.
Machine for quarry block cutting: different sizes offered.
Technical Data:
Name | Unit | TJSN-1360/1900 | TJSN-1500/2000 |
Diameter of blade | mm | 2200-3600 | 2200-3600 |
Scope of cutting depth | mm | 850-1550 | 850-1550 |
Scope of cutting width | mm | 1360-1900 | 1500-2000 |
Power of main-drive | kw | 45*2 | 45*2 |
Water consumption | m3/h | 5 | 5 |
Total power | kw | 97.7 | 97.7 |
Approximate weight | kg | 6500-8000 | 6500-8000 |
Overall dimension(L*W*H) | mm | 3600*1500*2700/3000 | 3600*1700*2700/3000 |
Name | Unit | TJSN-1950/2450 | TJSN-2600/3100 |
Diameter of blade | mm | 2200-4800*2 | 2200-4800*2 |
Scope of cutting depth | mm | 850-2200 | 850-2200 |
Scope of cutting width | mm | 1950-2450 | 2600-3100 |
Power of main-drive | kw | 45/55*2 (blades size upto 4m, should get 55KW motor) | 45/55*2 (blades size upto 4m, should get 55KW motor) |
Water consumption | m3/h | 5 | 5 |
Total power | kw | 98.5/118.5 | 98.5/118.5 |
Approximate weight | kg | 9500-10500 | 10500-12500 |
Overall dimension(L*W*H) | mm | 4200/5100*2100*3100/3650 | 4200/5100*2700*3100/3650 |
Machine advantage:
1. After cutting, the quarry surface will be more tidy.
2. Less stone waste.
3. Total lower investment for the whole project.
4. Faster work, higher efficiency.
5. Easier operation.
Machine working way:
First set up the rails stable on the ground, then put the machine working on it, after cutting the four sides of block, you can use the diamond wire saw machine for cutting the bottom of block, then get the block you need.

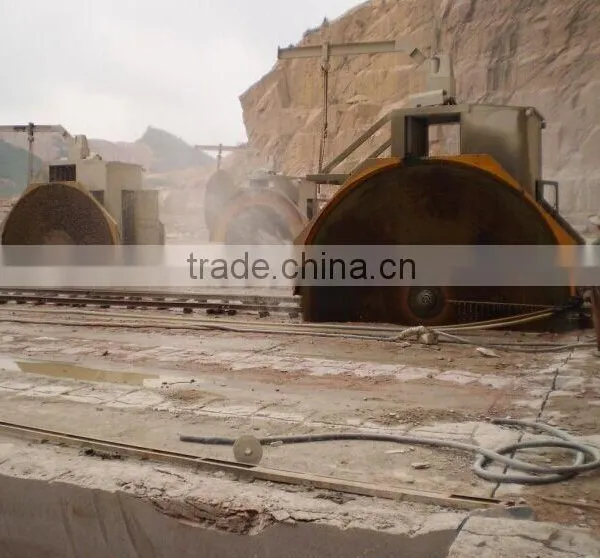

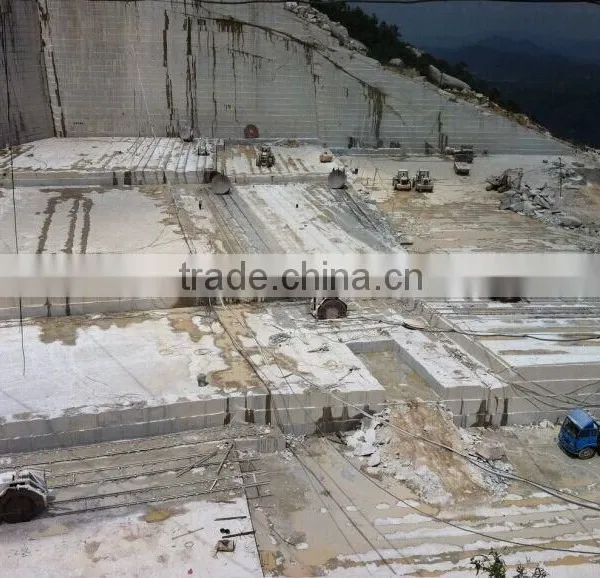

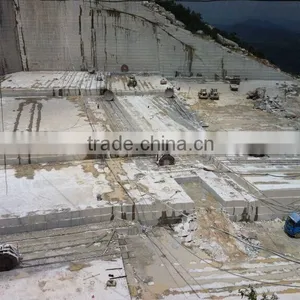

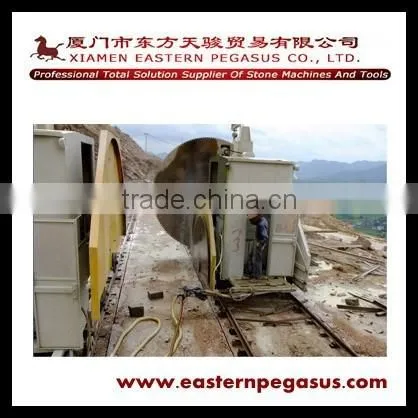

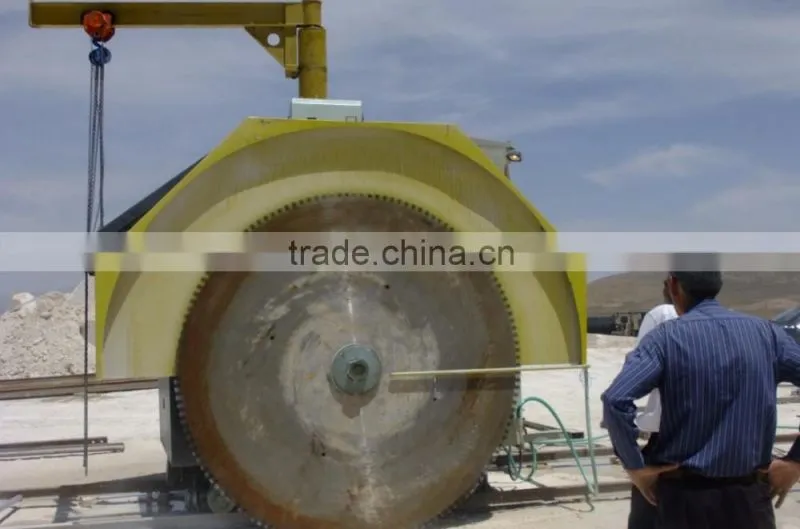

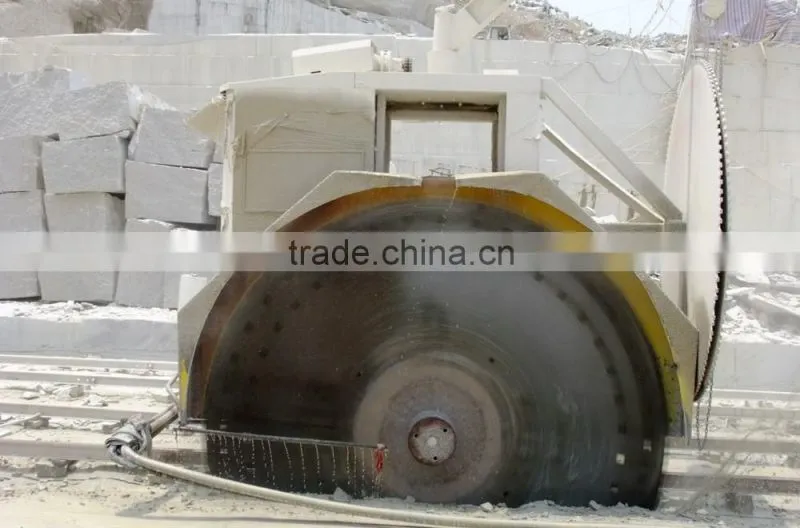

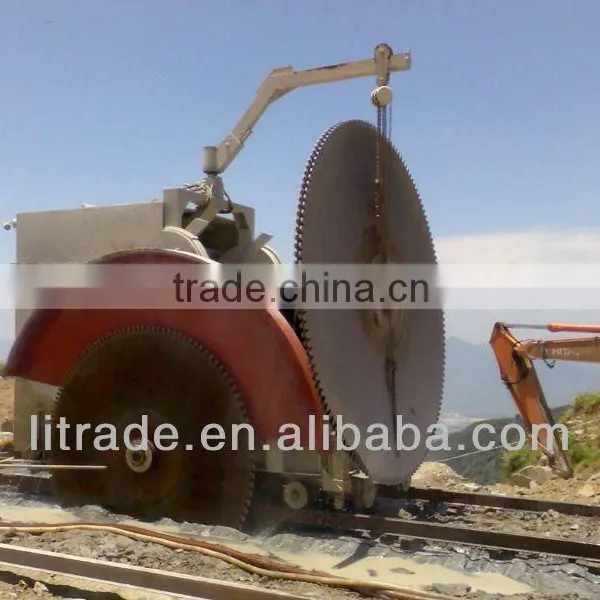

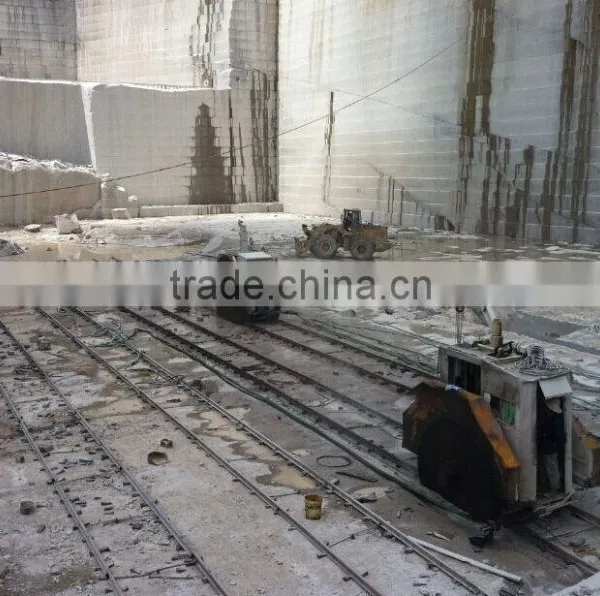

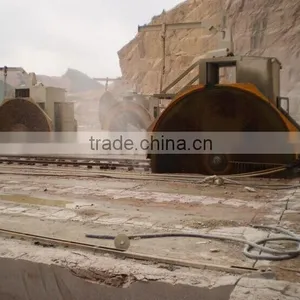

Machine photos:
Machine loading in container:
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
