TJSN Double Blade Stone Cutting Machine for Mining Work
The double blade stone cutting machine is a modification of original double-blade mining machine.the rising and failing of main spindle is controlled by the hydraulic pressure of the oil cylinder,with four cylinders as the guide rail.the main advantages are small gap,a little wear,no vibration,stable structure and high cutting precision,the service life of cutter head is increased.
Both for marble and granite quarry work.
The cylindrical guide rail is fully sealed to ensure that the guide rail is pollution-free and the machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.it is a mine quarrying machine with significantly increased comprehensive benefits.
Machine for quarry stone cutting: different sizes offered, based on the block sizes you want to get.
Name |
Unit |
TJSN-1360/1900 |
TJSN-1500/2000 |
Diameter of blade |
mm |
2200-3600 |
2200-3600 |
Scope of cutting depth |
mm |
850-1550 |
850-1550 |
Scope of cutting width |
mm |
1360-1900 |
1500-2000 |
Power of main-drive |
kw |
45*2 |
45*2 |
Water consumption |
m3/h |
5 |
5 |
Total power |
kw |
97.7 |
97.7 |
Approximate weight |
kg |
6500-8000 |
6500-8000 |
Overall dimension(L*W*H) |
mm |
3600*1500*2700/3000 |
3600*1700*2700/3000 |
Name |
Unit |
TJSN-1950/2450 |
TJSN-2600/3100 |
Diameter of blade |
mm |
2200-4800*2 |
2200-4800*2 |
Scope of cutting depth |
mm |
850-2200 |
850-2200 |
Scope of cutting width |
mm |
1950-2450 |
2600-3100 |
Power of main-drive |
kw |
45/55*2 (blades size upto 4m, should get 55KW motor) |
45/55*2 (blades size upto 4m, should get 55KW motor) |
Water consumption |
m3/h |
5 |
5 |
Total power |
kw |
98.5/118.5 |
98.5/118.5 |
Approximate weight |
kg |
9500-10500 |
10500-12500 |
Overall dimension(L*W*H) |
mm |
4200/5100*2100*3100/3650 |
4200/5100*2700*3100/3650 |
Machine working way:
First set up the rails stable on the ground, then put the machine working on it, after cutting the four sides of block, you can use the diamond wire saw machine for cutting the bottom of block, then get the block you need.
Widely used in local Chinese quarry work, and hot selling to Russia, Saudi Arabia and other countries, hope can be well used in your mining work as well.

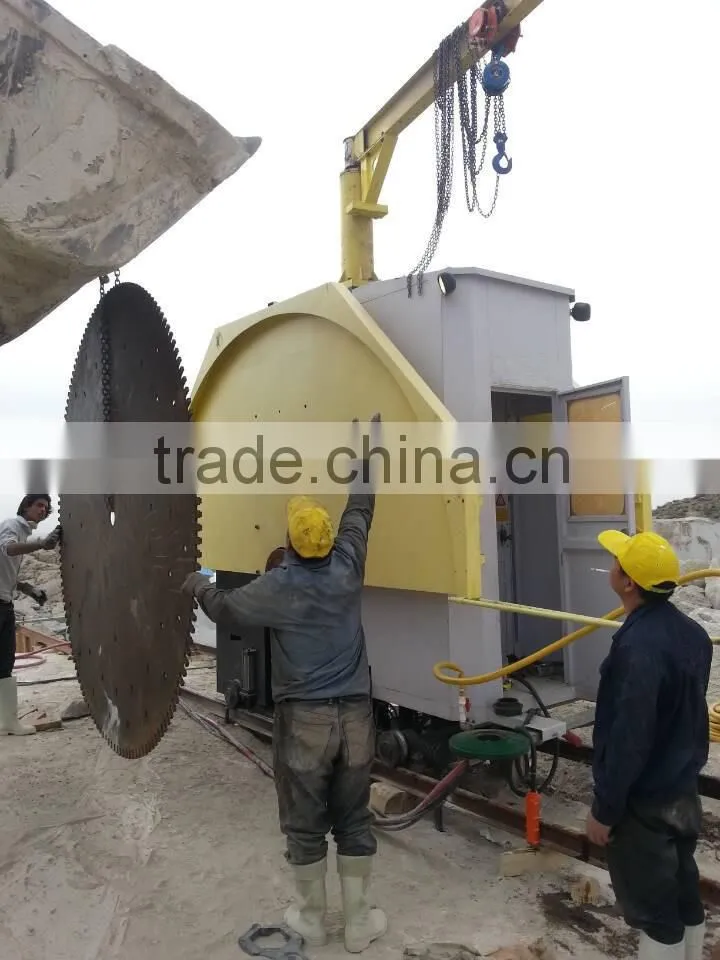

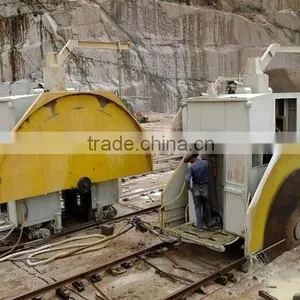

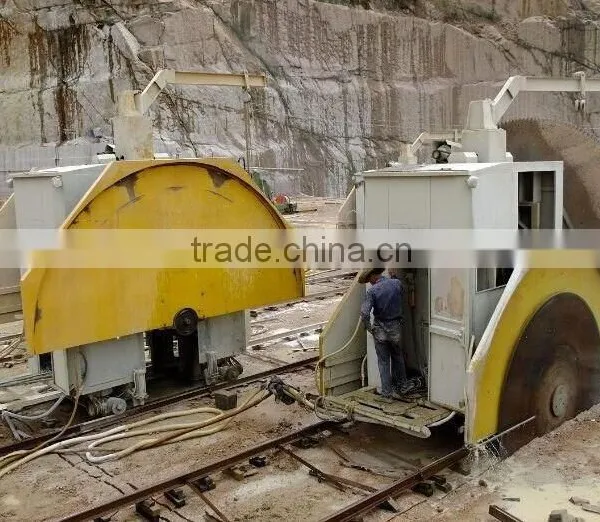

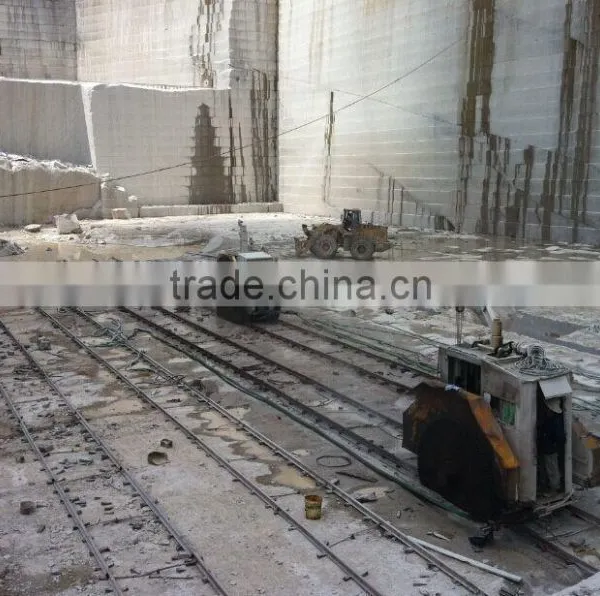

Machine quarry working photos:
Machine packaging photos:Serve the relatived blades as well.
QUALITY CONTROL:
STONE FAIR:
OUR CUSTOMERS COVER:
OUR COMPANY:
Contact US:
