Product Details
Place of Origin: | Fujian, China | Brand Name: | TIANJUN | Model Number: | TJTB-45KW |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

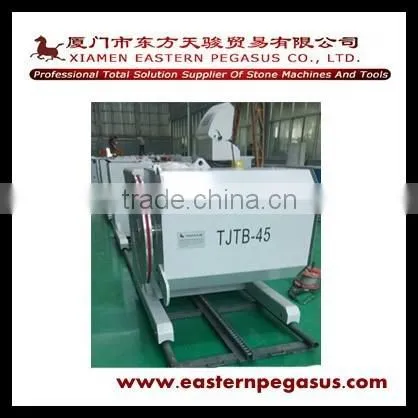

Granite & Mable Diamond Wire Saw Machine for Quarrying Cutting
(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4)Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.
Widely used in quarry work, hot selling to abroad, all the other necessary mining equipment are offered here as well, such as down the hole driller, air compressor, generator, etc.
In order to serve the total solution way under your demand, please let us know your detail requirement.
1. Quarry photos.
2. Block size you want to get.
3. The daily production to get, how many cbm per 8 hours?
4. With full water resource or not?
5. Other special demand.
75KW Diamond Wire Saw Specifications | |||||||
Total Power | 78.5KW | ||||||
Driving Power | 75kw=100HP | ||||||
Feeding Power | 2.2kw | ||||||
Rotary cutting head motor power | 1.1kw | ||||||
Cutting head lateral moving motor power | 0.75kw | ||||||
Cutting head rotation | 360° | ||||||
Cutting head adjustment distance | 400mm | ||||||
Lateral movement of cutting head | 1800mm | ||||||
Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
Rail | 2m*3 | ||||||
Rotation speed | 740/min | ||||||
Linear speed | 0-40m/s | ||||||
Wire tension | Auto-controlled | ||||||
Allowable Working Temperature | -15°C to +40° | ||||||
Power | AC 380±10% & 50HZ | ||||||
size | L=2000, W=1700, H=1400 | ||||||
Net Weight | 3.0T | ||||||
55KW Diamond Wire Saw Specifications | |||||||
Total Power | 58kw | ||||||
Driving Power | 55kw=74HP | ||||||
Feeding Power | 1.5kw | ||||||
Rotary cutting head motor power | 0.75kw | ||||||
Cutting head lateral moving motor power | 0.55kw | ||||||
Cutting head rotation | 360° | ||||||
Cutting head adjustment distance | 400mm | ||||||
Lateral movement of cutting head | 1800mm | ||||||
Main Guide Wheel Diamete | 800mm (Granite) 900mm(Marble) | ||||||
Rail | 2m*3 | ||||||
Rotation speed | 960/min | ||||||
Linear speed | 0-40m/s | ||||||
Wire tension | Auto-controlled | ||||||
Allowable Working Temperature | -15°C to +40° | ||||||
Power | AC 380±10% & 50HZ | ||||||
size | L=1800, W=1600, H=1400 | ||||||
Net Weight | 2.8T | ||||||
45KW Diamond Wire Saw Specifications | |||||||
Total Power | 48kw | ||||||
Driving Power | 45kw=65HP | ||||||
Feeding Power | 0.75kw | ||||||
Rotary cutting head motor power | 0.75kw | ||||||
Cutting head lateral moving motor power | 0.55kw | ||||||
Cutting head rotation | 360° | ||||||
Cutting head adjustment distance | 400mm | ||||||
Lateral movement of cutting head | 1800mm | ||||||
Main Guide Wheel Diamete | 800mm | ||||||
Rail | 2m*3 | ||||||
Rotation speed | 960/min | ||||||
Linear speed | 0-40m/s | ||||||
Wire tension | Auto-controlled | ||||||
Allowable Working Temperature | -15°C to +40° | ||||||
Power | AC 380±10% & 50HZ | ||||||
size | L=1800, W=1500, H=1400 | ||||||
Net Weight | 2.5 | ||||||
37KW Diamond Wire Saw Specifications | |||||||
Total Power | 40kw | ||||||
Driving Power | 37kw=50HP | ||||||
Feeding Power | 0.75kw | ||||||
Rotary cutting head motor power | 0.75kw | ||||||
Cutting head lateral moving motor power | 0.55kw | ||||||
Cutting head rotation | 360° | ||||||
Cutting head adjustment distance | 400mm | ||||||
Lateral movement of cutting head | 1800mm | ||||||
Main Guide Wheel Diamete | 800mm | ||||||
Rail | 2m*3 | ||||||
Rotation speed | 960/min | ||||||
Linear speed | 0-40m/s | ||||||
Wire tension | Auto-controlled | ||||||
Allowable Working Temperature | -15°C to +40° | ||||||
Power | AC 380±10% & 50HZ | ||||||
size | L=1700, W=1500, H=1400 | ||||||
Net Weight | 2.0T |
Machine packaging photos for reference: wooden package
Machine working in different situation.
The diamond wire is offered here as well: 10.5mm or 11mm or 11.5mm diamond wire. Rubber or spring type. Please consider about taking some meters for quality testing, hope you will test them well.
The accessories quarry equipments are offered here as well. Such as generator, air compresor, driller, wheel loader, etc.
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
