Advantage:
-1 year quality guarantee, spare part for free
-2 engineers go to install EPS production line
I. EPS block production line mainly includes three parts:
1. EPS pre-expander: it’s used to make EPS raw material to foamed beads
2. EPS block molding machine: it’s used to make foamed beads to foam block.
3. EPS cutting machine: it’s used to cut the big foam block to small size you need.
Flow chart of Automatic EPS Styrofoam Cladding Panel Machine For 3D Construction
A.EPS pre-expander
It turns eps raw material (expanded polystyrene) to big and light foam beads through steam
heating. With PLC and touch screen to realize full automatic production for feeding, heating
and ejecting foam beads.
ITEM |
LWS-1100B |
|
Expansion Chamber |
Diameter |
DN1100 |
Volume |
1.4m3 |
|
Usable Volume |
1.0m3 |
|
Steam |
Entry |
DN50 |
Consumption |
6-8kg/cycle |
|
Pressure |
0.6-0.8Mpa |
|
Compressed Air |
Entry |
DN25 |
Consumption |
0.9-1.1m3/cycle |
|
Pressure |
0.5-0.8Mpa |
|
Drainage |
Upper Drain Port |
DN100 |
Down Drain Port |
DN100 |
|
Material Conveying Line |
DN150 |
|
Capacity |
10.5g/l 350kg/h |
|
15g/l 580kg/h | ||
20g/l 800kg/h | ||
30g/l 950kg/h | ||
Connected Load/Power |
19.5KW |
|
Expanded Density |
10-40kg/m3 |
|
Density Tolerance |
<±2% |
|
Overall Dimension |
2900*4500*5900(mm) |
|
Weight |
3200k |
|

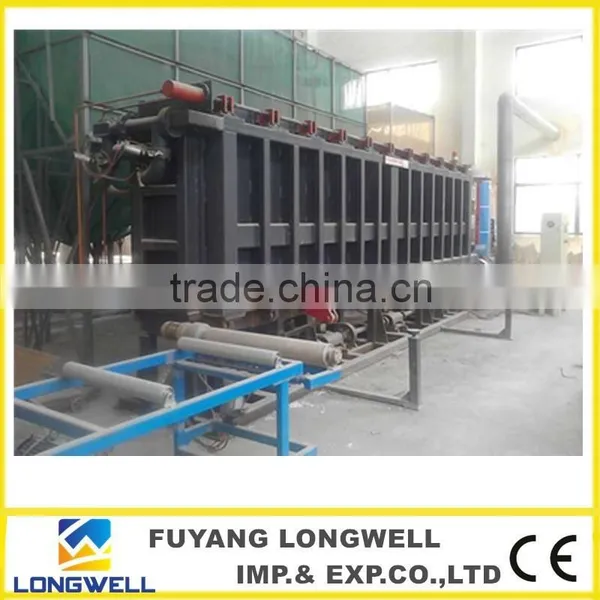

B. EPS Block Molding Machine
It makes eps foam beads to big foam block through steam heating and air cooling. With PLC
and touch screen to realize full automatic production for feeding, heating, vacuum cooling, mould
opening, mould closing and ejecting the foam block.
Technical data of Automatic EPS Styrofoam Cladding Panel Machine For 3D Construction:
Item |
LWS-2000V |
LWS-3000V |
LWS-4000V |
LWS-6000V |
|
|
Mould Cavity Size (mm) |
2040*1240* 1030 |
3060*1240* 1030 |
4080*1240* 1030 |
6080*1240* 1030 |
|
Block Size(mm) |
2000*1200* 1000 |
3000*1200* 1000 |
4000*1200* 1000 |
6000*1200* 1000 |
|
Steam |
Entry |
DN80 |
DN80 |
DN100 |
DN150 |
Consumption |
25~45kg/cycle |
45~56 kg/cycle |
60~85 kg/cycle |
95~120 kg/cycle |
|
Pressure |
0.6~0.8Mpa |
0.6~0.8 Mpa |
0.6~0.8 Mpa |
0.6~0.8 Mpa |
|
|
Compressed Air |
Entry |
DN40 |
DN40 |
DN50 |
DN50 |
Consumption |
1.5~2m3/cycle |
1.5~2.5m3/cycle |
1.8~2.5 m3/cycle |
2~3m3/cycle |
|
Pressure |
0.6~0.8 Mpa |
0.6~0.8 Mpa |
0.6~0.8 Mpa |
0.6~0.8 Mpa |
|
Drainage |
Vent |
DN100 |
DN150 |
DN150 |
DN150 |
Capacity @15kg/m³ |
4min/cycle |
5 min/cycle |
6 min/cycle |
7 min/cycle |
|
Connected Load/Power |
19.75KW |
23.75 KW |
24.5 KW |
32.25 KW |
|
|
Overall Dimension (mm) |
5700*4000* 2800 |
7200*4500* 3000 |
11000*4500* 3000 |
12600*4000* 3100 |
|
Weight |
5000kg |
6500kg |
10000kg |
14000kg |
|
|
Special size also can be made | |||||
Details of Automatic EPS Styrofoam Cladding Panel Machine For 3D Construction
C. EPS cutting machine
It cuts the big foam block to small size with electricity hot wire, can cut in 3 direction: Horizontal, vertical, Lateral.
Application of Styrofoam EPS Block Molding Machine
1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop
Clients' factory
We are EPS machinery supplier in Hangzhou China, the manufacturing base of EPS machine, with nearly 20 years' experience in EPS industry. We are specialized in EPS machinery design and turn-key project, and have helped many clients building new EPS factories around the world, such as Spain, England, Iran, Turkey, Libya, Tajikistan, Uzbekistan, Bangladesh and etc.
Persisting to the principle of "supplying good quality and long well services for our business", we'll strive for high efficiency, passion, integrity to provide customers with superior products and services. Our professional technicians and responsible sales always give you fast response for your questions and complaints 7*24h.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building long well and friendly business relationships with clients from all over the world.
Q: Does your machine have CE certification?
A: Yes,our machine with CE certification.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
Q: Installation and commissioning?
A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
