Longwell Automatic EPS wall panel machine production line
- 500 Plant / Plants per Month
- Ningbo or Shanghai
- T/T Credit Card
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Longwell | Model Number: | LWSD-01, LWSD-01 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Advantage:
-1 year quality guarantee, spare part for free
-2 engineers go to install EPS production line
I. EPS 3D panel production line mainly includes four parts:
1. EPS pre-expander: it’s used to make EPS raw material to foamed beads.
2. EPS block molding machine: it’s used to make foamed beads to foam block.
3. EPS cutting machine: it’s used to cut the big foam block to small size you need.
4. Steel wire mesh welding machine:it's used to coat EPS panel with light steel wire.
Flow chart
A.EPS pre-expander
It turns eps raw material (expanded polystyrene) to big and light foam beads through steam
heating. With PLC and touch screen to realize full automatic production for feeding, heating
and ejecting foam beads.
ITEM | LWP-1100B | |
Expansion Chamber | Diameter | DN1100 |
Volume | 1.4m3 | |
Usable Volume | 1.0m3 | |
Steam | Entry | DN50 |
Consumption | 6-8kg/cycle | |
Pressure | 0.6-0.8Mpa | |
Compressed Air | Entry | DN25 |
Consumption | 0.9-1.1m3/cycle | |
Pressure | 0.5-0.8Mpa | |
Drainage | Upper Drain Port | DN100 |
Down Drain Port | DN100 | |
Material Conveying Line | DN150 | |
Capacity | 10.5g/l 350kg/h | |
15g/l 580kg/h | ||
20g/l 800kg/h | ||
30g/l 950kg/h | ||
Connected Load/Power | 19.5KW | |
Expanded Density | 10-40kg/m3 | |
Density Tolerance | <±2% | |
Overall Dimension | 2900*4500*5900(mm) | |
Weight | 3200k |
B. EPS Block Molding Machine
It makes eps foam beads to big foam block through steam heating and air cooling. With PLC
and touch screen to realize full automatic production for feeding, heating, vacuum cooling, mould
opening, mould closing and ejecting the foam block.
C. EPS cutting machine
It cuts the big foam block to small size with electricity hot wire, can cut in 3 direction: Horizontal, vertical, Lateral.
D. Steel wire mesh welding machine

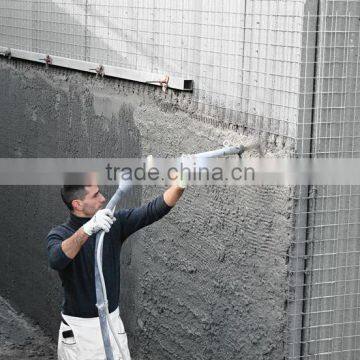

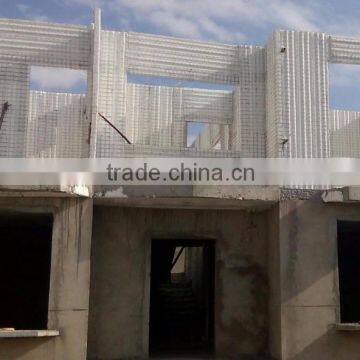

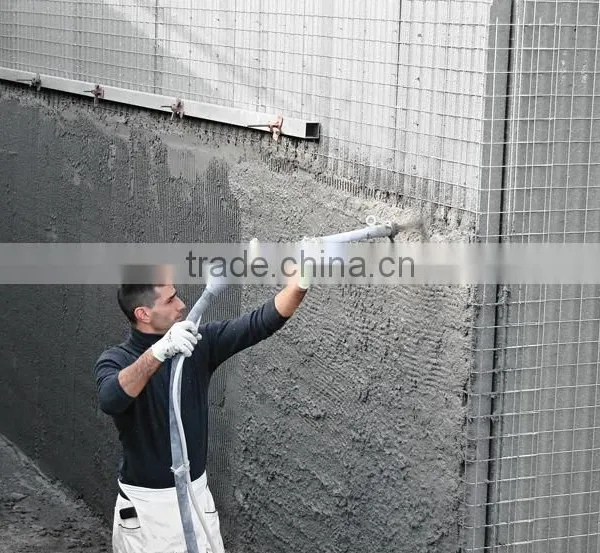

It coats the cutted EPS panel with light steel wire to make it used in construction industry, heat and sound insulation with large load-bearing capacity, easy to install and splice.
Details of Automatic EPS wall panel machine production line
Technical paramter
Voltage | AC380V 50Hz |
Connection Power | 60KVA |
Wire Diameter | 2mm-3mm |
Wire Net Board Dimension | 2400~3000mm×1200mm×70~140mm |
EPS Board Thickness | 50mm~120mm |
Capacity | 400m2~500m2/8 hours |
Machine Overall Dimension | 8000mm×1900mm×2100mm |
Weight | About 4000kg |
Accepted tolerance
Welding Shortage | ≤3% |
Diagonal length Error | ≤10mm |
Length Error | ±5mm |
Width Error | ±5mm |
3D board lateral bend 3D | ≤L/650 |
Technical paramter
Voltage | AC380V 50Hz |
Connection Power | ≤60KVA |
Wire Diameter | 2mm-3mm |
Net Welding Mesh | 50×50mm 60×60mm 100×100mm |
Net Dimension | 1200mm×3000mm(Standard Size) |
Capacity | 1.5m~2m/min |
Machine Overall Dimension | 8000mm×1500mm×1100mm |
Weight | 3000KG |
Accepted tolerance
Welding Shortage | ≤8‰ |
Diagonal length Error | ≤10mm |
Length Error | ±5mm |
Width Error | ±5mm |
3D board lateral bend 3D | ≤L/650 |

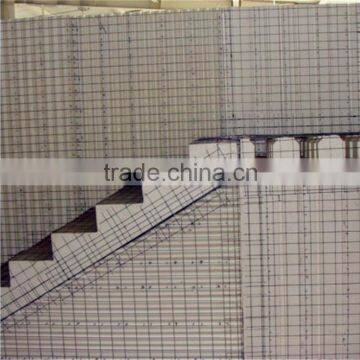

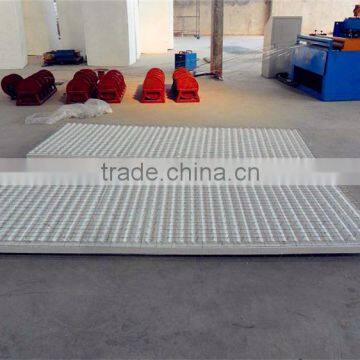

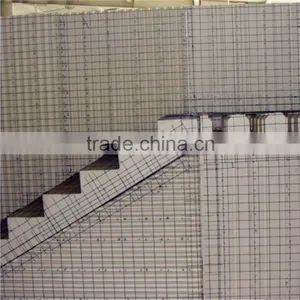

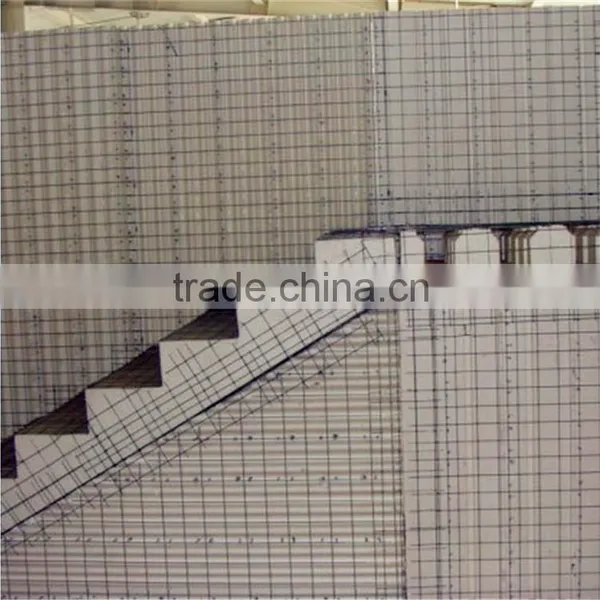

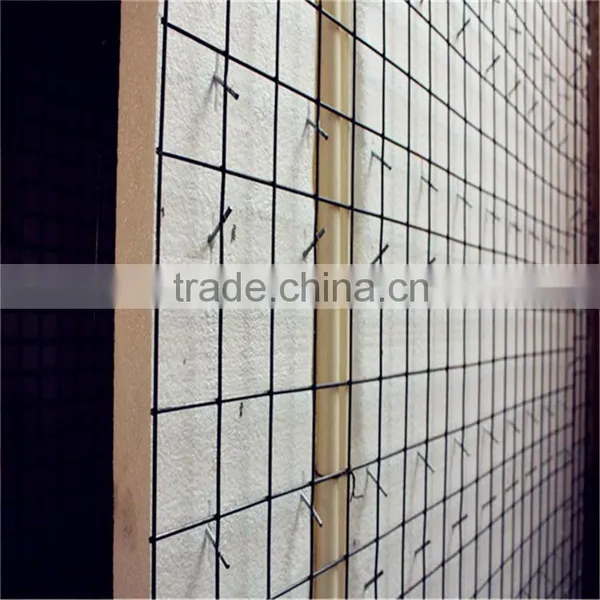

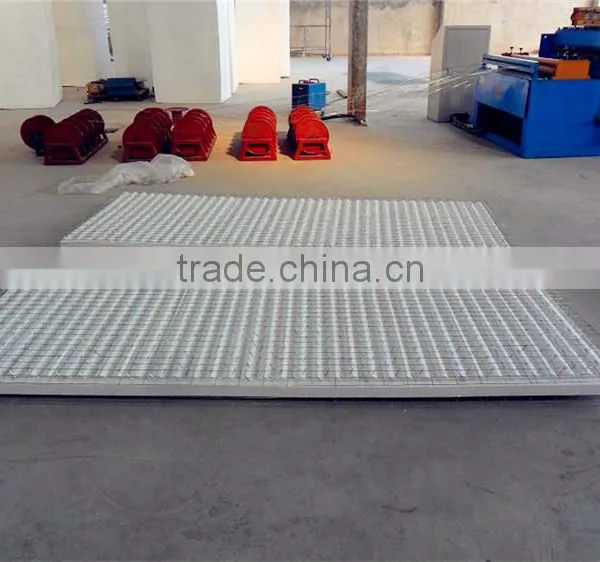

Finished products of Automatic EPS wall panel machine production line
Standard export packaging:
Outer package: standard export wooden cases.
Inner package: plastic paper or wrapped with stretch film and etc.
Shipment:
By sea from Shanghai or Ningbo port
By train from Ningbo station
By truck from Kashgar, Urumuqi or other checkpoint
1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop.

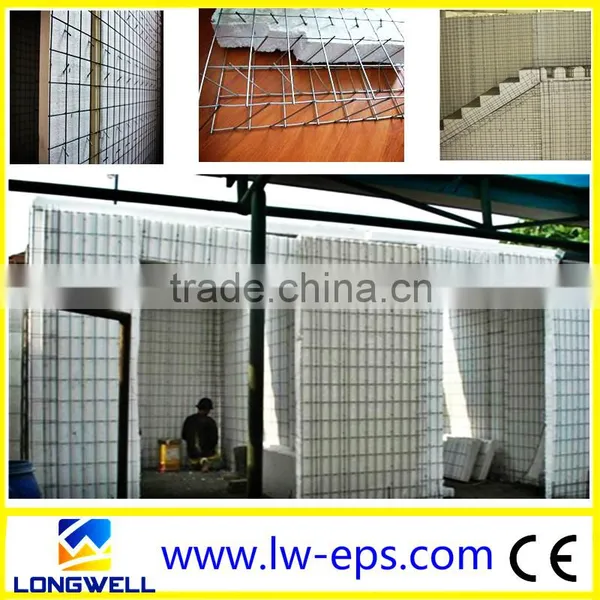

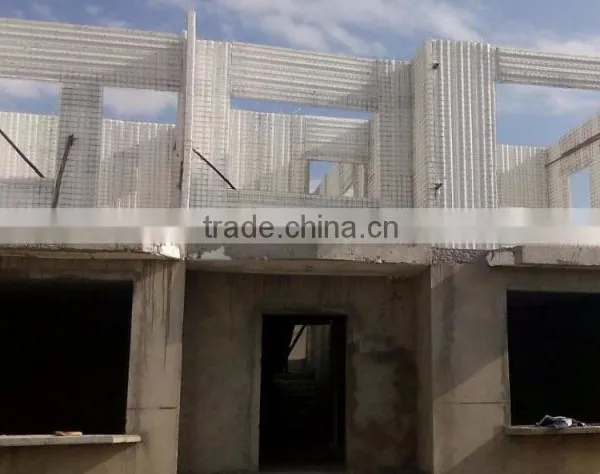

Clients' factory
We are EPS machinery supplier in Hangzhou China, the manufacturing base of EPS machine, with nearly 20 years' experience in EPS industry. We are specialized in EPS machinery design and turn-key project, and have helped many clients building new EPS factories around the world, such as Spain, England, Iran, Turkey, Libya, Tajikistan, Uzbekistan, Bangladesh and etc.
Persisting to the principle of "supplying good quality and long well services for our business", we'll strive for high efficiency, passion, integrity to provide customers with superior products and services. Our professional technicians and responsible sales always give you fast response for your questions and complaints 7*24h.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building long well and friendly business relationships with clients from all over the world.
Q: Does your machine have CE certification?
A: Yes,our machine with CE certification.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be negotiated.
Q: Installation and commissioning?
A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Contact: Vicky Wu
Mobile: +8613758164390
Skype: vicky19862
Wechat: 108895932
