Home > Products > Engraving machine > 2016 new type high quality machine for engraving metal
2016 new type high quality machine for engraving metal
USD $29,000 - $35,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | TIANJUN | Model Number: | TJ-0315E-W |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

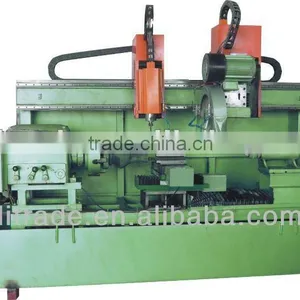

TJ-0315E-W Engraving machine,Carving machine
| Model | TJ-0315E-W | ||||||
| Control system | 5-axis-linkage system+lathe tool 2-axis+spindle switching: 8axies totally | ||||||
| Cylinder charging size | Diameter 350mm,length1600mm | ||||||
| Cylinder carging size | Diameter 300mm,length1500mm | ||||||
| Cylinder carving depth | Max:100mm | ||||||
| Square-material size | Opposite angle 350mm, Length1600mm | ||||||
| Square-material carving size | Diameter 280mm,Length 1500mm | ||||||
| Square-material carving depth | Max:100mm | ||||||
| Carving speed | 6m every minute | ||||||
| Total power | 15KW, | ||||||
| Voltage | 220v,alternatively 110v 60 HZ 380v,alternatively 220v 60HZ | ||||||
| 1#Electrical machinery of the main shaft | patent waterproof high-speed electrical machine | ||||||
| 2#Electrical machinery of the main shaft | patent waterproof high-torsion high-speed electrical machine | ||||||
| 3#spindle saw blade | high-torsion high-speed electrical machine(available for cutting 400mm pieces) | ||||||
| The rotation axis switching over the main shaft | The rotation axis switches over the main shaft. It can be used for late lathe and cylinder polishing | ||||||
| Mechanical shelf of speed 6of rotation axis | The rotation axis switching over the main shaft can regulate the speed under mechanical shelf. | ||||||
| Driving electrical machinery | patent low-speed high-torsion electrical machine | ||||||
| Driver | special protection driver | ||||||
| Transmission part | Original German small modulus ,high-accuracy gear wheel rack | ||||||
| Straight line guide rail | Original Taiwan rectangle heavy-load high-accuracy gear wheel rack | ||||||
| pipeline | Antioxidant patent water pipe and oil pipe | ||||||
| Electric apparatus circuit | Antioxidant long-life electric wire | ||||||
| cool | Circulating water-refluxing patent design | ||||||
| Weight | 2000kg | ||||||
Our Telephone No.: 0086-592-5551199
Carving machine photos:
Finishing Products:
QUALITY CONTROL:
We can ensure to offer you the good quality products in very reasonable and competitive price, also the full service all the time.
STONE FAIR:
We have attended the stone fair in different countries, such as Russia, Egypt, Brazil, Vietnam, Turkey, India, etc. And you can always find our booth in Xiamen Stone Fair. Welcome to come and visit our company anytime.
OUR CUSTOMERS COVER:
Thanks to the recognition and support of our customers, we have exported products to more than 65 different countries till now, and the number is increasing year by year.
OUR COMPANY:
We are located in the beautiful city, Xiamen, China. Established in March, 2006.
Contact US:
Please feel free to contact us if you get any question or new inquiry,
Also welcome to come and visit our company anytime for further business discussion!
Contact Us
- Xiamen Eastern Pegasus Co., Ltd.
- Contact nameCandy Huang
- Phone86-592-5551199
- AddressRoom 601, No.2, A3 Plot, Guanyinshan International Business Centre, Xiamen, China. Xiamen,Fujian
