Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Floorboard Making Machinery > Infrared Fully Automatic Bridge Type Edge Cutting Machine,tile Making Machine
Infrared Fully Automatic Bridge Type Edge Cutting Machine,tile Making Machine
US$ 17,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TJ05 DL3000 Automatic Multi-Function Cutting MachineUS$ 6,200 - 7,200MOQ: 1 Set -
TJ-60 CNC PROCESSING MACHINEUS$ 35,000 - 40,000MOQ: 1 Set
-
Automatic Stone Cutting MachineUS$ 1,800 - 2,500MOQ: 2 Sets
-
2015 TJQH-400/600 Automatic Stone Cutting Machine,high Production MachineUS$ 17,000 - 25,000MOQ: 1 Set
-
Stone Cutting Machine, Machine for Tile Cutting, Cut MachineUS$ 24,000 - 27,000MOQ: 1 Set
Condition
New
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJQH-400
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Stone cutting machine, tile making machine1.cutting with infrared ray
table rotation angle(by hydraulic):90or360 degree

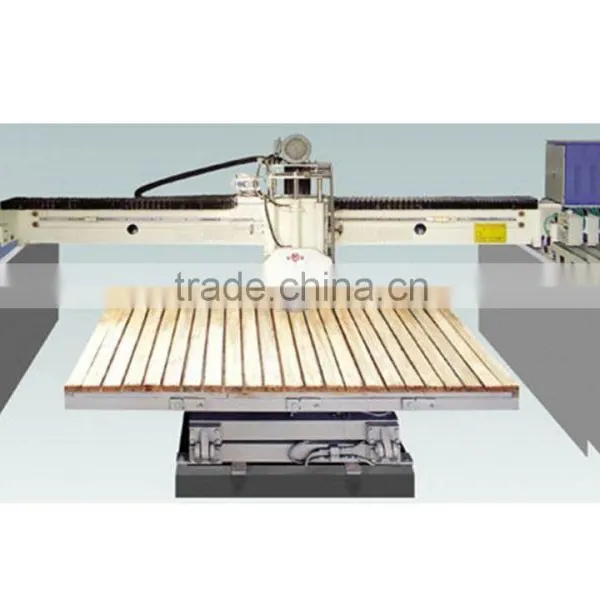

TJQH-400 Infrared Fully Automatic Bridge Type Edge Cutting Machine,Tile Making Machine
Description:
- Generally this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level.
- The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.
- It is particularly applicable for cutting valuable and large stone plates. Tile making machine. Cutting into different sizes of tiles.
| Technical data | ||||||
| Name | Unit | TJQH-400 | ||||
| Blade diameter | mm | Φ350-Φ400 | ||||
| Worktable dize (Max. cutting size) | mm | 3200×2000 | ||||
| Blade up/down stroke | mm | 120 | ||||
| Main motor | kw | 11 | ||||
| Feeding motor | kw | 1.5 | ||||
| Slicing motor | kw | 1.1 | ||||
| Motorized blade tilt angle | / | |||||
| Worktable rotation angle(by hydraulic) | 90° or 360° | |||||
| Worktable upturning angle | 0°--- 85° | |||||
| Water consumption | m3/min | 4 | ||||
| Voltage/Frequency | V/HZ | 380V/50HZ | ||||
| Dimensions(L×W×H) | mm | 5800*4700*2800 | ||||
| Weight | kg | 5500 | ||||
Please check this website to see how it works:
/v_show/id_XMTM4OTMwMTU2.html
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
Contact US:
We are the total solution supplier of stone machines and tools. For more products, please check our company webwite: .
