Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Board Making Machine > Bridge Type CNC PROCESSING MACHINE

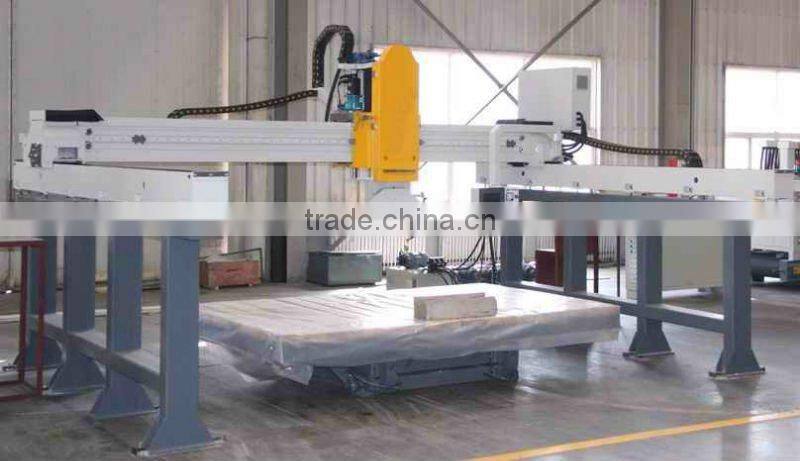

Bridge Type CNC PROCESSING MACHINE
US$ 34,500 - 34,600
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
TJ-60
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Stone Machine for Stone Tile Edge CuttingUS$ 5,500 - 6,000MOQ: 1 Unit -
Stone Portable Edge Cutting Machine,marble Cutting MachinesUS$ 900 - 1,000MOQ: 1 Unit
-
Portable Stone Edge SawUS$ 1,870 - 2,000MOQ: 1 Unit
-
Automatic Multi-Function Stone Machine,Stone Cutting MachineUS$ 6,100 - 7,000MOQ: 1 Unit
-
Infrared Fully Automatic Bridge Type Edge Cutting Machine,ceramic Tile Making MachineUS$ 18,600 - 19,000MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJ-60
Specifications
cnc cutting machineCNC profiling machine
multi-function CNC cutting machine
max. cutting size: 3300X3200X500MM
CNC machine
| TJ-60 CNC processing machine is one multifunctional, advanced stone procession machine. It is used for cutting and profiling marble,granite, artificial stone and so on. | |||||||
| model | TJ-60 | ||||||
| max cross stroke | 3300mm | ||||||
| max longitudinal stroke | 3200mm | ||||||
| Max up-down stroke | 500mm | ||||||
| blade max cross moving speed | 16500mm/min | ||||||
| blade max longitudinal moving speed | 18000mm/min | ||||||
| table max tilting degree | 85° | ||||||
| table rotating degree | A) 0°,45°,90°,180°,270° (fixed) | ||||||
| B) 360° continuous rotation | |||||||
| C) 0~180°swinging | |||||||
| Table size | 3250×2000mm | ||||||
| guide rail of side beam and main crossbeam | Straight guide rail | ||||||
| Total power | 16.1KW | ||||||
| Main motor | 11KW/4—frequency adjustable | ||||||
| carriage walking motor (servomotor) | 1.2 KW | ||||||
| crossbeam moving motor (servomotor) | 1.2 KW | ||||||
| up down motor (servomotor) | 1.2KW | ||||||
| oil pump motor | 1.5 KW | ||||||
| standard working pressure | 5.5Mpa | ||||||
| machine size | 5800×4500×3300mm | ||||||
| Total weight | 5500 kg | ||||||
QUALITY CONTROL:
STONE FAIR:
OUR CUSTOMERS COVER:
OUR COMPANY:
Contact US:
cnc cutting machine
CNC profiling machine
multi-function CNC cutting machine
max. cutting size: 3300X3200X500MM
CNC machine
Bridge cnc machine
drilling, cutting, engraving, polishing, profiling etc.
