Single Arm High Efficiency Multi-blade Stone Cutting Machine
US$ 16,000 - 22,000
/ Unit
1 Unit(Min. Order)
- Xiamen
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | TIANJUN | |
| Model Number | LCZD-160 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Multi blades cutting machineSingle arm blade cutter
Hydraulic up/down block cutting equipment
CE certificate
block cutter

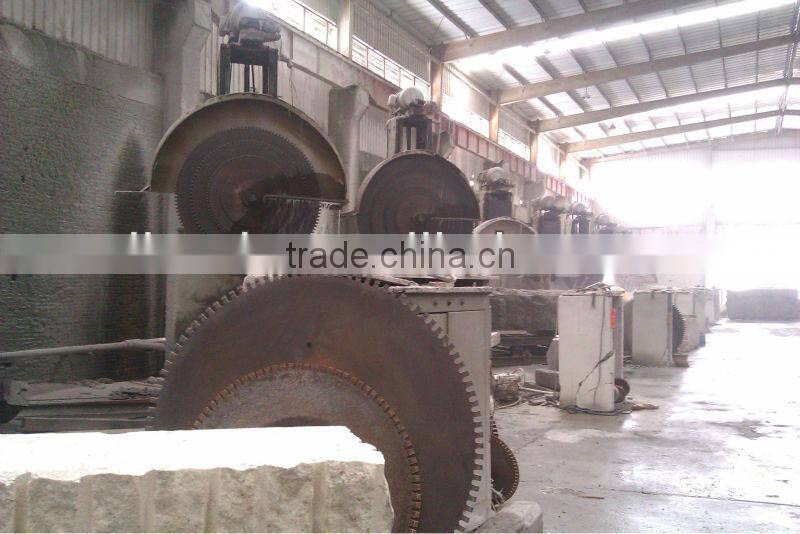

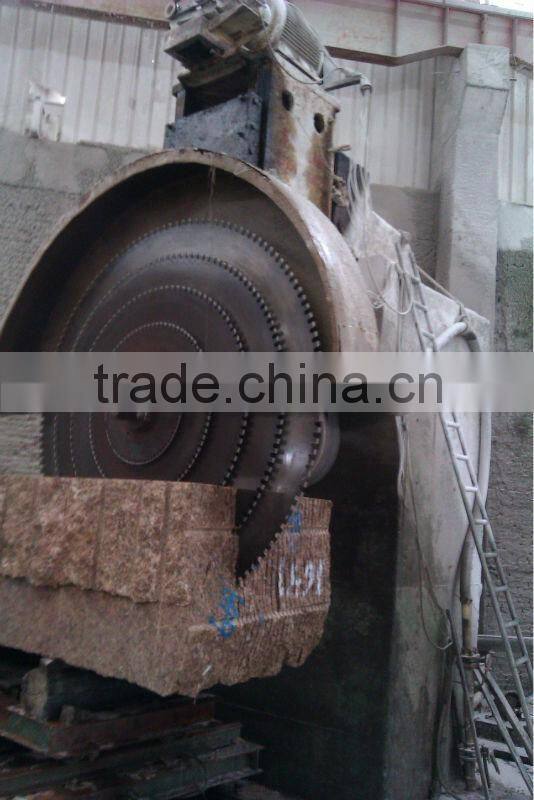

LCZD-160 (hydraulic up/down) high efficiency multi-blade stone cutting machine
It adopts large-area contacting rails and double hydraulic cylinder up-and-down movement to improve the moving up speed. Overall protection of this machine has greatly enhanced stability of the machine to make sure the higer efficiency, longer life-span and lower maintenance rate.
| Technical data | |||||
| Name | Unit | LCZD-160 | |||
| Number of Blades | pc | 12(6-Φ1600, 6-Φ940) 16(8-Φ1600, 8-Φ940) 20(10-Φ1600, 10-Φ940) | |||
| Blade vertical stroke | mm | 1000 | |||
| Max. cutting size | mm | 3500*1300*650 3500*1300*850 | |||
| Main motor power | kw | 65/75/90 | |||
| Water consumption | m3/h | 16 | |||
| Dimensions(L×W×H) | mm | 8500*4000*5500 | |||
| Weight | kg | ≈9000 | |||
| Voltage/Frequency | V/HZ | 380V/50HZ | |||
| Cutting efficiency: 8 large and 8 small combination saw 24 hours cutting 300m2 | |||||
QUALITY CONTROL:
STONE FAIR:
OUR CUSTOMERS COVER:
OUR COMPANY:
Contact US:
