CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone

CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone thumbnail-1
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone thumbnail-2
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone thumbnail-3
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone photo-1
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone photo-2
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference Microphone photo-3
US$ 1 - 359 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Audio Conference System
Function:
Voting
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Guangzhou Wepal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Canton Shenzhen Ningbo Qingdao Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System
Function Voting
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name ARTONE
Model Number CMS-690M
CMS-690M oem Cheap prices digital audio system table delegate wireless conference microphoneCMS-690M oem Cheap prices digital audio system table delegate wireless conference microphone
Features

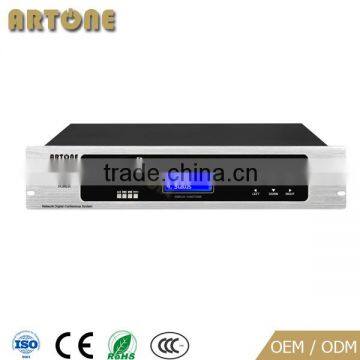

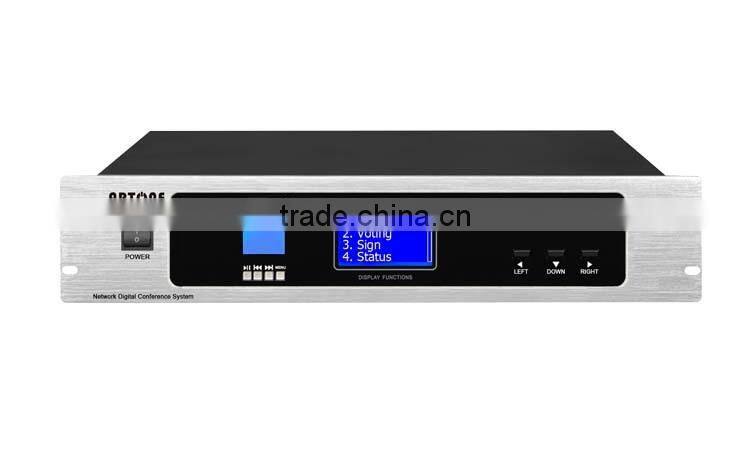

Main Host

*The digital conference microphone system host comes with a LED display, and built-in USB/SD card for background music or recording function;
*LED displays working mode and allowed speaking number.
*The number of speakers: 1-9 and full opening( 4 forms can be chosen)
*6 meeting work modes: 1.chairman mode 2.first in first out mode 3.last in first out mode 4.LIMIT mode 5.FREE mode 6.responder mode
*The host can connect 150 microphone units, it divide into 4 parallel outputs, each channel can connect 20 units.

*Protocol TCP/IP or RS-232 available for system integration.

*Short-circuit input for EMC, stop the meeting mode automatically;

* Main host adjust voice sensitivity and volume;

* Built-in IC card reader for check-in (sign) function;

* Voting function

* 6 in 4 out video switch matrix

Output impedance:

REC:200Ω LINE:200Ω

BALANCE: 300Ω

UNBALANCE: 400Ω

Input impedance: LINE:50KΩ PBIN:50KΩ

S /N Ratio: 100dB (1KHz THD1%)

Size: 480*88*220 mm

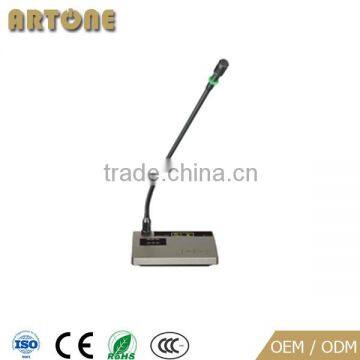

Chairman / Delegate Microphone Unit
*With microphone ,speaking button and indicator lamp that can show and control the state of speech.
*Whole plastic microphone shell.

* 2.23’’ OLED display;
*With a microphone unit connecting cable.
*With Chairman priority key;could shut all the delegate unit.
*The chairman unit can be placed in any position in loop.
*The chairman unit is unrestricted by the limiting function.
*The chairman unit quantity is unrestricted in the loop.
*High sensitivity microphone.
*The power for units is supplied by the master controller at 24V voltage.
*Hand-in-hand connection method.
*With a microphone unit connecting cable 2.1m, 8P core line, convenient installation can increase efficiency.

Type: capacitance
Polar pattern: one direction
Frequency response: 30Hz-18KHz
Sensitivity: -45±2dB@1KHz
Input voltage: DC 24V(powered by host)
Min input impedance: 1KΩ
S /N Ratio: 68dB
Output connector: 8P terminal
Input and output wire: 2.1M 8P shielded line
Mic length:425mm
Size:132*150*58mm
Weight:500g

CMS-690M oem Cheap prices digital audio system table delegate wireless conference microphone

Specification

Model No.

CMS-690M

Connection

150 Units

Recording Interface

USB/SD card

Control Port

RS232 x 1

Camera Control Port

S-video, 5 pin interface

PC Connector

USB x 1, RJ45 x 1



Output Impedance

REC:200Ω LINE:200Ω

BALANCE: 300Ω

UNBALANCE: 400Ω

S/N Ratio

100dB

Video Switch

RCA 6x4

Audio Input

RCA x 2, XLR x1, 6.3mm x 2

Audio Output

RCA x 4, XLR x 1

Power Supply

AC 220V±10% 50Hz

Dimension

483×323×90 mm



Model No.

CMS-692C/D

Frequency Response

30Hz~18KHz

Mic Type

capacitance

Polar Pattern

Uni-direction

Input Impedance

1KΩ (Min)

S/N Ratio

68dB

Power Supply

DC24V (powered by CMS-350M)

Dimension

120×105×45mm
