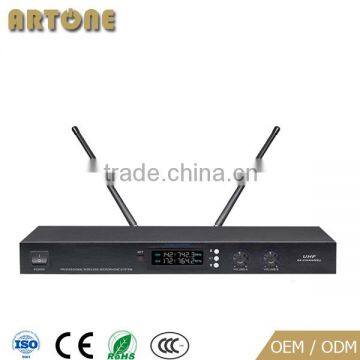

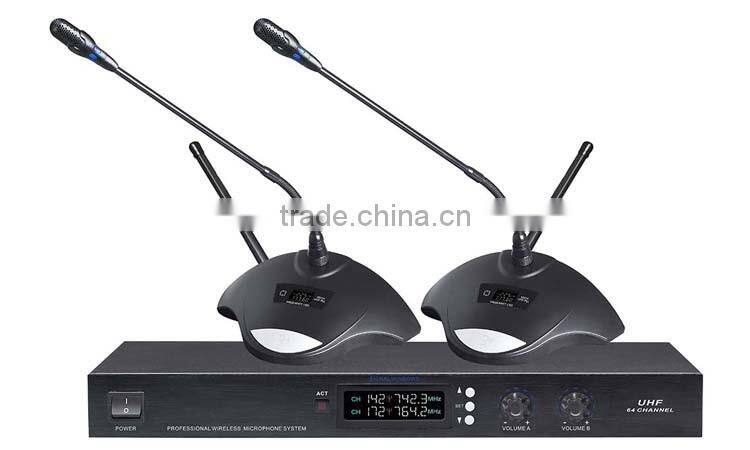

Help CenterCMS-U602 Microphone Wireless Uhf Microphone With Speaker
Related Products
-
CMS-U602 Small Wireless Microphone for Conference SystemUS$ 1 - 118MOQ: 1 Piece -
CMS-690M Conference AmplifierUS$ 1 - 359MOQ: 1 Piece
-
Public Address Microphone Professional Wireless Microphone ConferenceUS$ 1 - 118MOQ: 1 Piece
-
Conference System Wireless Microphone UhfUS$ 1 - 118MOQ: 1 Piece
-
Professional Uhf Wireless Microphone SystemUS$ 1 - 118MOQ: 1 Piece
Oscillation: PLL synthesized
Mode: 2 Channel Receiver, 32 signal channel IR pairing, 0.5MHz step per channel
Support 20 groups or 40 mic transmitters use simultaneously
Receiver LCD display shows working channel, frequency, signal indicator,
Carrier Ferquency Range:UHF 500MHz~900MHz
Frequency Stability:±0.001%
Max.eviation Range:±50KHz
Modulation Mode:FM
S/N Ratio:>105dB
T.H.D:<0.5%@1KHz
Sensitivity:1.2/UV @S/N=12dB
Power Supply:DC:12V~17V
Audio Output: Independent Free standing 0~400mV Mixed style 0~300mV

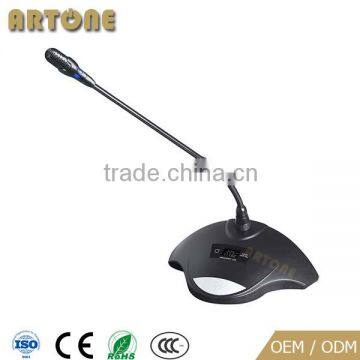

Transmitter parameter:
Power Supply:DC 3V (1.5V AA*2)
Transmitter LCD display shows working channel, frequency and battery level;
Consume an electricity: 100mA
Carry a frequency:UHF 500MHz~900MHz
Frequency stability:±25KHz
S/N Ratio:>105dB
F/N Ratio:>80dB
Dynamic range:≥100dB
Type: capacitance
polar psttern: One direction
Frequency Response:40Hz~20KHz
Sensitivity:-47±3dB@1KHz
Specification
Model No. |
CMS-U602 |
Channel |
Dual Channel (2 Channel) |
Mode |
PLL synthesized |
Frequency FM |
UHF 500~900 MHz (20 groups) |
Audio Output |
2 balanced output and 1 mixed unbalanced output |
Frequency Stability |
Receiver ±0.001% / Mic: ±25KHz |
S/N Ratio |
>105dB |
THD |
<0.5%@1KHz |
Power Supply |
Receiver DC12~17V / Transmitter Mic DC3V (1.5V AAx2) |
Mic Type |
Capacitance |
Mic Polar Pattern |
Uni-directivity |
Power Consumption |
Receiver 3W / Transmitter Mic 100mA |
Mic Output |
10mW |
Mic Battery |
6 hours |
Cover Distance |
30 ~ 70 meter |
Frequency Response |
40~20KHz |
Dimension |
Receiver 420 x180x44 / 480x180x44mm (w rackmount kit) |
Weight |
Receiver 1.5 KG / Mic 495g |
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
Forth Packing: General Packing for 5 pieces amplifier, for fast loading and handling
