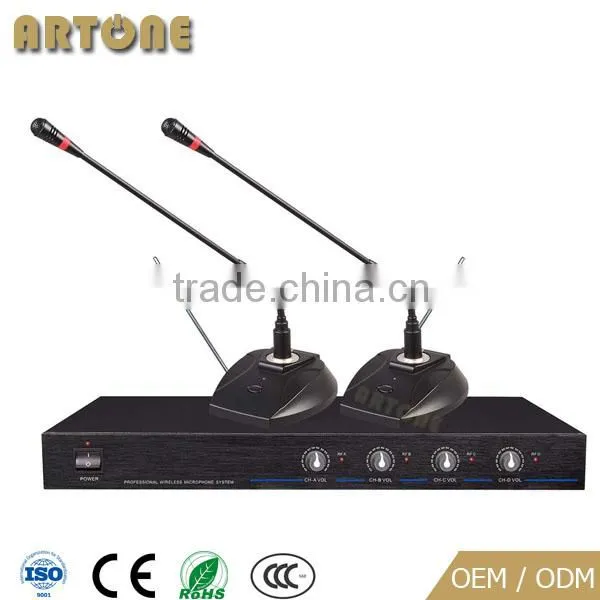

Help CenterCMS-V104 Professional Conference System Dynamic 3.5mm Jack 4 Channel VHF Desktop Wireless Microphone
Related Products
-
CMS-690M Fully Digital Conference System Digital Conference MicrophoneUS$ 1 - 359MOQ: 1 Piece -
CMS-690M Oem Cheap Prices Digital Audio System Table Delegate Wireless Conference MicrophoneUS$ 1 - 359MOQ: 1 Piece
-
CMS-690M Video Conference Omnidirectional MicrophoneUS$ 1 - 359MOQ: 1 Piece
-
CMS-690M Professional Conference Wireless MicrophoneUS$ 1 - 359MOQ: 1 Piece
-
CMS-690M Camera Tracking Conference System MicrophoneUS$ 1 - 359MOQ: 1 Piece
*4 channels. Fixed frequency.
*4 controllers can used simultaneously.
*Front panel :each channel has a red RF lamp to indicate the signal.
*Back panel :2 pull rod antennas for signal receiving.
*Back-panel :2 balanced output and 1 mixed unbalanced output.
*Microphone power consumption is 30mA. 9V*1 battery,support 6 hours.
*Light ring on the mic head display working status.
*Working distance: 30-70meter.
* It's suitable for various kinds of conference and performance occasion
Specification
Model No. |
CMS-V104 |
Channel |
4 Channel |
Mode |
Quartz Crystal |
Frequency FM |
VHF 193.0~268.6 MHz (4 groups) |
Audio Output |
2 balanced output and 1 mixed unbalanced output |
Frequency Stability |
Receiver ±0.001% / Mic: ±25KHz |
S/N Ratio |
>105dB |
THD |
<0.5%@1KHz |
Power Supply |
Receiver DC12~17V / Transmitter Mic 9V |
Mic Type |
Capacitance |
Mic Polar Pattern |
Uni-directivity |
Power Consumption |
Receiver 6W / Transmitter Mic 30mA |
Mic Output |
10mW |
Mic Battery |
6 hours |
Cover Distance |
30 ~ 50 meter |
Frequency Response |
40~20KHz |
Dimension |
Receiver 420 x180x44 / 480x180x44mm (w rackmount kit) / Transmitter 150x123x43mm |
Weight |
Receiver 1.9 KG / Mic 495g |
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
Forth Packing: General Packing for 5 pieces amplifier, for fast loading and handling
| Product Quality Level | High & Medium Quality Provided |
| Price & Cost | Low price, low profit |
| Service | 7x24 online, OEM/ODM cooperation |
