*The panel adopts buttons to control speaking mode and the number of speakers, breaking the traditional dial control.
*LED displays working mode and allowed speaking number.
*The number of speakers: 1, 3,6 and full opening( 4 forms can be chosen)
*6 meeting work modes: 1.chairman mode 2.first in first out mode 3.last in first out mode 4.LIMIT mode 5.FREE mode 6.responder mode
*The host can connect 60 microphone units, it divide into 4 parallel outputs, each channel can connect 20 units.
*Equipped with audio parallel output and a 6.3 jack output, conference recording outputs andbackground music inputs interface.
Frequency response: AC 220V±10% 50Hz
Rated voltage: 100Hz-12.5Hz
Output impedance:
REC:200Ω LINE:200Ω
BALANCE: 300Ω
UNBALANCE: 400Ω
Input impedance: LINE:50KΩ PBIN:50KΩ
S /N Ratio: 100dB (1KHz THD1%)
Size: 480*44*220 mm
*Latest digital design.

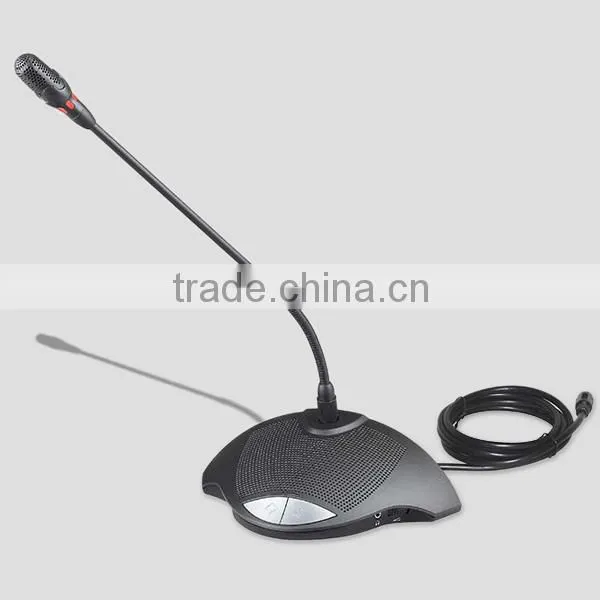

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.
*Whole plastic microphone shell.
*With a microphone unit connecting cable.
*Single projection; With Anti-gas sonic boom and wind shield.
*With Chairman priority key;could shut all the delegate unit.
*The chairman unit can be placed in any position in loop.
*The chairman unit is unrestricted by the limiting function.
*The chairman unit quantity is unrestricted in the loop.
*High sensitivity microphone.
*The power for units is supplied by the master controller at 9 safe voltage.
*Hand-in-hand connection method.
*With a microphone unit connecting cable 2.1m, 8P core line, convenient installation can increase efficiency.
Type: capacitance
Polar pattern: one direction
Frequency response: 30Hz-18KHz
Sensitivity: -45±2dB@1KHz
Input voltage: DC 9V(powered by host)
Min input impedance: 1KΩ
S /N Ratio: 68dB
Output connector: 8P terminal
Input and output wire: 2.1M 8P shielded line
Mic length:425mm
Size:132*150*58mm
Weight:500g
Specification
Model No. |
CMS-350M |
Connection |
60 Units |
|
Output Impedance |
REC:200Ω LINE:200Ω |
BALANCE: 300Ω | |
UNBALANCE: 400Ω | |
S/N Ratio |
100dB |
Power Supply |
AC 220V±10% 50Hz |
Dimension |
480*44*220 mm |
Model No. |
CMS-3504C/D |
Frequency Response |
30Hz~18KHz |
Mic Type |
capacitance |
Polar Pattern |
Uni-direction |
Input Impedance |
1KΩ (Min) |
S/N Ratio |
68dB |
Power Supply |
DC9V (powered by CMS-350M) |
Dimension |
132*150*58mm |
