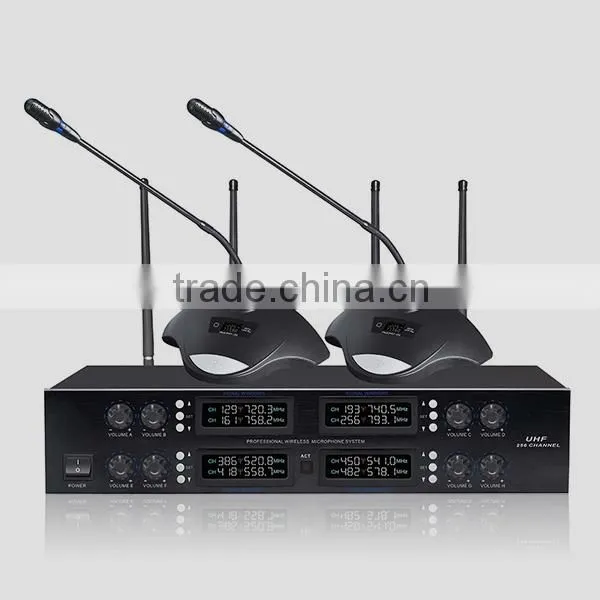

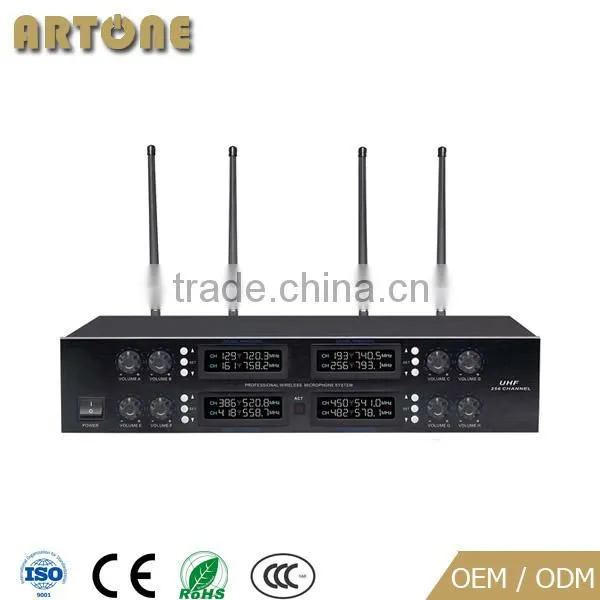

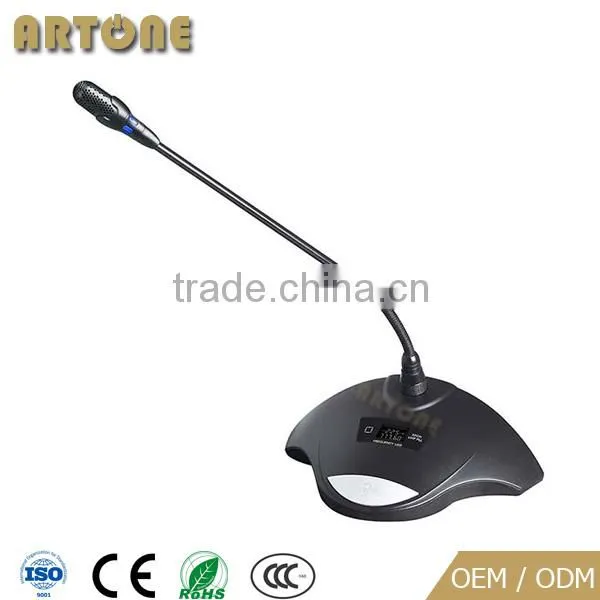

Help CenterCMS-U608 Conference System Uhf Professional Gooseneck Wireless Microphone
Related Products
-
CMS-351M Wireless Embedded Skype Conference System Table MicrophoneUS$ 1 - 99MOQ: 1 Piece -
CMS-690M Digital Conference Microphone SystemUS$ 1 - 359MOQ: 1 Piece
-
CMS-U604 UHF System fm True Diversity Table Stand Transmitter Conference Wireless MicrophoneUS$ 1 - 198.7MOQ: 1 Piece
-
CMS-690M Multi Audio New Conference SystemUS$ 1 - 359MOQ: 1 Piece
-
CMS-690M Wireless Chairman Microphone Unit Digital Conference Room Audio EquipmentUS$ 1 - 359MOQ: 1 Piece
Oscillation: PLL synthesized
Mode: 8 Channel Receiver, 32 signal channel IR pairing, 0.5MHz step per channel
Support 5 groups or 40 mic transmitters use simultaneously
Receiver LCD display shows working channel, frequency, signal indicator,
Carrier Ferquency Range:UHF 500MHz~900MHz
Frequency Stability:±0.001%
Max.eviation Range:±50KHz
Modulation Mode:FM
S/N Ratio:>105dB
T.H.D:<0.5%@1KHz
Sensitivity:1.2/UV @S/N=12dB
Power Supply:DC:12V~17V
Audio Output: Independent Free standing 0~400mV Mixed style 0~300mV
Transmitter parameter:
Power Supply:DC 3V (1.5V AA*2)
Transmitter LCD display shows working channel, frequency and battery level;
Consume an electricity: 100mA
Carry a frequency:UHF 500MHz~900MHz
Frequency stability:±25KHz
S/N Ratio:>105dB
F/N Ratio:>80dB
Dynamic range:≥100dB
Type: capacitance
polar psttern: One direction
Frequency Response:40Hz~20KHz
Sensitivity:-47±3dB@1KHz
Specification
Model No. |
CMS-U608 |
Channel |
8 Channel |
Mode |
PLL synthesized |
Frequency FM |
UHF 500~900 MHz (5 groups) |
Audio Output |
2 balanced output and 1 mixed unbalanced output |
Frequency Stability |
Receiver ±0.001% / Mic: ±25KHz |
S/N Ratio |
>105dB |
THD |
<0.5%@1KHz |
Power Supply |
Receiver DC12~17V / Transmitter Mic DC3V (1.5V AAx2) |
Mic Type |
Capacitance |
Mic Polar Pattern |
Uni-directivity |
Power Consumption |
Receiver 3W / Transmitter Mic 100mA |
Mic Output |
10mW |
Mic Battery |
6 hours |
Cover Distance |
30 ~ 70 meter |
Frequency Response |
40~20KHz |
Dimension |
Receiver 420 x180x88 / 480x180x88mm (w rackmount kit) |
Weight |
Receiver 1.6 KG / Mic 495g |
