CABLE, USB/RS232 CONV, WIRE-END 3V3 1.8M
Accessory Type: USB to RS232 Cable
The USB_RS232 cables are a family of USB to RS232 levels serial UART converter cables incorporatingFTDI’s FT232R USB to serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a RS232 level serial UART interface to USB.

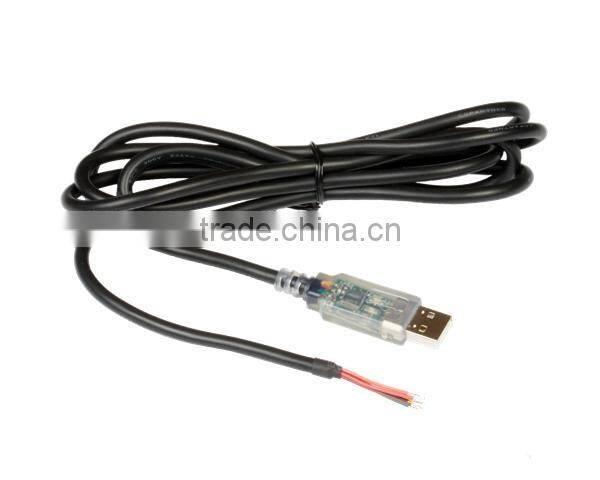

Each USB-RS232 cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The integrated electronics also include the RS232 level shifter plus Tx and Rx
LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified). The other end of the cable is bare, tinned wire ended connections by default, but can be customised using different connectors to support various applications.
Cables are FCC, CE, RoHS compliant.
| Part Number | FTDI Chipset | UART Connector Type | Max UART Baud Rate | Cable Length |
Additional Voltage Output Level (If available) |
| USB-RS232-WE-1800-BT_0.0 | FT232R | Wire-ended | 1 Mbaud | 1.8m | 0V |
| USB-RS232-WE-1800-BT_5.0 | FT232R | Wire-ended | 1 Mbaud | 1.8m | 5V |
| USB-RS232-WE-1800-BT_3.3 | FT232R | Wire-ended | 1 Mbaud | 1.8m | 3.3V |
| USB-RS232-WE-5000-BT_0.0 | FT232R | Wire-ended | 1 Mbaud | 5m | 0V |
| USB-RS232-WE-5000-BT_5.0 | FT232R | Wire-ended | 1 Mbaud | 5m | 5V |
| USB-RS232-WE-5000-BT_3.3 | FT232R | Wire-ended | 1 Mbaud | 5m | 3.3V |
|
USB-RS232-PCB (PCB only) |
FT232R | - | 1 Mbaud | USB connector with PCB only | Default configuration - 0V |
Product Information
- Baud Rate: 1Mbaud
- Cable Length - Imperial: 6ft
- Cable Length - Metric: 1.8m
- Chip Type: FT232R
- Conversion Type: USB to RS232 Converter
- Converter Connector Type: Free / Stripped End
- Features: USB Signaling and Protocols
- For Use With: USB to RS232 Serial Converter
- SVHC: To Be Advised
Description
The USB-RS232-WE-1800-BT-0.0 is an USB to RS232 levels serial UART converter cable with 1.8m cable length and 0V power supply output. It incorporates FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with a RS232 level serial UART interface to USB. It contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into USB connector end of cable. The integrated electronics also include the RS232 level shifter plus Tx and Rx LEDs which give a visual indication of traffic on the cable. The other end of the cable is bare, tinned wire ended connections by default. The USB side of the cable is USB powered and USB 2.0 full speed compatible. The cable supports the FTDIChip-ID, with a unique USB serial number programmed into the FT232R. The USB to RS232 cables require USB drivers, which are used to make the FT232R in the cable appear as a virtual COM port (VCP).
Features:
- Black cable and transparent USB connector
- Entire USB protocol handled by the electronics in the cable USB
- EIA/TIA-232 and V.28/V.24 communication interface with low power requirements
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/space/no parity
- Internal EEPROM with user writeable area
- Data transfer rates from 300baud to 1Mbaud
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- ESD protection for RS232 I/O's
- Fully assisted hardware (RTS#/CTS#) or X-on/X-off software handshaking
Applications:
- Communications & Networking
- Sensing & Instrumentation
- Industrial
- Security
- Automotive
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
