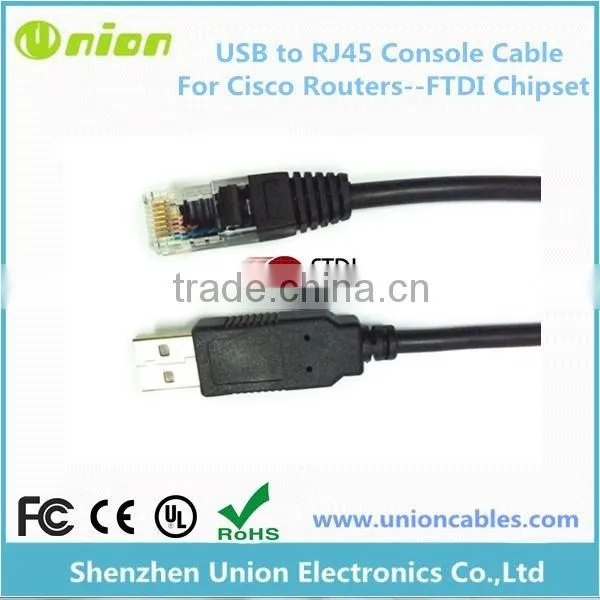

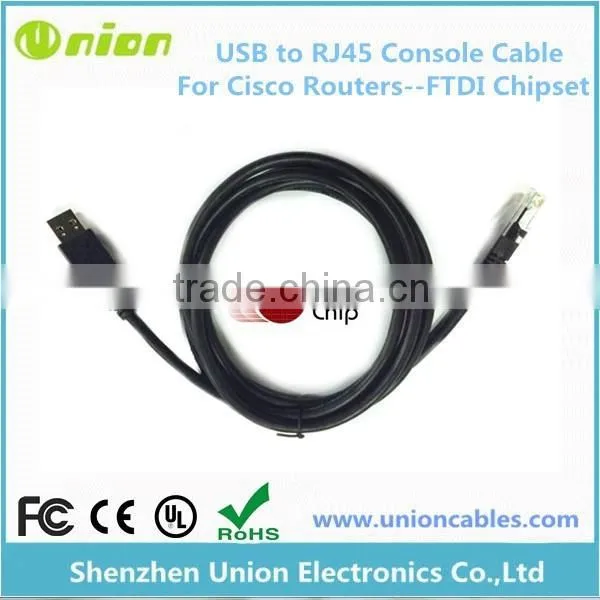

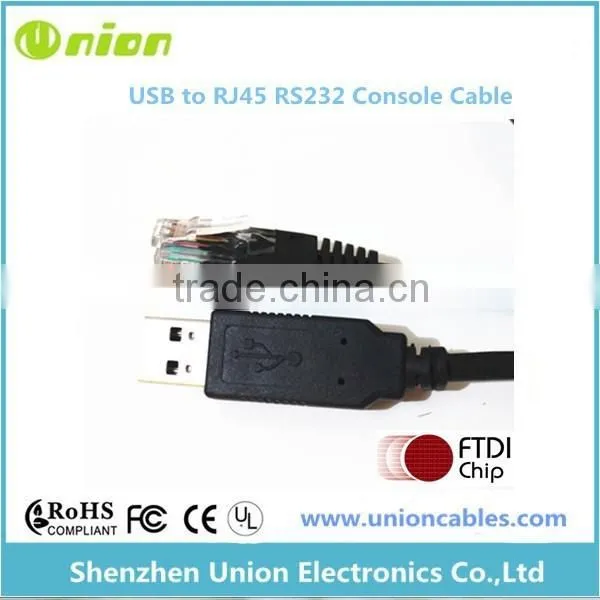

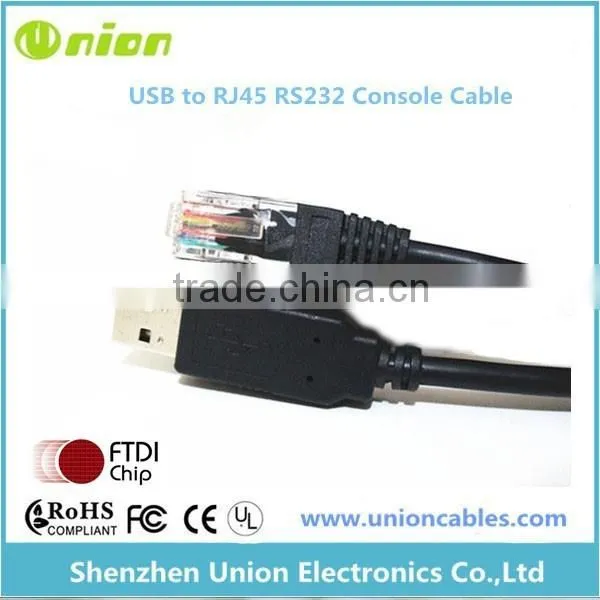

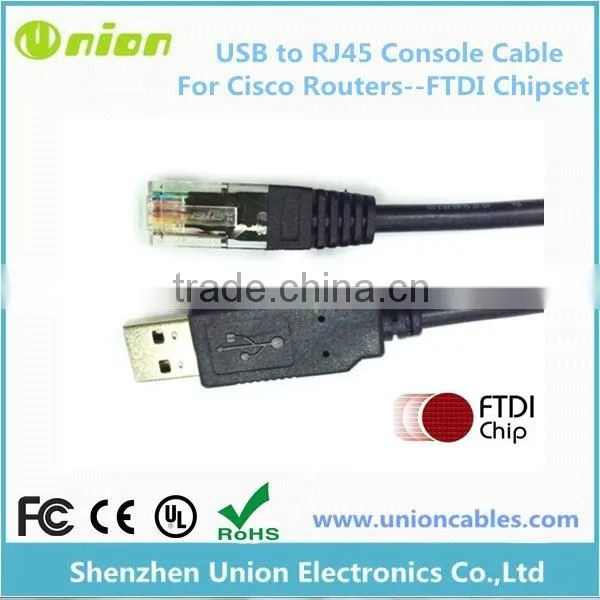

FTDI USB to Serial RJ45 Cable for Console
- 5000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
-
Special cables and wires for airport technology
-
This temperature probe is versatile due to its design and high temperature resistance.
-
We manufacture cable assemblies according to your special requirements.
-
DNV-GL Type Approval, suitable for offshore applications, extrem highly winding and unwinding strength, small outer diameter
-
The silicone connection cable 4 x 2 x 0.22 msqm is especially used as a connection between laptop and thermo module.
-
This Multi Bus Cable with PUR outer sheath, moulded socket, and male connector is especially suited for robots.
Product Details
| Brand Name: | Union | Model Number: | UC-USB-RJ45 | Place of Origin: | Guangdong, China |
| Interface Type: | USB | Use: | Other, router |
Product Description
This convenient serial to USB to RS232 console cable enables you to connect your PC directly to the console port of your Cisco or similar router.
- Two cables in one, Less clutter in your network tool bag!
- Combines a USB to serial/RS232 converter and a console 'rollover' cable for Cisco routers
- Configure your router with just one cable, direct from a USB port
- Length approx 1.7m/5ft 6ins (if required, you can add a USB extension cable up to a total of 5m long)
- Maximum RS232 speed 500kbaud
- USB 2.0 (1.1 compatible)
Product Features:
1.The RJ45 connector can also be adapted to DB9 via RJ45-to-DB9 adaptors.
2.This USB cable has an embedded FTDI 232 and RS232 level shifter to produce true RS232 levels.
( Chipset: FT232RL+ZT213)
3.USB to Serial cable, RJ45 presentation and pinouts for direct connection to Cisco and other network equipment serial console ports.
4.Pinouts for this cable RJ45 end are:
Pin1=CTS
Pin2=DSR
Pin3=RX
Pin4=Ground
Pin5=Ground
Pin6 = TX
Pin7 = DTR
Pin8 = RTS
5.Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS.
6. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity .
7.Supports hardware flow control used to implement the CISCO break sequence
8. USB 2.0 Full Speed compatible
_____________________________________________________________________________
Benefits:
1.No more cables & adapters to buy and/or make to get it working
2.No more DB-9 Adapters
3.No more Mickey Mouse Prolific driver problems
4.No more fake Prolific chips
32 and 64 bit operating systems are both supporter
| |
| |
| |
Standard packaging size: 43.5*34*21cm
200pcs in one carton
Customised packing and length based on the quantity
What We Can Do:
1. All of our products have proceeded aging test before shipment and we guarantee to use
our products safety.
2. Support imprint your Logo on products and let your Logo shine anywhere.
3. OEM/OEM orders are warmly welcome!
Warranty and Return:
1. All products and accessoried have been tested by 3 times before ship out.
2. All products have 1 year warranty.If there is any man-made problem, we will replace or
repair for you freely.
3. We own the best after-sale service.If any problems happen, our team will do our best to
solve for customers.
Shenzhen Union Electronics Co.,Ltd is one of the leading suppliers who specialized in researching, designing and producing various kinds of Cables & Adapters.
If you have any question about our product, please don't hesitate to Contact US.
