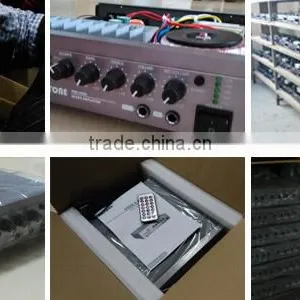

Made in China for Sale Bgm 12v dc Power 30w Mix Mini Pa System Mixer Amplifier Quality Choice
Features
- Built-in MP3 (USB & SD card), FM Tuner and Bluetooth audio sources
- 4 audio sources for selection (MP3/Tuner, Bluetooth and AUX Inputx 2)
- RMS power 30W
- Microphone input x 1
- Volume control for treble, bass, master and microphone
- Reminder chime
- Remote control for MP3 player
- AC 220~240V (Asian or European power) or 110V (for American power) & DC 12V
- Line out for external amplifier
- Speaker output 4-16 ohm, 70V and 100V
- Compact design, able to set up on desk or table
- Economical series with best cost-effective performance
Product Description

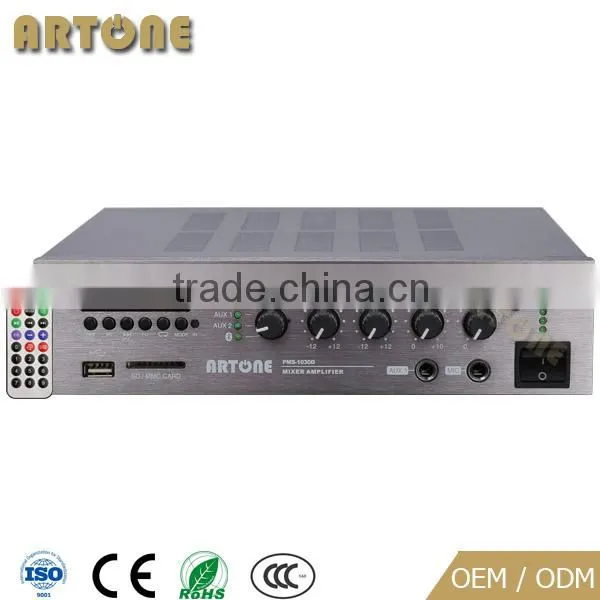

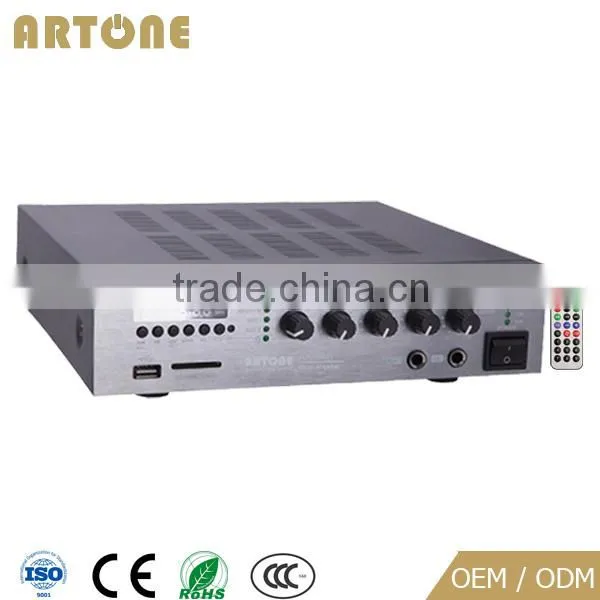

The Multisource Mixer Amplifier PMS-1030D is designed in compact and economic, have power rating at 30W-80W. They are featured of 4 audio source inputs, two of which are aux inputs, one is MP3/FM input and one is bluetooth player. One microphone input on front panel allows paging during the background music is playing.
Individual volume controls are provided for treble, bass and Mic, master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16 ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temperature.
Specification
| Model No. | PMS-1030D USB FM Radio Bluetooth 12V PA Audio Mixing Power Mini Amplifier |
| Power and Power Tap | 30W |

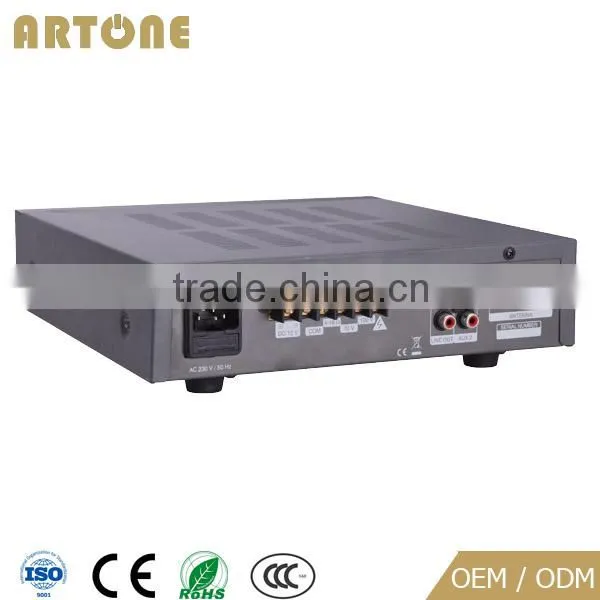

| Speaker Outputs | 4-16Ω, 70V, 100V |
| Input Sensitivity | Mic: 5mV/600Ω unbalanced 6.3mm phone jack inputAUX:350mV/10KΩ RCA input |
| Output Sensitivity & Impedance | 1000mV/470Ω, Unbalanced RCA output |
| Frequency Response | 50-16KHz (+1dB, -1dB) |
| S/N Ratio | Mic:66dB / AUX:80dB |
| THD | Less than 0.1% at 1KHz, 1/3 rated power |
| Audio Source | MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
| Cooling Method | Fan cooling |
| Protection | High temp, overload & short-circuit |
| Power Supply | 220V-240V 50/60Hz or 110V & DC 12V |
| Power Consumption | 50W |
| Material and Finish | Alu panel, steel case |
| Dimension | 245 x 240 x 70 mm |
| Weight | 4.5KG |
