Help CenterPMS-3180 180W 3 Zone pa Bluetooth Signal Amplifier With USB/SD/FM Tuner
Related Products
-
PMS-3180 180W 3 Zone Bluetooth Module USB/SD/FM/mp3 AmplifierUS$ 109.9 - 128MOQ: 1 Piece -
PMS-3300 300W 3 Zone pa Bluetooth Signal Amplifier With USB/SD/FM TunerUS$ 109.9 - 128MOQ: 1 Piece
-
PMS-3300 300W 3 Zone SD FM Mp3 Bluetooth USB Signal Microphone Audio Power AmplifierUS$ 109.9 - 128MOQ: 1 Piece
-
PMS-3300 300W 3 Zone pa Bluetooth in Wall AmplifierUS$ 109.9 - 128MOQ: 1 Piece
-
PMS-3300 300W 3 Zone USB/SD/FM/mp3/bluetooth Stereo Amplifier for pa SystemUS$ 109.9 - 128MOQ: 1 Piece
Features
- Built-in MP3 (USB & SD card), FM Tuner and Bluetooth audio sources
- 4 audio sources for selection (MP3/Tuner, Bluetooth and AUX Inputx 2)
- 3 Zones amplifier, individual volume control for each zone
- RMS power 180W
- Microphone input x 2
- Volume control for treble, bass, master and microphone
- Reminder chime
- Remote control for MP3 player
- AC 220~240V (Asian or European power) or 110V (for American power)
- Line out for external amplifier
- Speaker output 4-16 ohm, 70V and 100V
- Slim design, able to set up on desk or table, also available for mounting on cabinet or racks
- Economical series with best cost-effective performance
Description

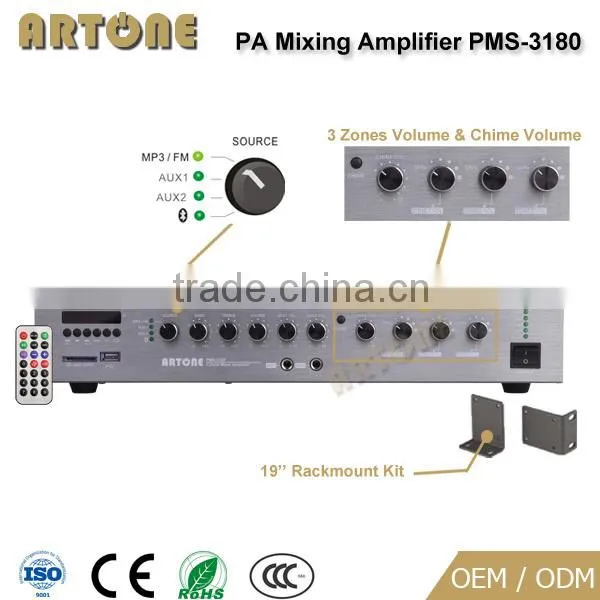

The 3 Zone Multisource Mixer Amplifier PMS-3180 is designed in slim and economic, have power rating at 180W. They are featured of 4 audio source inputs, two of which are aux inputs, one is MP3/FM input and one is bluetooth player. two microphone inputs on front panel allows paging during the background music is play to 3 zones.
Individual volume controls are provided for treble, bass and Mic, 3 zones and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16 ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temperature.
Application and Use Places
ARTONE 3 Zone Multisource Mixer Amplifier PMS-3180 is ideal to use in commercial places like shops, stores, classroom, workshop, offices, church, conference, wine bar, restaurants or any room which is less than 800 square meter, sufficient use for background music and give speech.
The PMS-3180 has as many as 4 audio source inputs, MP3 (USB or SD card), FM Tuner, Bluetooth and 2 AUX inputs to select from, plug and play, easy and quick to set up a 3 zone pa system for your places, fulfill the space with music and announcement.
Specification
| Model No. | PMS-3180 |
| Power and Power Tap | 180W |
| Speaker Outputs | 4-16Ω, 70V, 100V |
| Input Sensitivity | Mic: 5mV/600Ω unbalanced 6.3mm phone jack inputAUX:350mV/10KΩ RCA input |
| Output Sensitivity & Impedance | 1000mV/470Ω, Unbalanced RCA output |
| Frequency Response | 50-16KHz (+1dB, -1dB) |
| S/N Ratio | Mic:66dB / AUX:80dB |
| THD | Less than 0.1% at 1KHz, 1/3 rated power |
| Audio Source | MP3 (USB/SD), Tuner, Bluetooth, AUX input x 2 |
| Cooling Method | Fan cooling |
| Protection | High temp, overload & short-circuit |
| Power Supply | 220V-240V 50/60Hz or 110V |
| Power Consumption | 300W |
| Material and Finish | Alu panel, steel case |
| Dimension | 485 x 380 x 80 mm |
| Weight |
12KG |
First Packing: Plastic Bag (to prevent it from scratch);
Second Packing: Foam Packing (Anti Vibration or serious shock in transportation)
Third Packing: Carton Box (For easier delivery and selling)
| Product Quality Level | High & Medium Quality Provided |
| Price & Cost | Low price, low profit |
| Service | 7x24 online, OEM/ODM cooperation |
